OERTLI OS 4 - Pedal Handle

2021-03-23 / Rev. 10 VV016042 121
13.9 Pedal handle
VX310079
Quantity
Description
1
Pedal handle

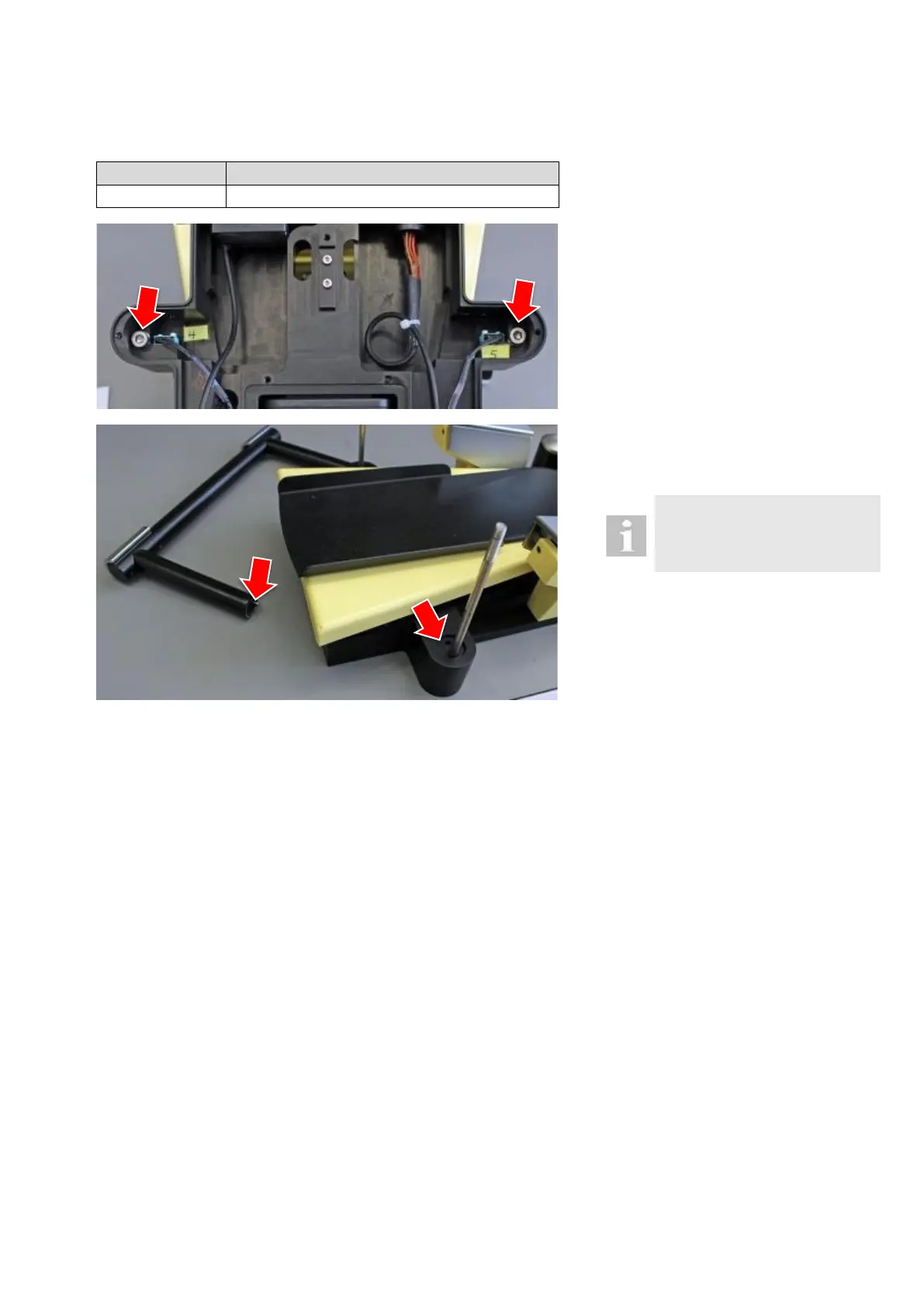

STEP 1:
1.
2.
Open pedal housing according to
the procedure described in 13.1.
Completely loosen the 2 screws that
hold the pedal handle.
STEP 2:
3.
Lift handle off the screws.
When assembling the new han-
dle, make sure that the plungers
fit straight in the bores before you
tighten the screws.
