OERTLI OS 4 - Supply PCB

2021-03-23 / Rev. 10 VV016042 47

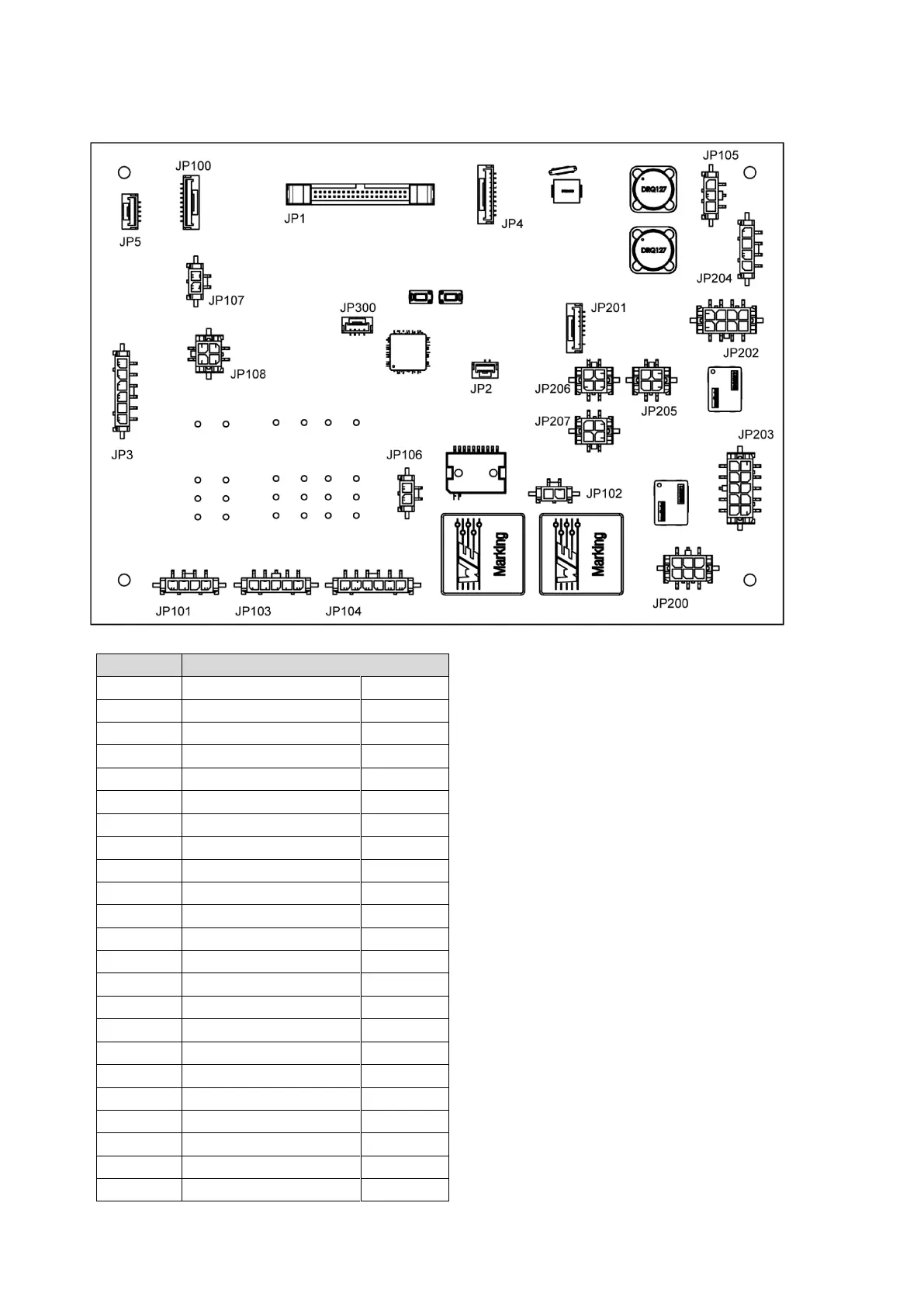

10.4 Supply PCB
(VX541129)
From
To
JP001
Core PCB
JP007
JP002
IV pole potentiometer
-
JP003
Socket CAN pedal
-
JP004
-
-
JP005
-
-
JP100
Laser module
COM
JP101
Socket DRS
-
JP102
IV pole motor
-
JP103
Laser module
DRS
JP104
Laser module
FSW
JP105
Compressor
-
JP106
-
-
JP107
Fan
-
JP108
Valves
-
JP200
Power supply 24VDC
-
JP201
Switch ON/OFF
-
JP202
Carrier board PCB
JP600
JP203
Power supply 12VDC
-
JP204
-
-
JP205
Fluidic PCB
JP005
JP206
Power PCB
JP002
JP207
Core PCB
JP800
JP300
-
-
