OERTLI OS 4 - Pedal Housing from Serial No. 80670099

2021-03-23 / Rev. 10 VV016042 109
13.1.2 Pedal housing from serial no. 80670099

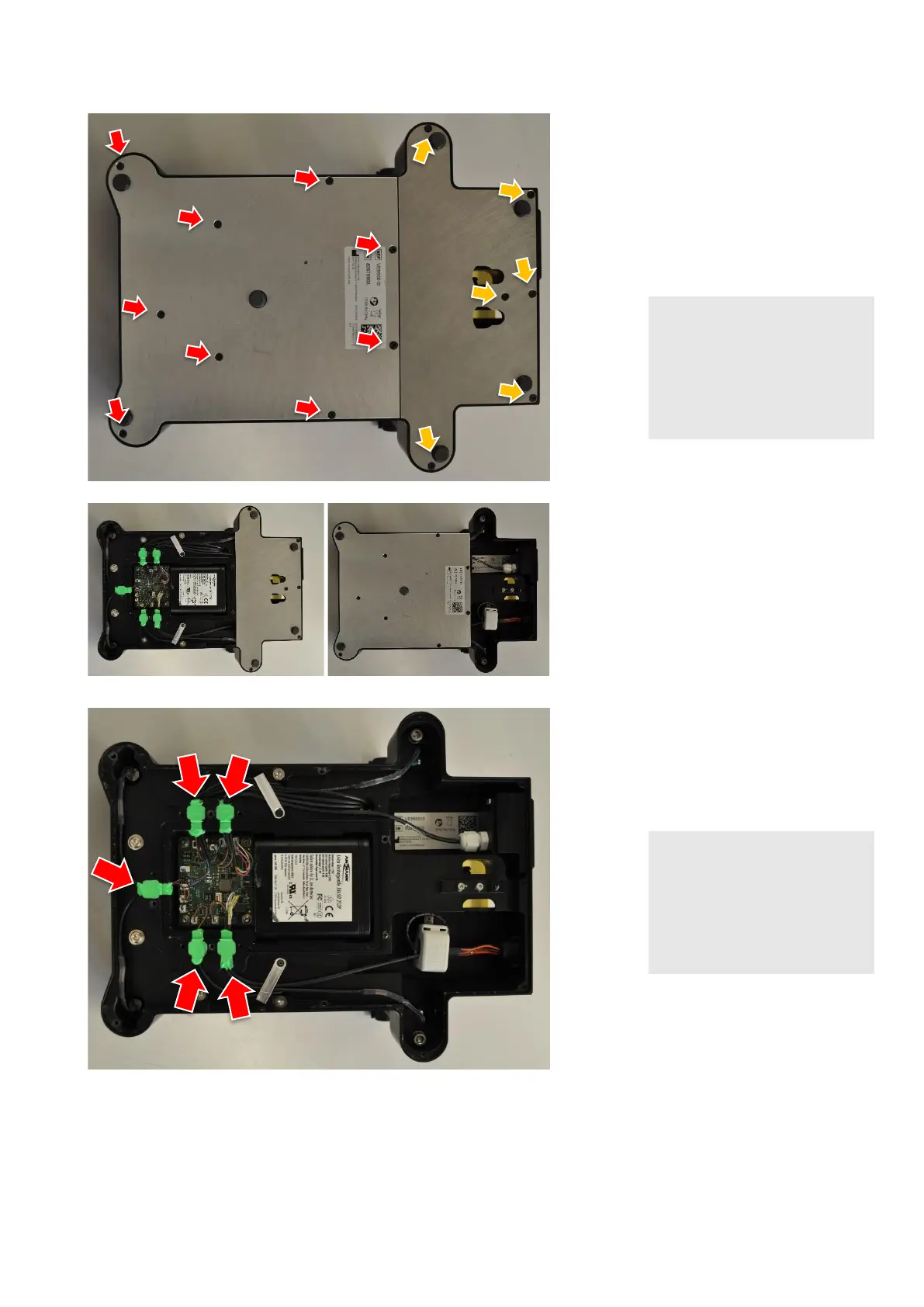

STEP 1:
1.
2.
3.
Dependent on the service case:
Remove all in the picture red and/or
orange marked screws from the
base plate.
Lift the base plate up.
If necessary, remove the gasket
from electronic compartment.
NOTE!
Improper sealing of pedal
Pedal does not correspond to
IPX-class anymore
► After repair, do seal the pe-
dal with the sealing set
(VX102479)
Remove screws (red arrows) Remove screws (orange arrows)
STEP 2:
4.
5.
If necessary, pull the wires out of
the slot.
If necessary, release cable routing.
NOTE!
Improper sealing of pedal
Pedal does not correspond to
IPX-class anymore
► After repair, do seal the pe-
dal with the sealing set
(VX102479)
