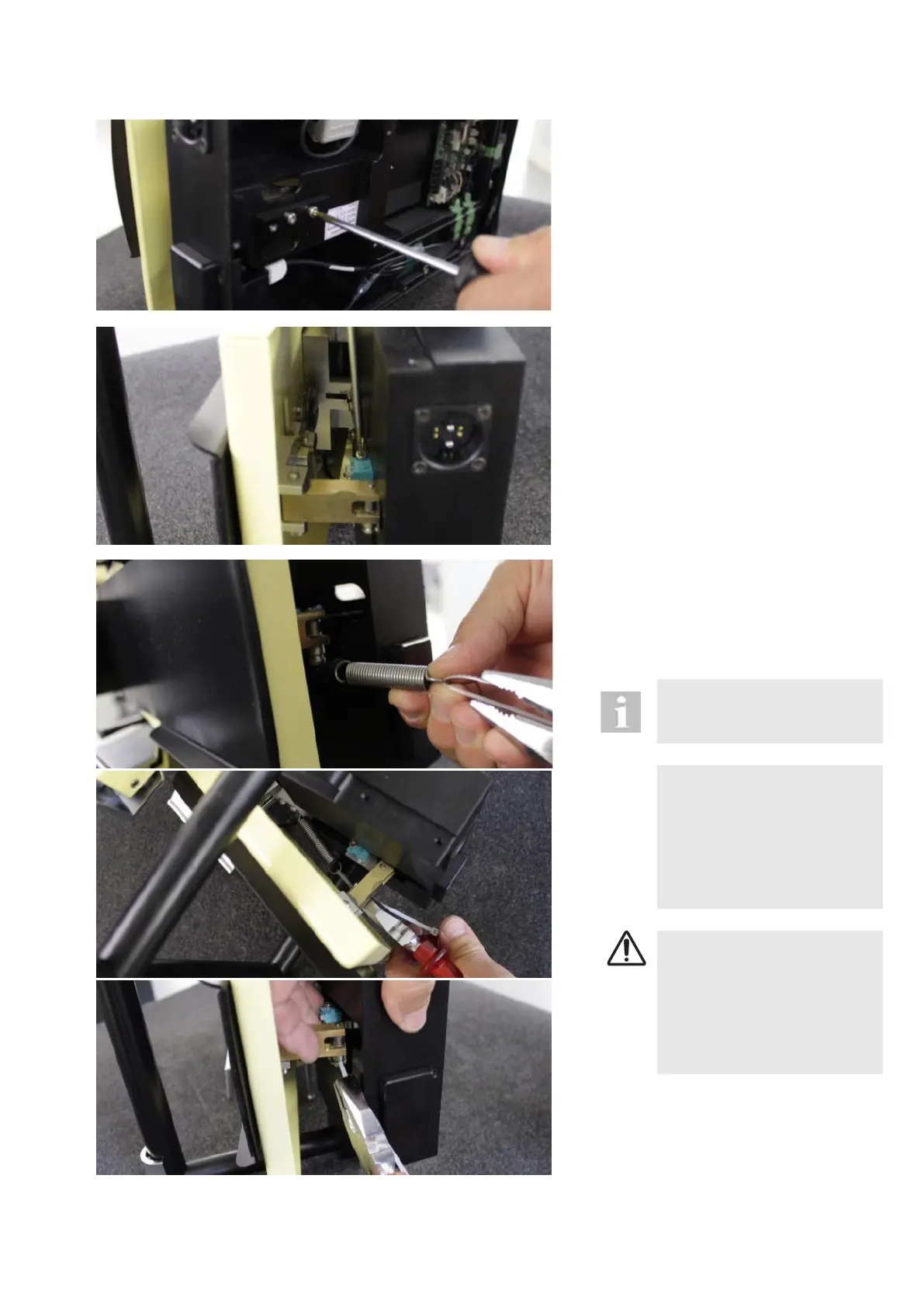

STEP 4:
9.
Loosen two cheese head screws for
the fixation of the connecting rod,
remove one of them.
STEP 5:
10.
11.
Remove cheese head screw at
switch.
Remove second cheese head screw
for fixation of the connecting rod
and remove connecting rod.
a)
b)
c)
STEP 6:
12.
Mount new connecting rod in the re-
verse order of the uninstallation.
Secure three cheese head
screws with screw locking. Hook
in spring with auxiliary means (i.
e. cable tie).
NOTE!
Improper sealing of pedal
Pedal does not correspond to
IPX-class anymore
► After repair, do seal the pe-
dal with the sealing set
(VX102479)
CAUTION!
Incorrect pedal signals trans-
ferred to device
Faulty operation of device
► After this procedure, the pe-
dal needs recalibrating ac-
cording to 7.5.
