STEP 4:
6.
7.

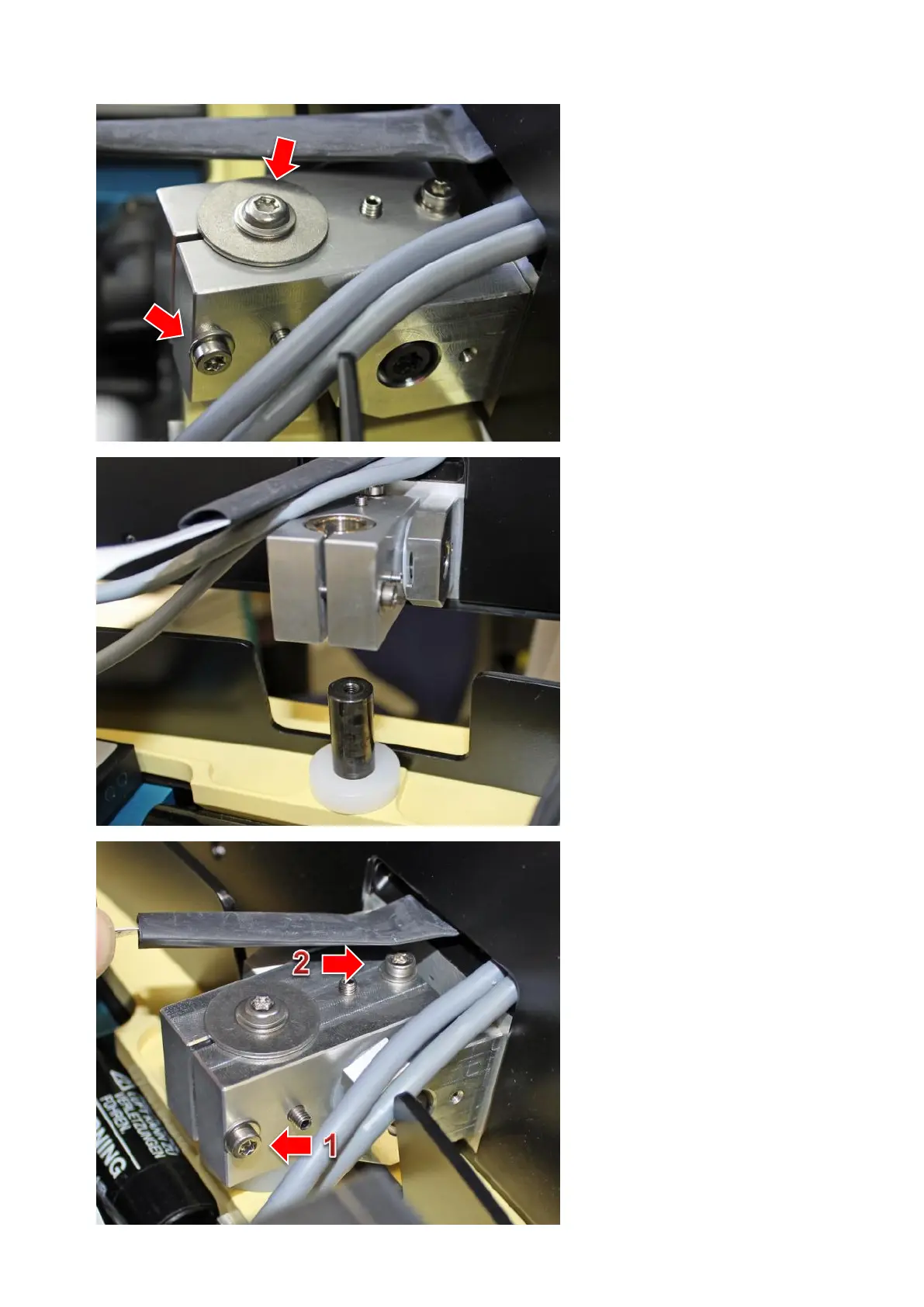

Loosen the screw on the side of the
bracket.
Remove the screw and washer from
the top of the bracket.
STEP 5:
8.
Lift the complete control unit from
the pivot.
STEP 6:
9.
ASSEMBLING
The horizontal pivot point is derived
from screw 1, the vertical pivot point
from screw 2.
Screw 1: horizontal pivot point
Screw 2: vertical pivot point
