7. TROUBLESHOOTING PROCEDURES

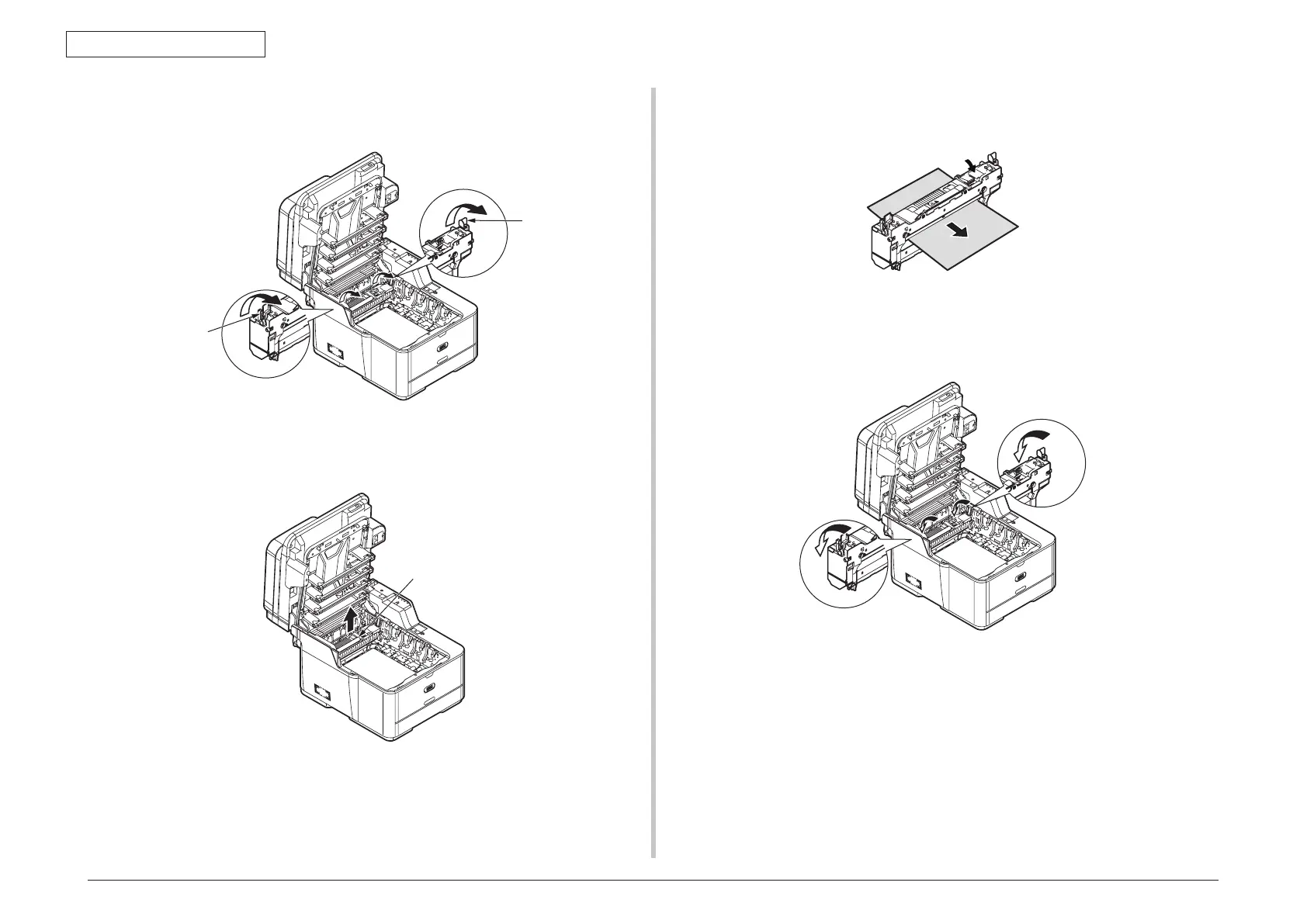

(5) Remove any paper from the belt unit.
(6) Pull the locking levers on each side of the fuser unit to the "unlock" position.
(7) Hold the fuser unit handle and lift the fuser unit out of the MFP.
(8) While pushing the jam release lever of the fuser unit, gently pull jammed paper
directly outward.
(9) Hold the fuser unit handle and place the fuser unit into the MFP.
(10) Push the locking levers on each side of the fuser unit to the 'lock' position.
(11) Hold the blue handles of the image drum unit with both hands and place it into the
MFP.
(12) Close the top cover and scanner unit.
