EnForcer™ SCR Service Manual I.B. 1561
6
CONNECTING INPUT POWER
WARNING:
Make sure the disconnect is in the OFF position and the battery is disconnected before connecting the
input power to the terminals of the charger.
Connect the input power to the appropriate terminals, including ground. Follow your local electrical or National Electric
Code in making these connections.

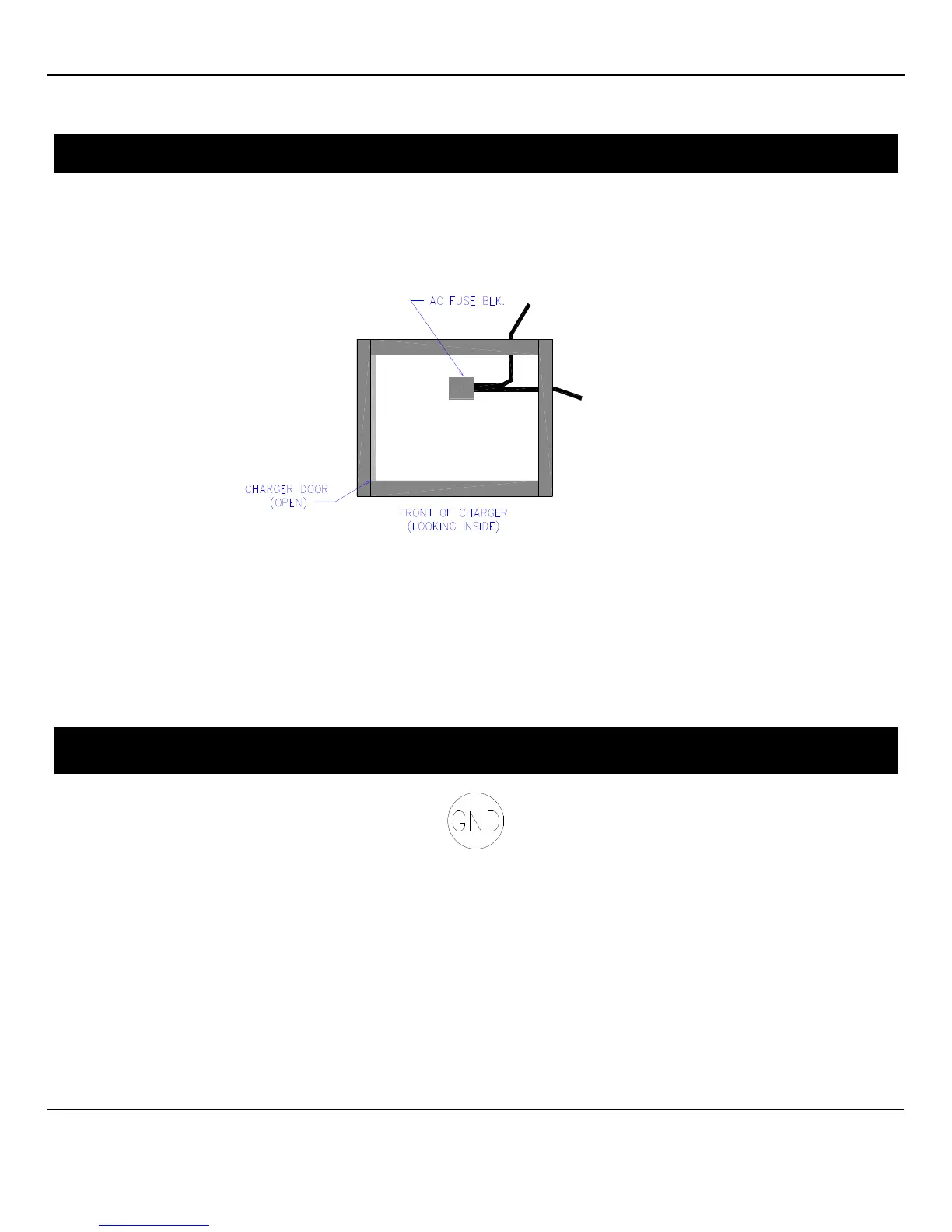

The figure that follows shows both the top and right side installation options for routing the incoming power.
IMPORTANT: When the AC Disconnect Switch is factory installed connect the input power to the Switch instead of the
AC fuse block.
BRANCH CIRCUIT PROTECTION
The user must provide suitable branch circuit protection and a disconnect method from the AC power supply to the
charger to allow for safe servicing. (Even if the charger has an optional factory installed Disconnect Switch)
PLUG POLARITY
The charging cable is connected to the DC output of the charger with the positive lead marked RED. The output polarity
of the charger must be strictly observed when connecting to the battery (read warning above). Improper connection will
open the DC fuse.
GROUNDING THE CHARGER
DANGER:
FAILURE TO GROUND THE CHARGER COULD LEAD TO FATAL ELECTRIC
SHOCK. Follow National Electric Code for ground wire sizing.
Connect a grounding conductor to the lug provided on the horizontal support panel. This lug is marked as shown:
