The Ultimate Ice Resurfacer 57
6.3.1 Blade Level Adjustment
The next step is to adjust the angle of the blade. The blade adjustment crank, located on
the tower to the right of the operator, raises and lowers the blade. The adjustment crank is
turned until the indicator arm completely lls the sight hole at the side of the conditioner
as shown below.

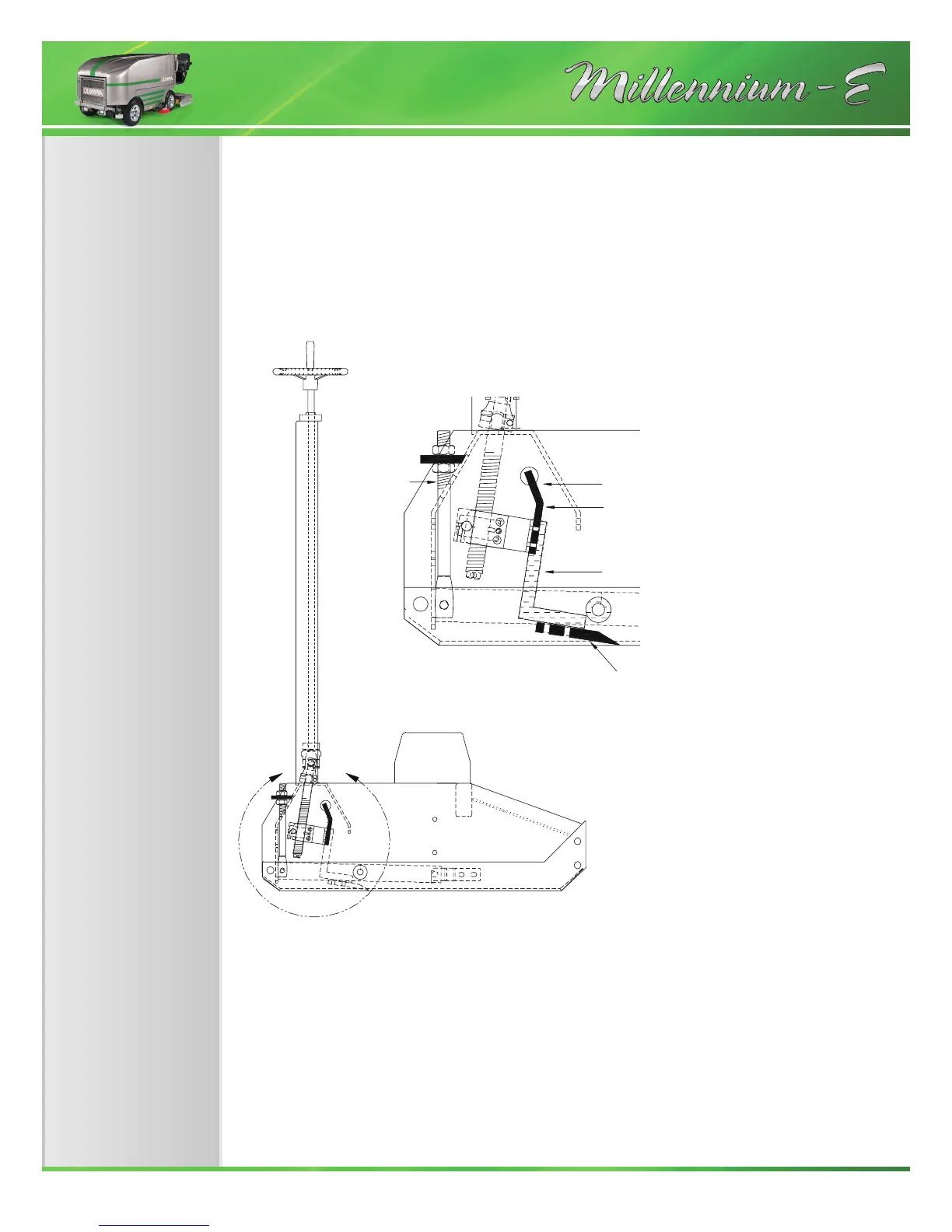

Fig. 6.3: Blade height adjustment
If the sight hole is lled, but the blade is too low or high, go to the rear of the conditioner and
using a 1 1/8” wrench, rst loosen the top nut of the blade level adjusters located on each side
of the rear of the conditioner shown below.
1
2
3
4
5-
Item 1 Sight hole
Item 2 Indicator arm
Item 3 Blade holder
Item 4 Blade
Item 5 Blade level adjuster
