The Ultimate Ice Resurfacer 43
When the solenoid valve is open, a pressure dierence of at least 0.5 bar (7 psi) must prevail
at the valve to ensure safe and speedy switching of the pilot-controlled solenoid. A smaller
valve on a low-pressure supply pipe with a larger water hose therefore works better than a
large valve in a small pipe at low pressure!
5.5 Wash Water Control Panel

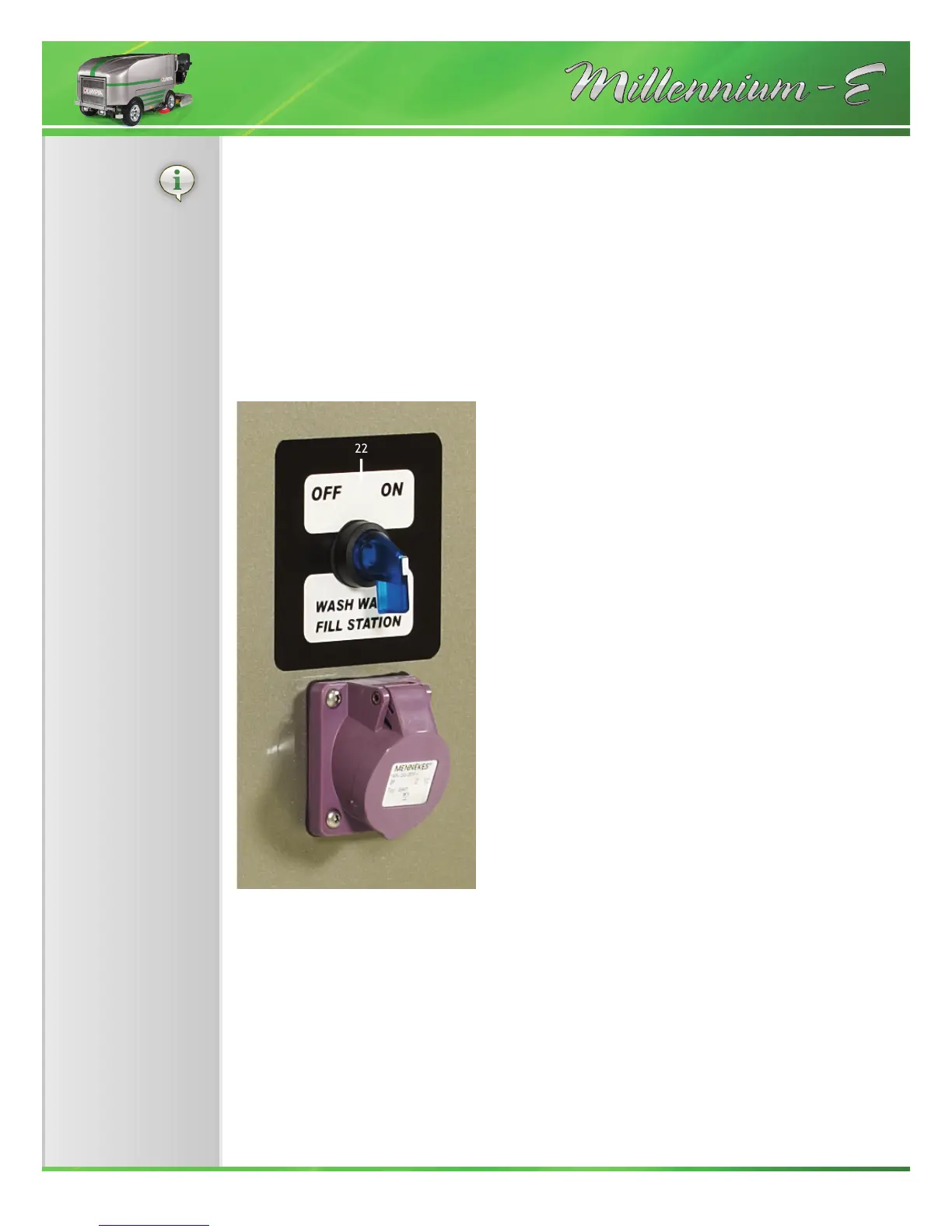

Fig. 5.5: Wash Water control panel
Item 22 Selector switch (illuminated)
This panel controls how much cold water can be put into the ice resurfacers wash water tank.
The ice resurfacer is supplied with an electric water valve, to be mounted onto the water
supply line in the building. Power for this valve is supplied from the ice resurfacer. Once
mounted and wired.
22
