6.3 Blade Installation
1. Insert safety blocks under the conditioner before attempting to work under it.
2. Place the blade on small wood blocks(4) at the rear of the conditioner, remove it from
the wood sheath and install the magnetic protector supplied with the tool kit.
3. Using the blade hook, lift and slide the blade underneath the conditioner and lift
against the bladeholder until the attachment holes line up.
4. Tighten the blade hook thumb screws(2) so that the slide bracket(1) sits on top of the
conditioner.
2
1 -
3
4

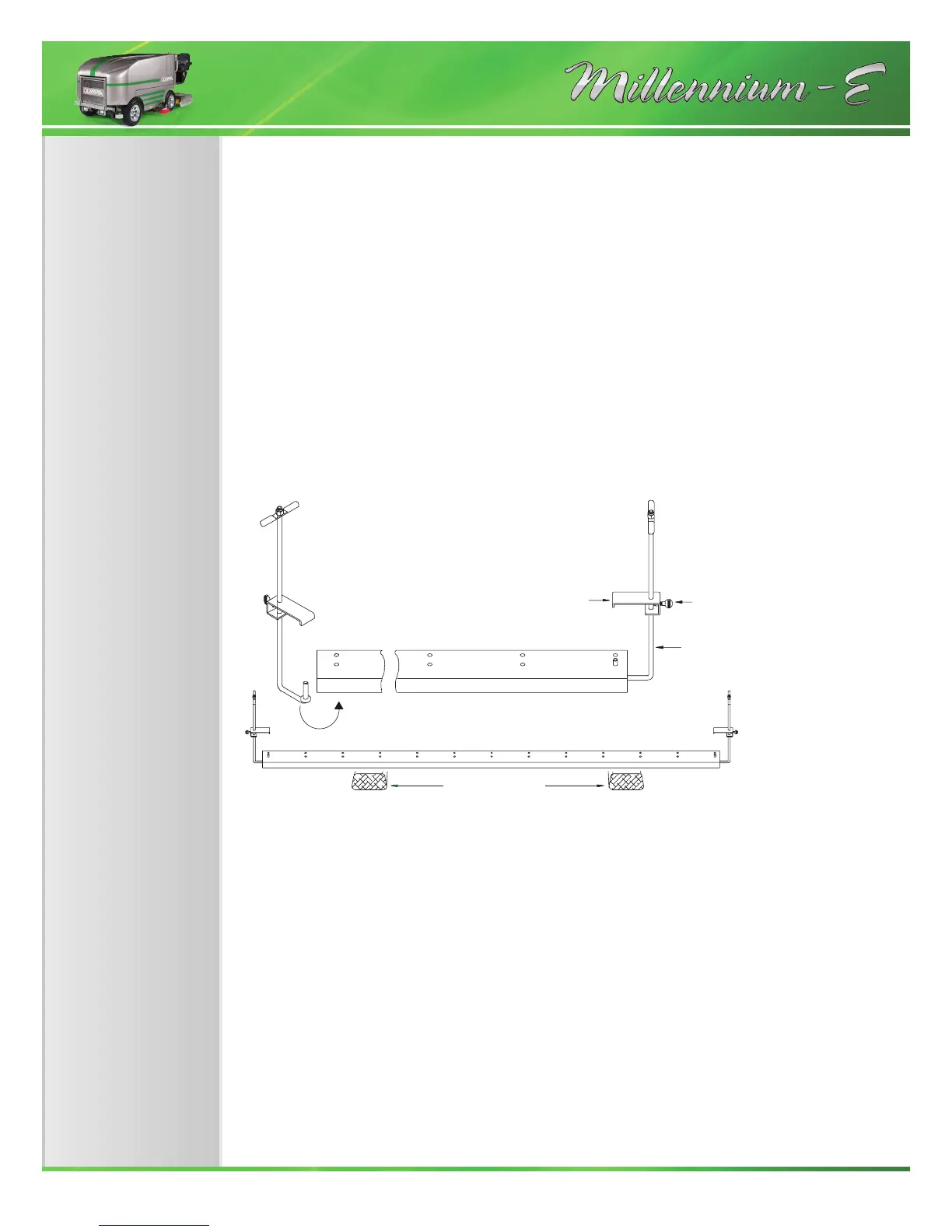

Fig. 6.2: Installing the blade
Item 1 Bracket
Item 2 Thumb screw
Item 3 Blade hook
Item 4 Wooden blocks
