EnForcer™ SCR Service Manual I.B. 1561
9

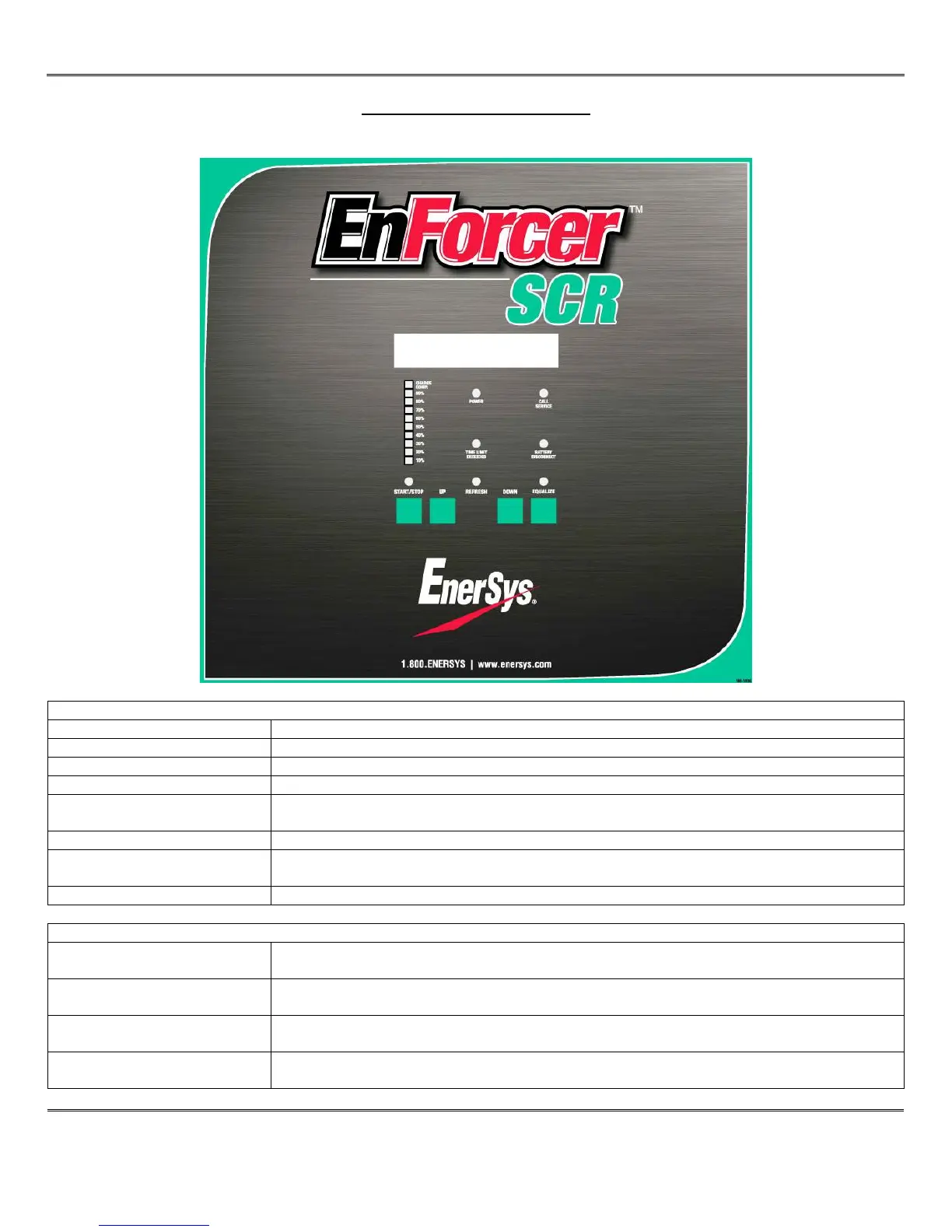

EnForcer™ SCR Features
Front Panel
LED
POWER Light on when control board powered
CALL SERVICE Light on when serious fault occurs during charge cycle, usually requiring field assistance.
TIME LIMIT EXCEEDED Light on when charger time fault occurs
BATTERY DISCONNECTED Light on when battery disconnected during charge cycle before normal termination
START/STOP Light on during charge cycle. Light is off when charger is stopped or charge cycle
terminates
REFRESH Light on during refresh cycle
EQUALIZE Light flashes when an equalize cycle is pending. Light on during and after the actual
equalize cycle. Light is reset when battery is disconnected from charger.
BAR GRAPH Shows capacity returned to battery during charge cycle.
PUSHBUTTONS
START/STOP Stops a charge in progress or restarts a charge that has been stopped. Can also force a
charge cycle by pushing and holding for 5 seconds.
EQUALIZE Will activate the equalize function at any time during the charge cycle. The equalize
button is also used for programming the charger.
UP Used to scroll through charge cycle data when charger is idle. Also used to scroll up
through charger settings in programming mode.
DOWN Used to scroll through charge cycle data when charger is idle. Also used to scroll down
through charger settings in programming mode.
