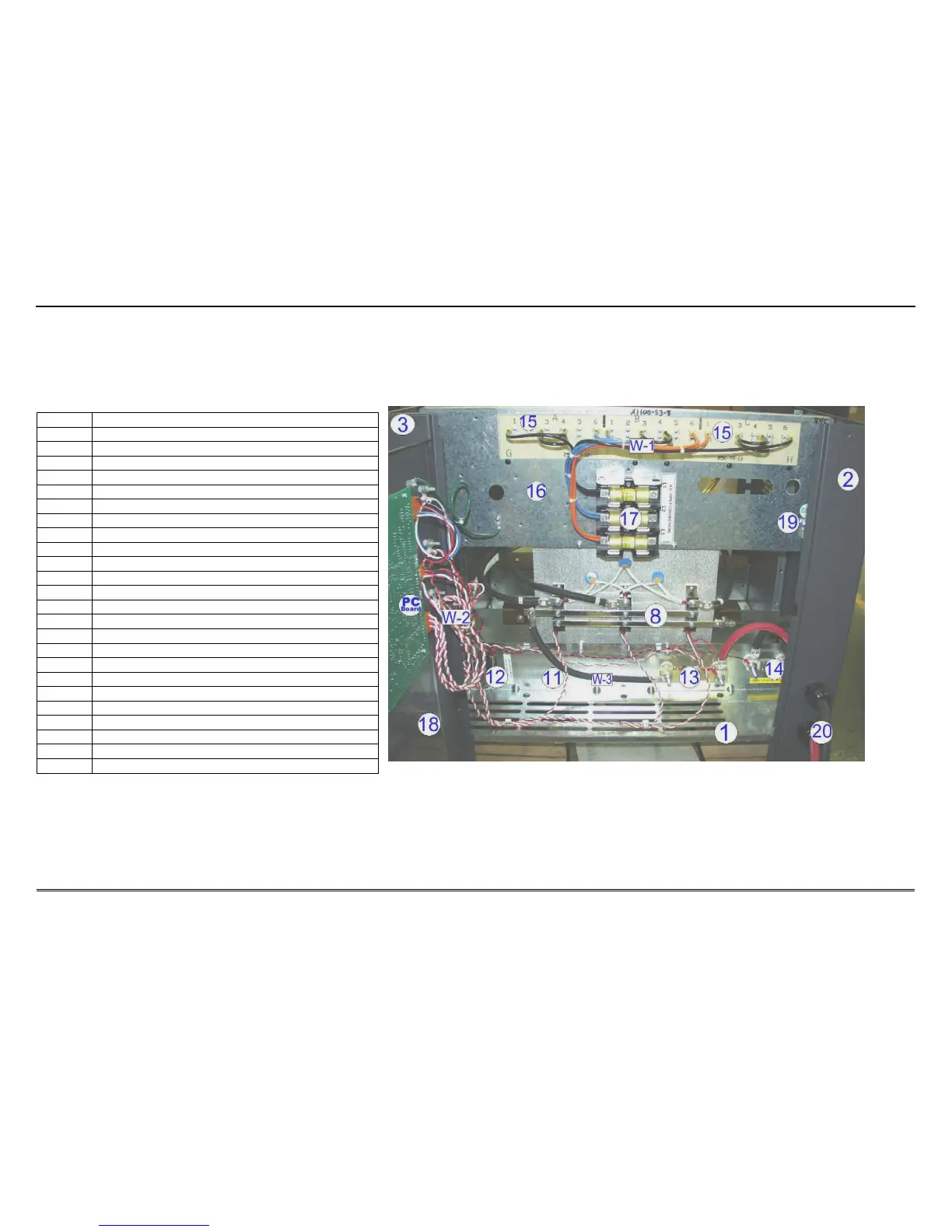

Note: The illustration below identifies the location of some important
components in standard chargers. The component P/N may vary from
charger to charger. (For a P/N, refer to the 'Replacement Parts' tables).
ITEM # DESCRIPTION
1 Cabinet, Base
2 Cabinet, Right side
3 Cabinet, Left side
4 Cabinet, Top/Back
5 Upright
6 Cross Member, Main Transformers
7 Main Transformer
8 Heat Sink Assembly
9 SCR diode/block
10 Buss bar
11 Cross Member, Heat Sink
12 PC Board Fuses
13 Shunt
14 DC Fuse
15 Terminal Board Primary, Main Transformer
15 Terminal Board Primary, Main Transformer
16 Panel, Sub-assembly
17 AC Block / Input Fuses
18 Door
19 Ground Lug
20 DC output cables and clamp
W-1 Wire Group, Primary Voltage
W-2 Wire Group, PC Board
W-3 Cable Connecting Heat Sink & Shunt
