PARTS LIST
Qty. 11860-Series 11870-Series
Key Description Req. Part No. Part No.
1 Screw End Cover (3 Per Kit) 2 91003-0010 –
Screw End Cover (3 Per Kit)) 2 – 91005-0040
2 End Cover 1 11831-0000 12062-0000
3 Gasket 1 890-0000 816-0000
4 Impeller Nitrile, Brass** 1 920-0003 836-0003
5Wearplate 1 7868-0000 2574-0000
6 Body 1 11864-0000 18753-0585
7 Screw Cam (3 Per Kit) 1 91004-0090 91005-0040
8 Cam, Brass 1 934-0000 834-0001
9 Pipe Plug 2 92650-0070 92650-0070
10 Slinger 1 3180-0000 3181-0000
11 Seal (Bearing)* 1 913-0000 817-0000
12 Ball Bearing (Pump) 1 92600-0540 92600-0040
13 Retaining Ring (Brg to Body) 1 18724-0000 18712-0000
14 Retaining Ring (Brg to Shaft) 1 18713-0000 18711-0000
15 Shaft 1 11867-0000 11877-0000
16 Seal (Shaft) 1 96080-0080 6407-0010
17 Roll Pin (Adaptor) 2 – 93100-0160
18 Adaptor 1 – 11876-0000
19 Key (Clutch Drive) 1 91401-0100 91401-0100
20 Clutch Assy. Complete 12 V – 2-A Grooves 1 92300-0030 92300-0030
12 V – 1-B Groove 18753-0493 18753-0493
24 V – 2-A Grooves 92300-0061 92300-0061
24 V – 1-B Groove 18753-0494 18753-0494
32 V – 2-A Grooves – 92300-0050
21 Replacement Field Coil 12 V 98022-0500 98022-0500
24 V 98022-2155 98022-2155
32 V 98022-0510 98022-0510
Service Kit Nitrile Impeller 90118-0003 90062-0003
* Use on pre 2002 models. Date code 01H or earlier.
**Special application model 11860-7001, use Impeller 17937-0001, Service Kit 90118-0001

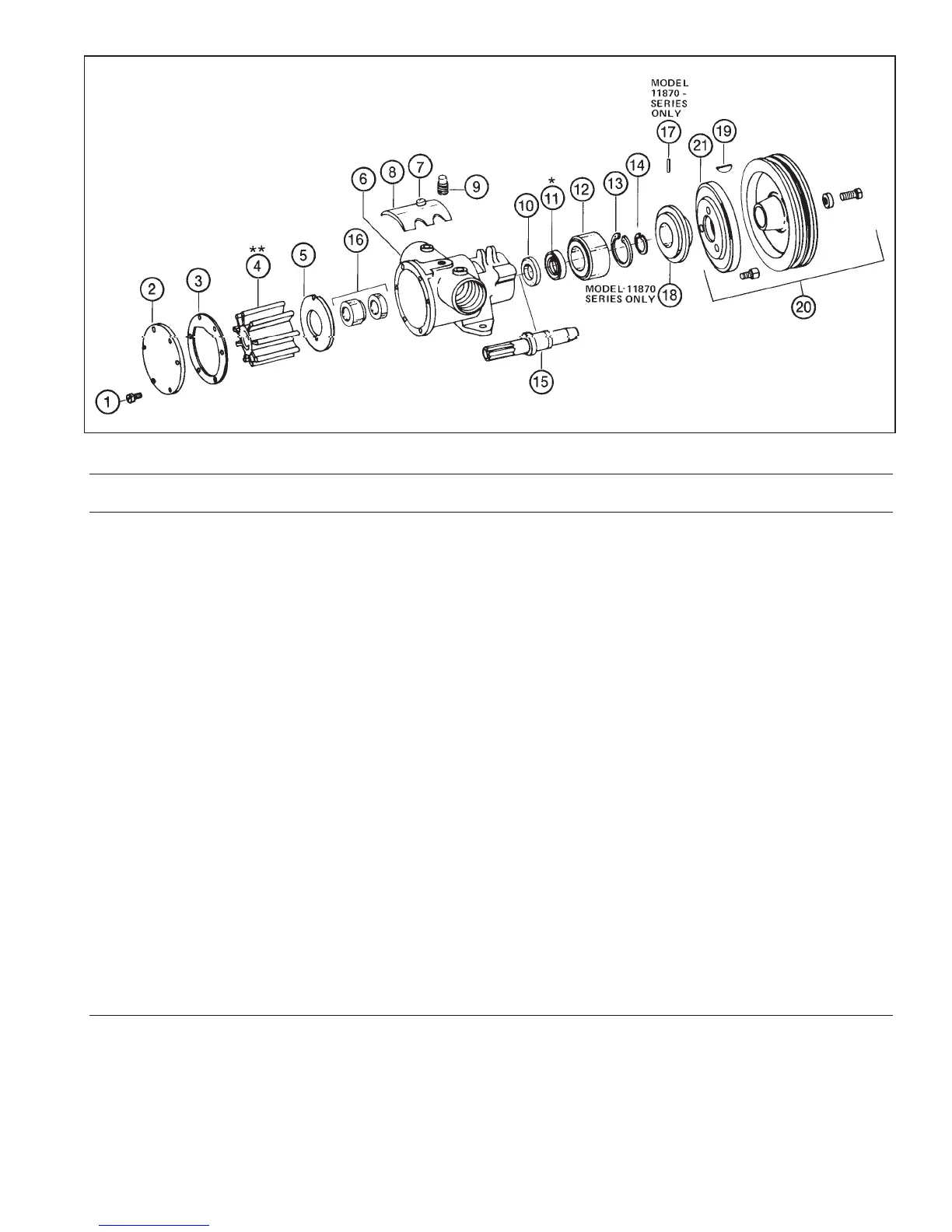

EXPLODED VIEW
