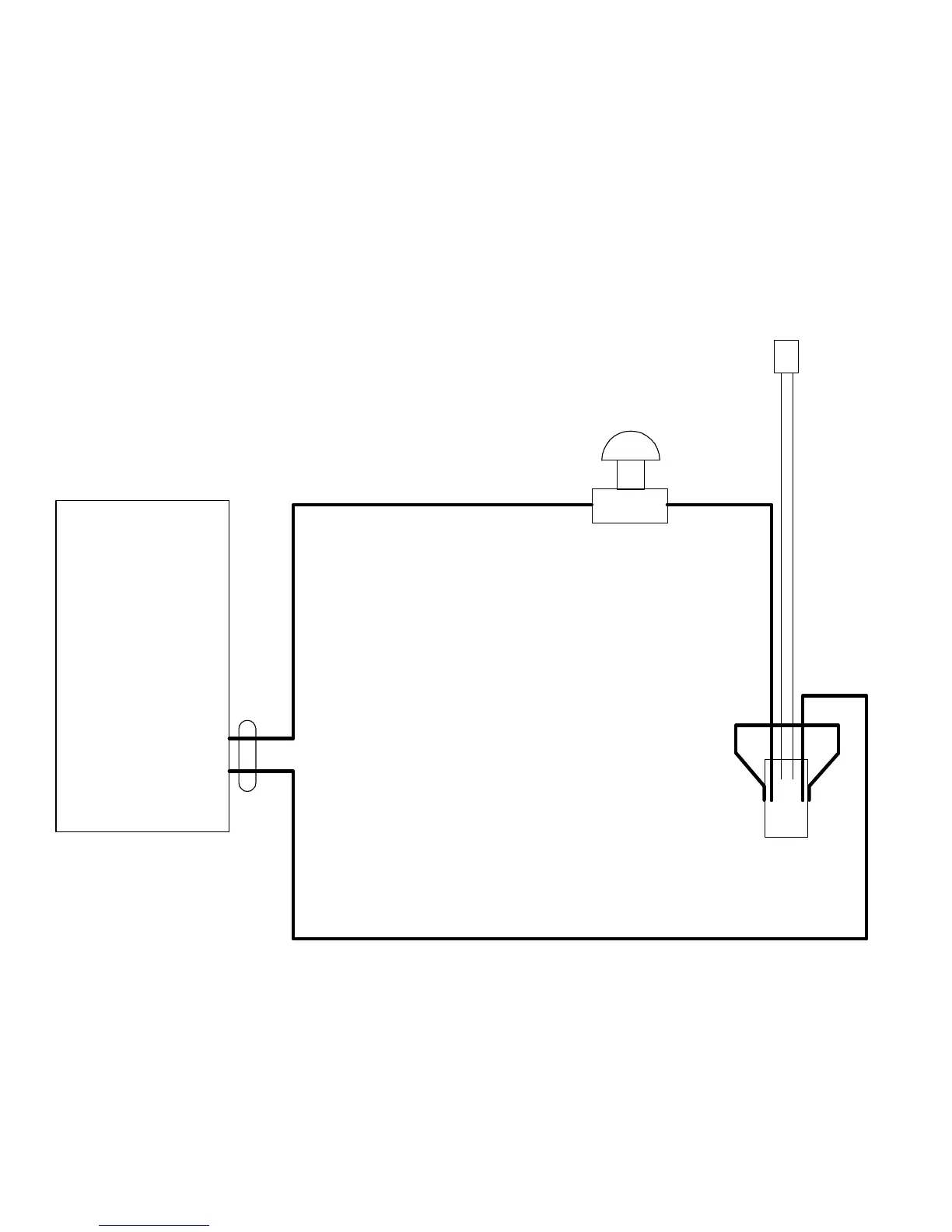

E-Stop connections (2/0)
Main Panel
+ +
+
+
-
-
AWG 2/0 - 270 cm
AWG 2/0 - 420 cm
AWG 2/0 - 190 cm
E-Stop
Main DC
plug (male)
Use 3/4 NPT SKINTOP connector
72 - WH / RD
71 - RD / WH
41
in main panel
Handle
use 5/16" hole lugs
use 5/16" hole lug
use 3/8" hole lug
