The Ultimate Ice Resurfacer 28

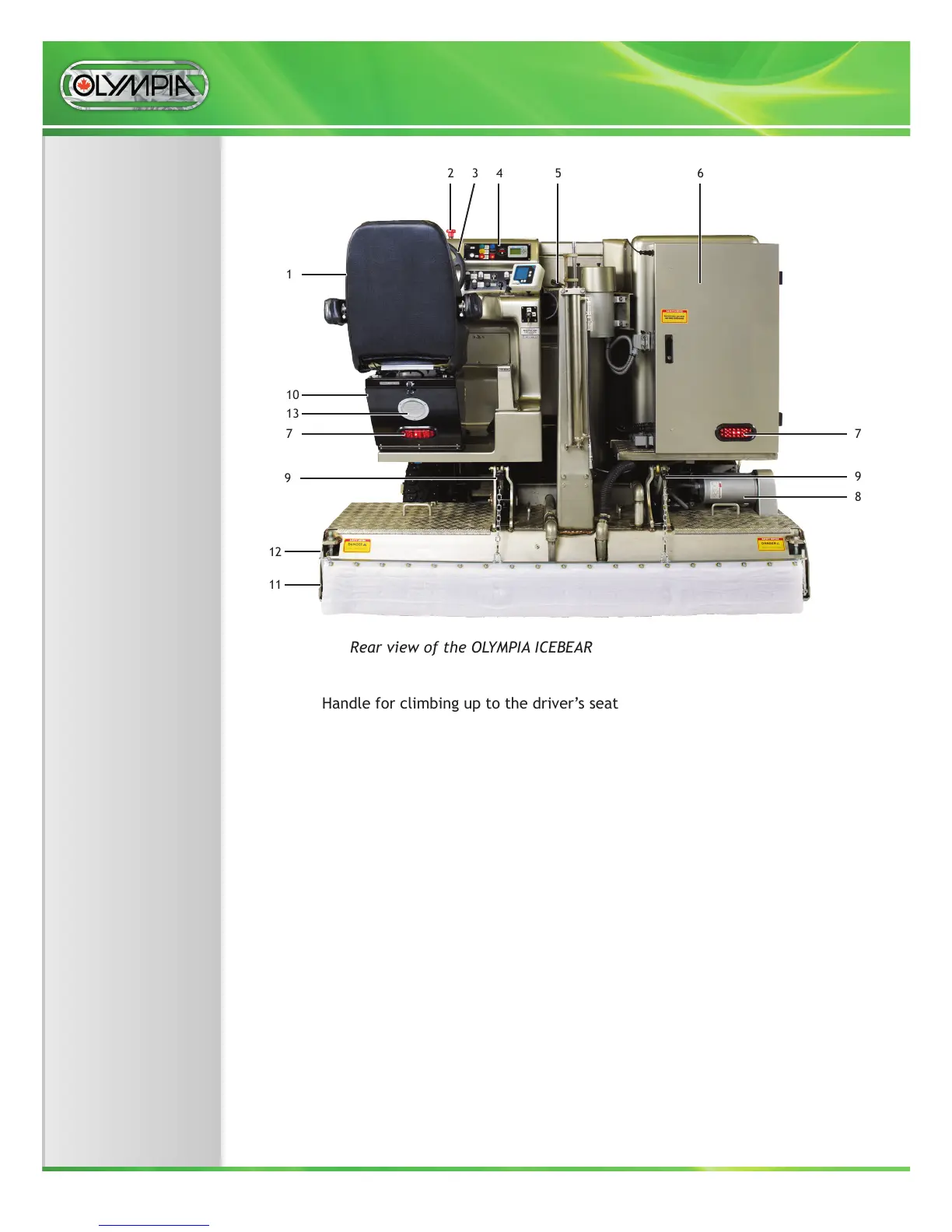

Fig. 4.2: Rear view of the OLYMPIA ICEBEAR
Item 1 Handle for climbing up to the driver’s seat
Item 2 EMERGENCY SHUT OFF switch
Item 3 Steering wheel
Item 4 Top control panel
Item 5 Manual Ice Making Water tap handle
Item 6 Electrical control cabinet door
Item 7 Tail lights
Item 8 Drive motor for the horizontal auger
Item 9 Automatic towel lift
Item 10 Ice making water ll station
Item 11 Spreader cloth
Item 12 Conditioner bumper wheel
Item 13 Reverse Light
3
1
2 4
10
13
7
12
11
5 6
7
8
9
9
