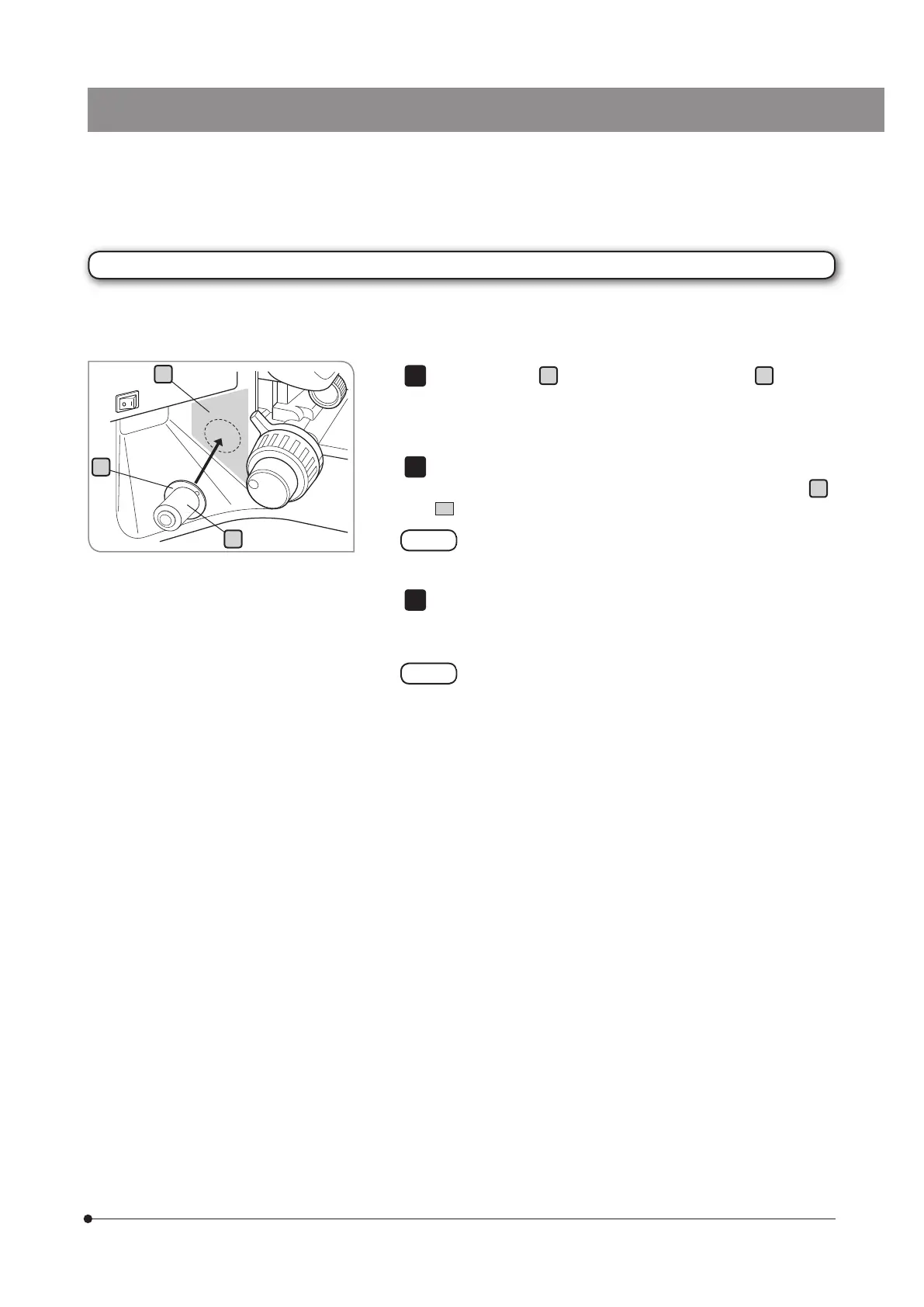

Attaching the hand switch for exposure U-HSEXP
Secure U-HSEXP
a
at the center of the circular plate
b
with the
magnet.
Do not remove the backing sheet of the circular plate until you
decide the position to attach the circular plate.
Decide the attaching position near the right or the left coarse adjusting
knob and also in the area for you to operate the switch easily
c
(
area).
Be careful, if the attaching position is too close to the
coarse adjustment knob, it may collide with the coarse
adjustment knob.
Clean the position to attach the circular plate with absolute alcohol,
remove the backing sheet of the circular plate and attach it by pressing
toward the microscope frame firmly.
Magnetic objects placed near U-HSEXP may cause
malfunctions or damages. Do not place magnetic objects
near U-HSEXP.
· PC
· Cellular phone
· Watch
· Credit card
· ATM card
· Floppy disks
} You cannot record movies with U-HSEXP. Use the [Movie] button in
the control window. (P.36)
1
2
3
} This switch is composed of U-HSEXP (magnet system) and a circular iron plate (adhesive system). Two circular
plates are provided and one of them is a spare.
a
b
c
