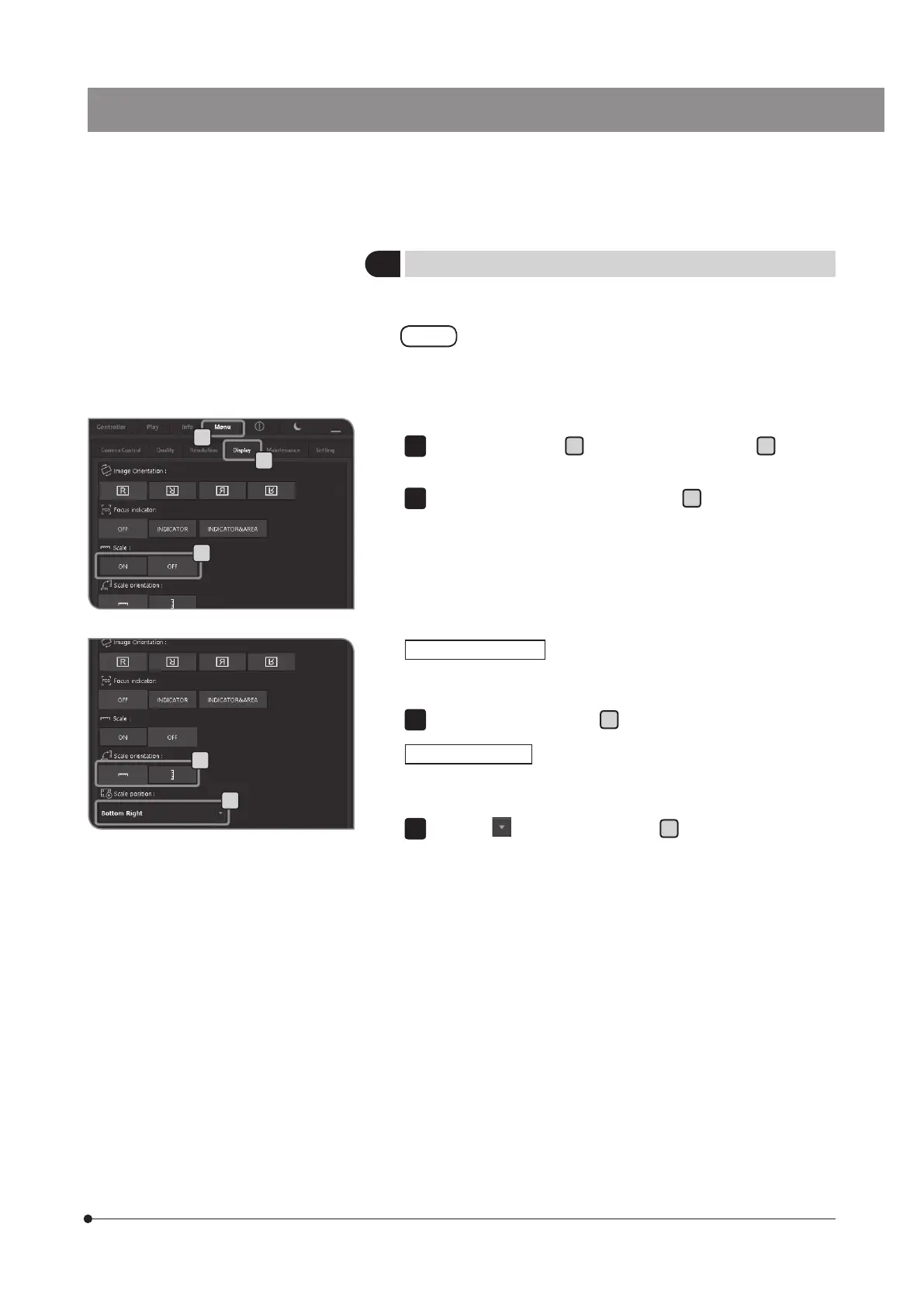

Setting scale display
The scales can be added to the live image and the acquired image.
In order to display the appropriate scale, the adapter
lens magnification, objective magnification and zoom/
magnification changer must be specified. Use the
[Controller] tab for settings. To set the scale display, refer
to "Selecting objective magnification" (P.38) and "Selecting
Zoom magnification / Magnification Changer" (P.39).
Select the [Menu] tab
a
and select the [Display] tab
b
in the tab
displayed.
Press [ON] button or [OFF] button of [Scale]
c
to select Show or Hide.
} You can select displaying the scale only on the live image or
on both the live image and the acquired image. For selection
procedures, refer to "Setting display target of scales and cross lines
(P.76)".
CAUTION
1
2
You can select displaying the scale in vertical orientation or horizontal
orientation facing display window.
Press the [Scale orientation]
d
button to select the scale orientation.
The scale position can be selected from Upper left, Upper right, Lower
left or Lower right.
Press the
button of [Scale position]
e
to select the scale position
in the list.
Setting scale orientation
1
Setting scale position
1
a
b
c
d
e
