M - 11
Example 5: For Write Command of two bytes
data registers: There are only two registers
in this format: Setpoint Deadband (SP.db): Register #21 and Alarm Deadband (AL.db)
Register #22.
Using Example on Section 10.36 of Serial Communication Option Operator’s manual to
write new value of SetPoint Deadband as 6,800 count.
DATA
DEVICE
ADDRESS
FUNCTION
CODE
06
REGISTER
DATA VALUE
(2 valid bytes)
CRC
1 BYTE
01
1BYTE
06
HB
00
LB
21
HB
1A
LB
90
LB
D2
HB
C2

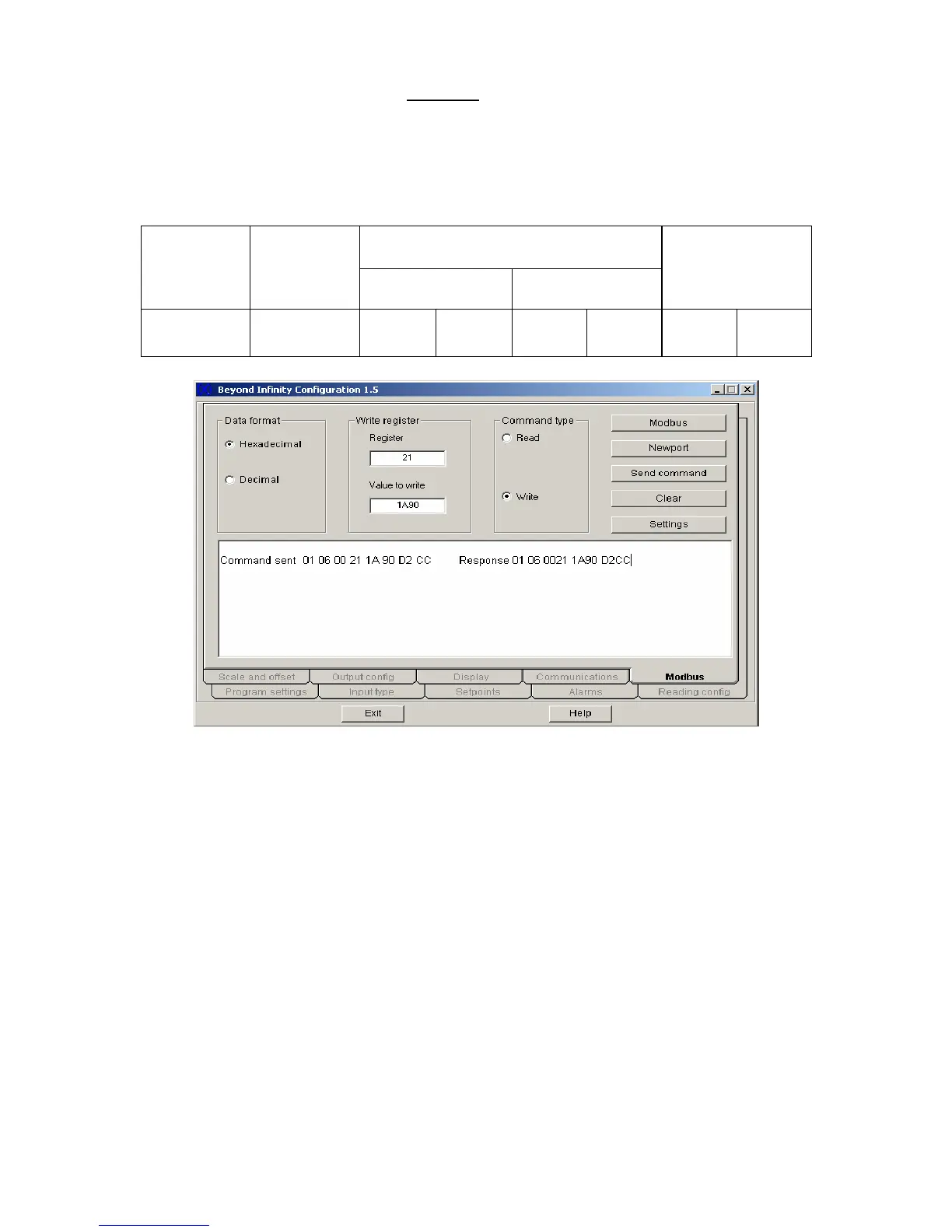

Figure 8.3: Write (2 valid Data bytes) Command Sample via
Infinity Configuration Software.
