Example 4: For Write Command of one byte
data registers: using example on Section &
Table 10.1 of Serial Communication Option Operator’s manual to learn how to modify
Reading configuration (RdG.CNF), sent/responded data string as following:
DATA
DEVICE
ADDRESS
FUNCTION
CODE
06
REGISTER
DATA VALUE
(1valid byte)
CRC
1 BYTE
01
1BYTE
06
HB
00
LB
12
HB
00
LB
14
LB
29
HB
C0

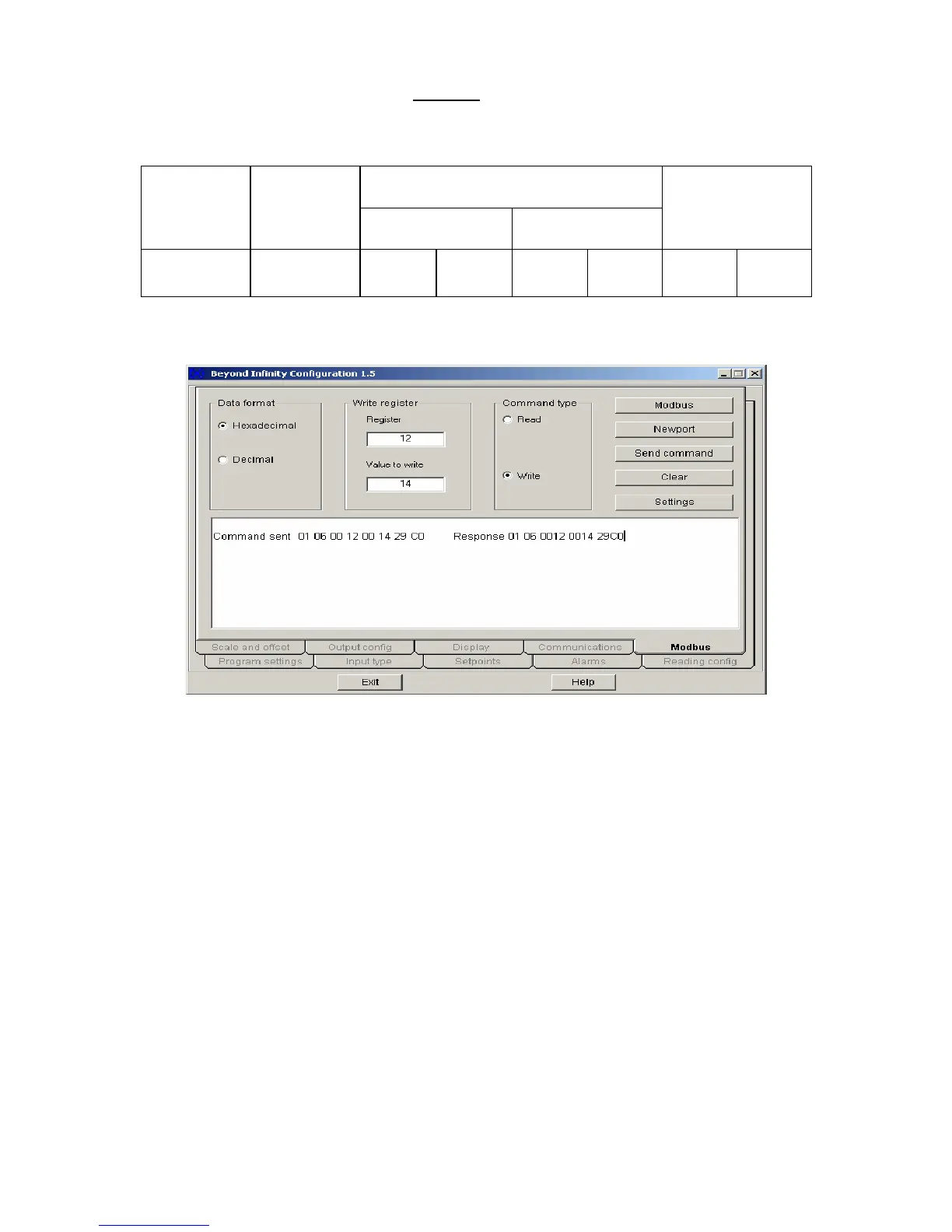

Here is the screenshot of the Example 4:
Figure 8.2: Write (1 valid Data byte) Command Sample via
Infinity Configuration Software.
