© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
OmniRX G4 Service Guide 5-31
Replace the E-Box
8. Connect the audio cable.

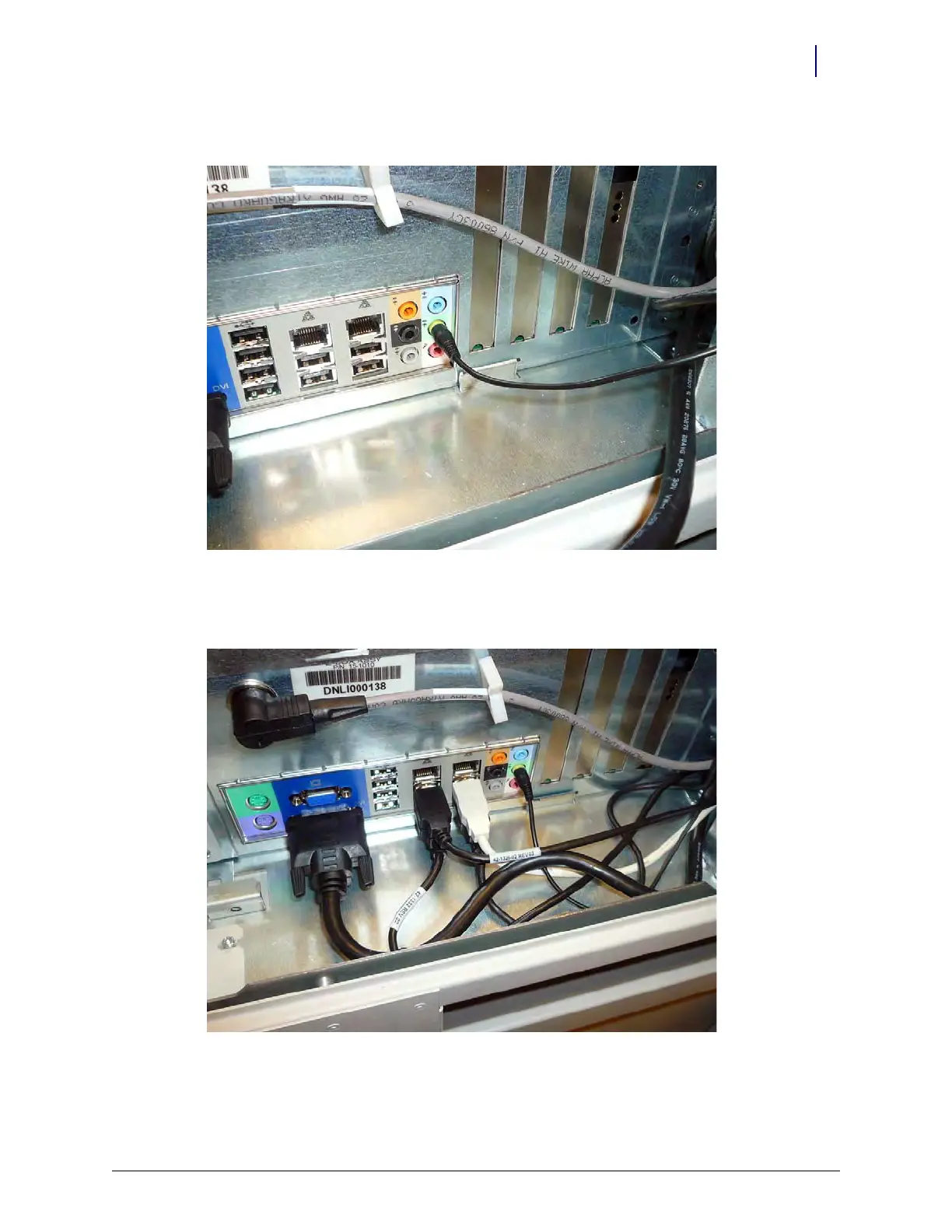

Figure 5-51. Connect the audio cable
9. Connect the four USB cables to the ports on the side of the E-Box. It does not matter where
each USB cable is plugged in.
Figure 5-52. Connect the USB cables
