© 2011 Omnicell, Inc. OmniRx Service Guide/67-2023 Rev F
Electronics Sled 1-17
PC Tray Upgrade

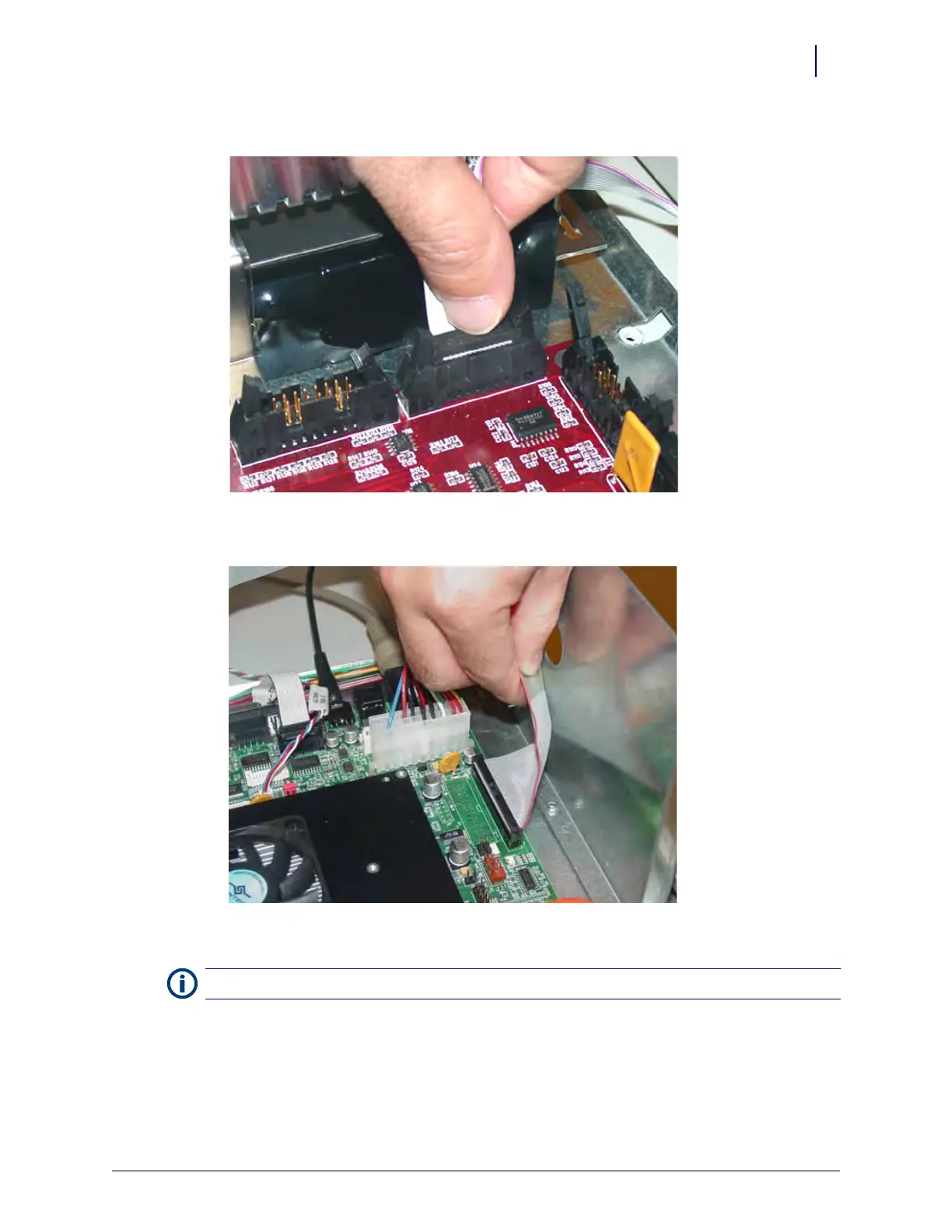

3. Connect the wireway cable to the J10 of the PowerCom3 Board
.
Figure 1-29. Connect the wireway cable to J10 of the PowerCom3 board
4. Connect the printer cable to J27 on the motherboard.
Figure 1-30. Connect the printer cable to J27 of the motherboard
5. Connect the fan power cable to J17 on the UPS board (if applicable).
Note:
Ensure that the red wire is connected closest to Pin 1.
To Next Page
