2-2 Frames and Wireways
Wireway Removal
OmniRx Service Guide/67-2023 Rev F © 2011 Omnicell, Inc.
5. Remove all drawer slides by removing the two screws that secure the slide and slide mount
bracket to the frame.

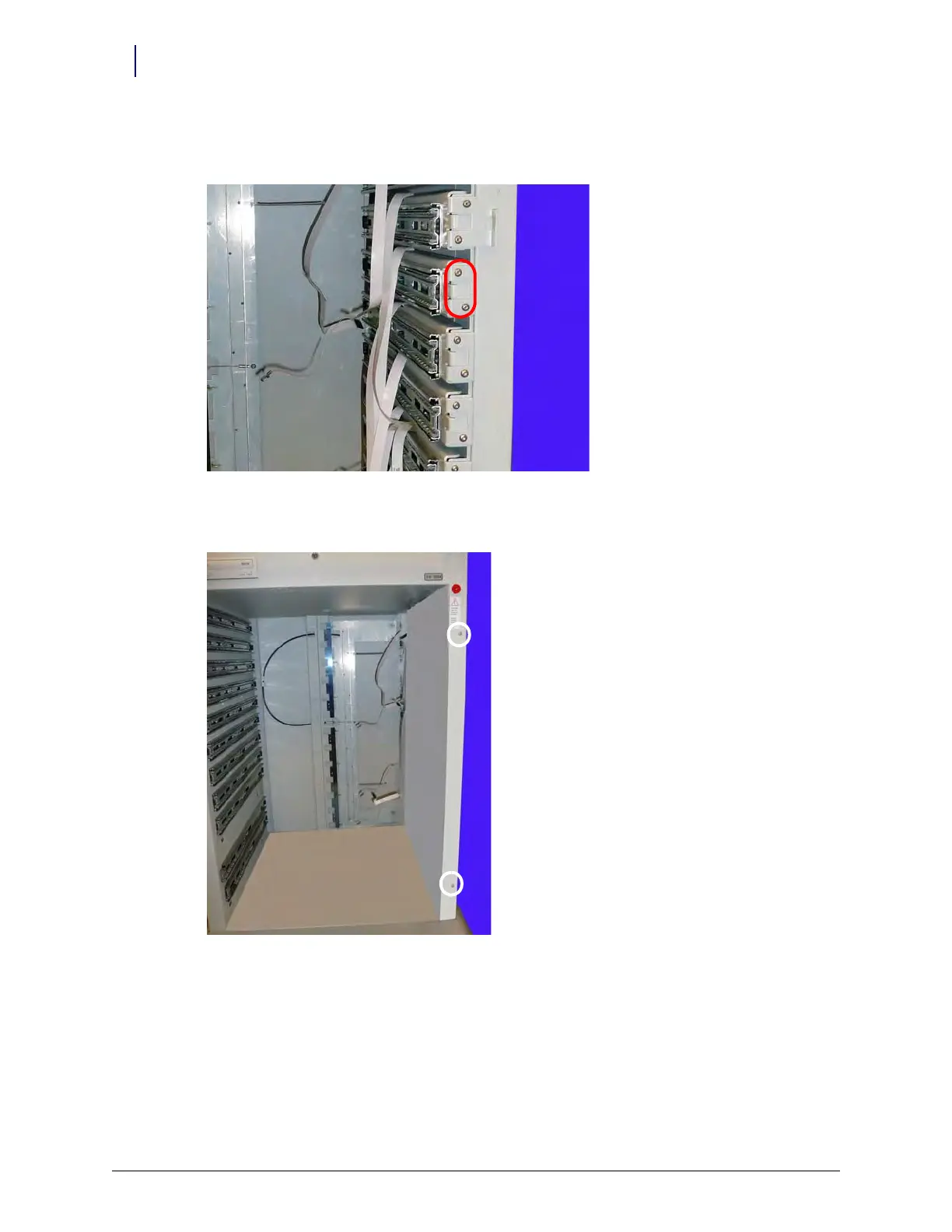

Figure 2-2. Remove the drawer rails
6. Remove the two screws on the front of the frame that help secure the wireway.
Figure 2-3. Remove the two wireway screws on the front of the OmniRx
