4-16 OmniRx G4 Console Upgrade
Add the G4 Console
OmniRx Service Guide/67-2023 Rev F © 2011 Omnicell, Inc.
1. Twist the quarter-turn wingnut fasteners to secure the G4 console to the frame base.

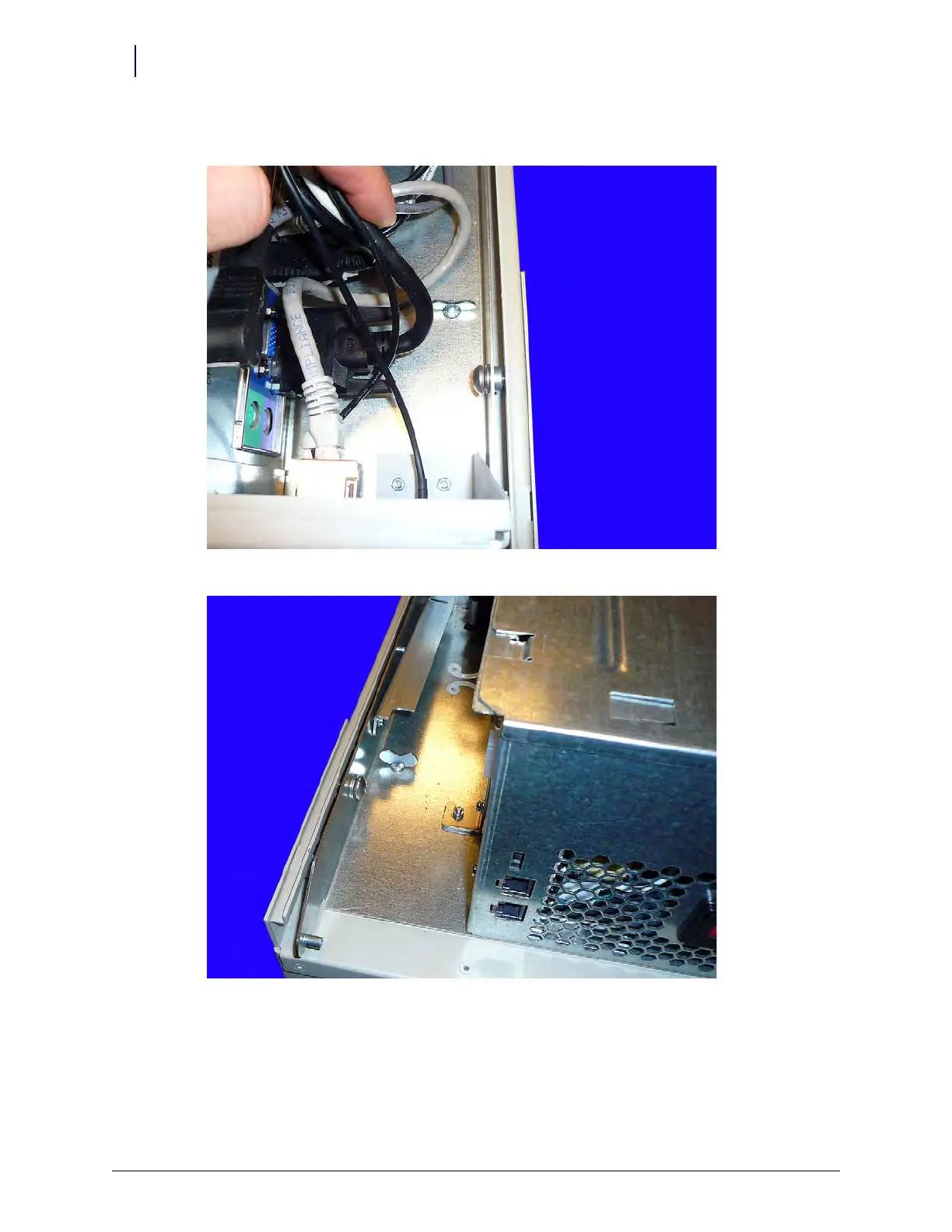

Figure 4-25. Turn the right side wingnut fastener to secure the console to the base
Figure 4-26. Turn the left side wingnut fastener to secure the console to the base
