Omron CP - PROGRAMMING MANUAL 05-2007 - Page 1021

988
Block Programming Instructions Section 3-30
3-30-5 CONDITIONAL BLOCK EXIT (NOT): EXIT (NOT)(806)
Purpose Exists the block program (i.e., does not execute any other instruction in the
block program through BEND(801) depending on the status of the operand bit
or on the execution condition. EXIT(806) without an operand bit exits the pro-
gram if the execution condition is ON. EXIT(806) with an operand bit exits the
program if the bit is ON. EXIT NOT(806) must have an operand bit and exits
the program if the bit is OFF.

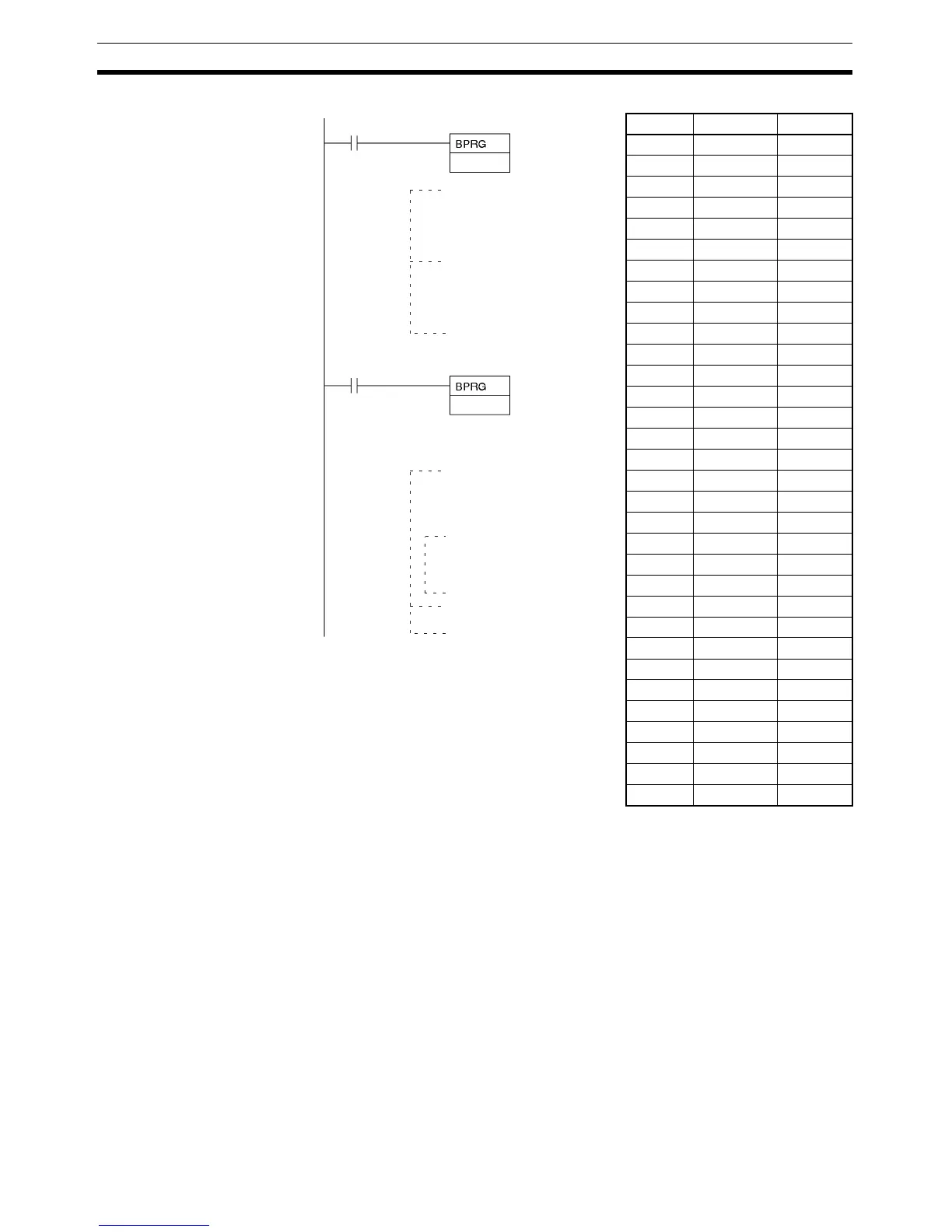

Ladder Symbol
Address Instruction Operands
000000 LD 0.00
000001 BPRG(096) 0
000002 IF(802) 0.01
000003 +B(404)
1000
#0001
D0
000004 ELSE(803)
000005 +B(404)
1000
#0002
D0
000006 IEND(804)
000007 BEND(801)
000008 LD 0.02
000009 BPRG(096) 1
000010 LD 0.03
000011 AND 0.04
000012 IF(802)
000013 +B(404)
1200
2000
D10
000014 IF(802) CY
000015 MOV(030)
#0001
D11
000016 IEND(804)
000017 ELSE(803)
000018 SET(016) 200.01
000019 IEND(804)
000020 BEND(801)
+B(404)
ELSE(803)
+B(404)
IEND(804)
BEND(801)
IF(802)
+B(404)
MOV(030)
IEND(804)
ELSE(803)
IF(802)
1000
#0001
D0
1000
#0002
D0
LD
AND
1200
2000
D10
C
Y
IF(802)
#0001
D11
SET(016)
IEND(804)
BEND(801)
0.00
0.02
0
1
0.03
0.04
200.01
0.01
EXIT(806)
EXIT(806) B
EXIT NOT(806) B
B: Bit operand
