Block Programming Instructions Section 3-30
3. If CIO 0.03 is OFF after “B” is executed, the rest of the block program will
not be executed until CIO 0.03 turns ON. When CIO 0.03 turns ON, “C” will
be executed and the execution process will be repeated.

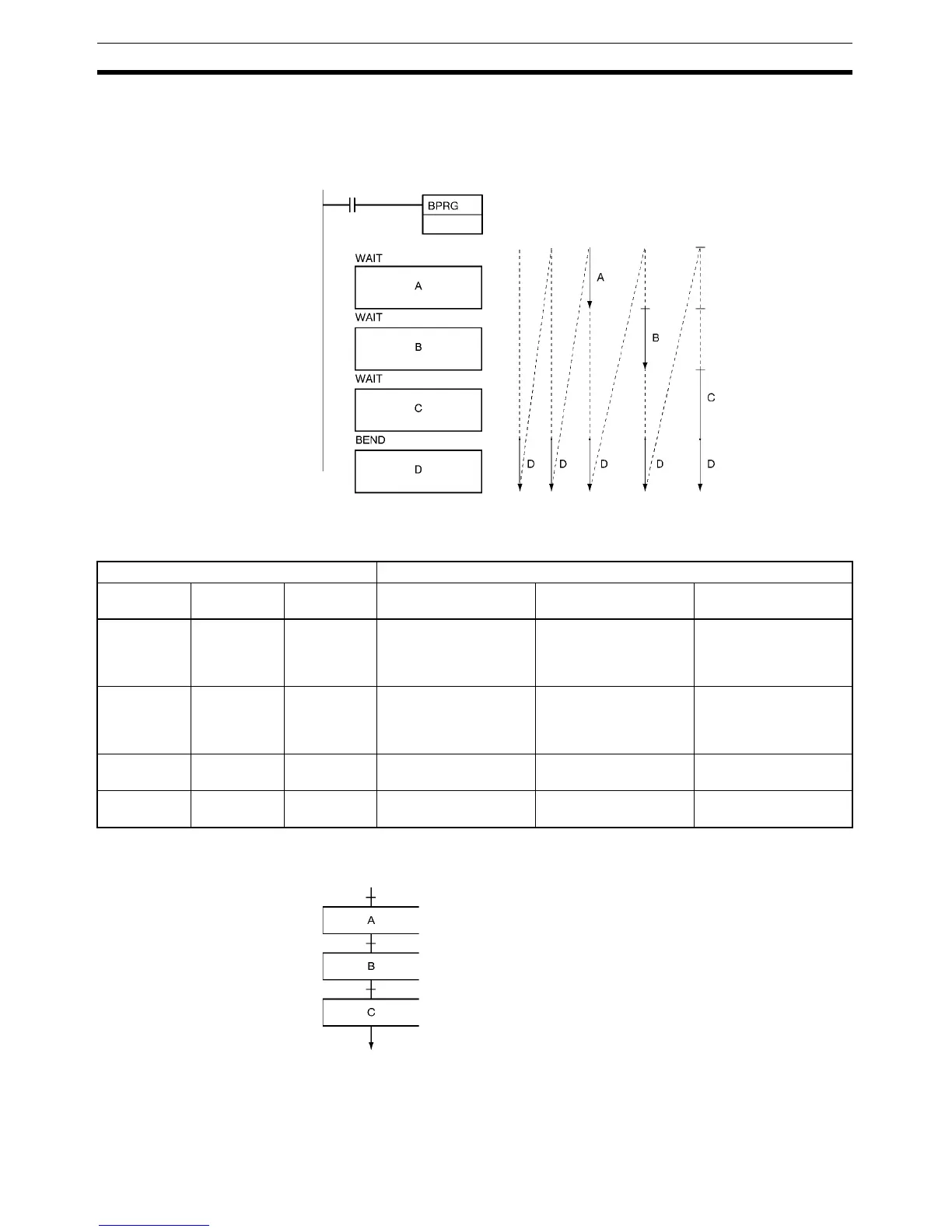

The following table shown the relationship between the operand bits and block
program execution.
As shown in this example, WAIT(805) and WAIT(805) NOT can be used to
progressively execute steps within a block program.
CIO 0.01
OFF
0
0.00
0.01
0.02
0.03
CIO 0.01
ON and
CIO 0.02
OFF
CIO 0.01,
CIO 0.02,
and
CIO 0.03
ON
CIO 0.01
ON,
CIO 0.02
ON and
CIO 0.03
OFF
Operand bits Program execution
CIO 0.01 CIO 0.02 CIO 0.03 First cycle CIO 0.00 is
ON
Next cycle Following cycles
OFF Any status Any status Nothing executed. Nothing executed; wait-
ing for CIO 0.01.
When CIO 0.01 turns
ON “A” is executed and
the status of CIO 0.02 is
checked.
ON OFF Any status “A” executed. Waiting for CIO 0.02. When CIO 0.02 turns
ON “B” is executed and
the status of CIO 0.03 is
checked.
ON ON OFF “A” and “B” executed. Waiting for CIO 0.03. When CIO 0.03 turns
ON “C” is executed
ON ON ON “A,” “B,” and “C” exe-
cuted.
“A,” “B,” and “C” exe-
cuted.
0.01
0.02
0.03
