Model Conversion Instructions Section 3-33

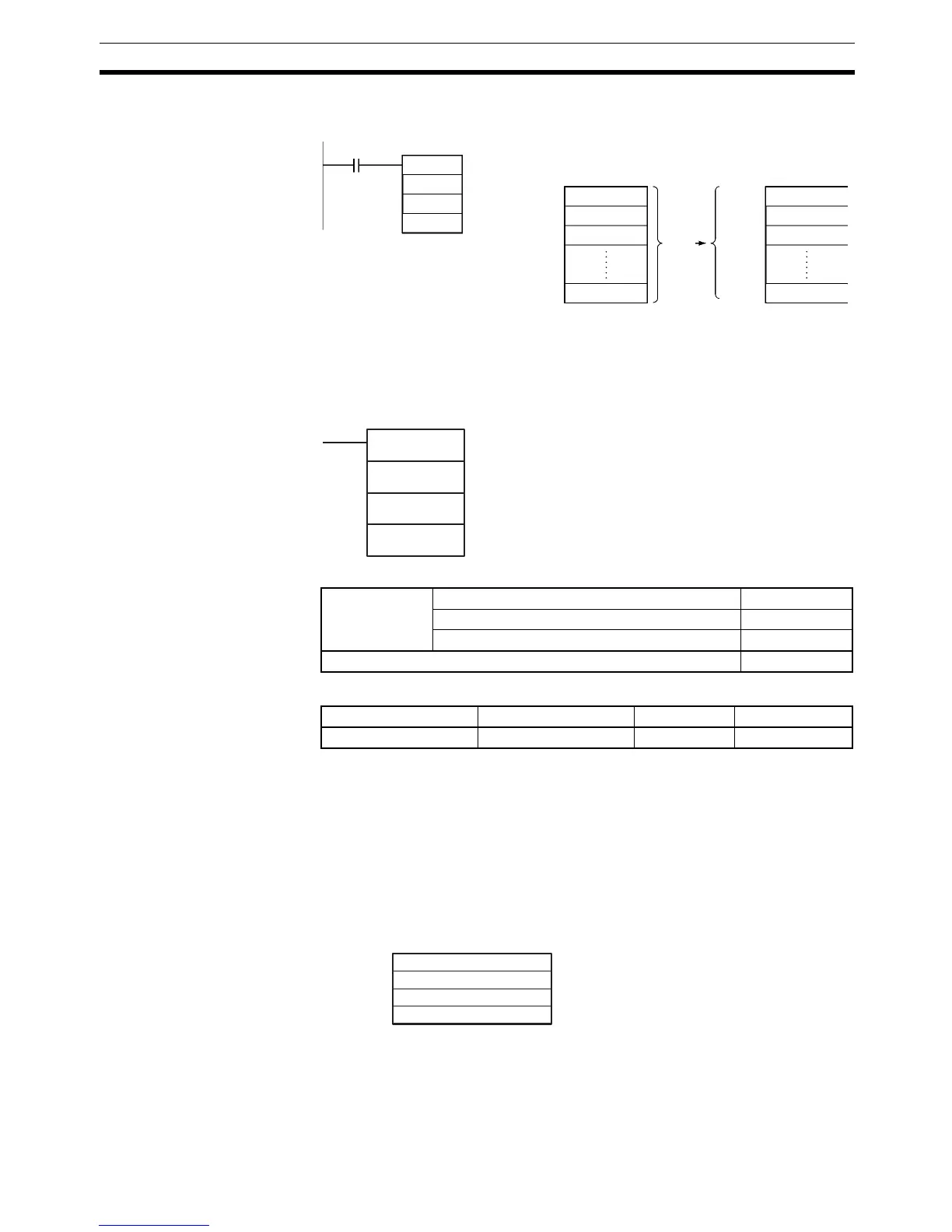

Example When CIO 0.00 is ON in the following example, the 10 words D100 through
D109 are copied to D200 through D209.
3-33-2 SINGLE WORD DISTRIBUTE: DISTC(566)
Purpose Transfers the source word to a destination word calculated by adding an offset
value to the base address.
Ladder Symbol
Variations
Applicable Program Areas
Operands Bs: Destination Base Address
Specifies the destination base address. The offset is added to this address to
calculate the destination word.
Of: Offset
• Data Distribution Operation (0000 to 7999 BCD)
This value is added to the base address to calculate the destination word.
The offset can be any value from 0000 to 7999 in BCD, but Bs and Bs+Of
must be in the same data area.
• Stack Push Operation (9000 to 9999 BCD)
When the leftmost digit of Of is 9, the rightmost 3 digits of Of specify the
number of words in the stack. The offset can be any value from 9000 to
9999 BCD.
#0010
XFERC
0.00
D100
D200
D100
D101
D102
D109
D200
D201
D202
D209
10
words
DISTC(566)
S
S: Source word
Bs: Destination base address
Of: Offset
Bs
Of
Variations Executed Each Cycle for ON Condition DISTC(566)
Executed Once for Upward Differentiation @DISTC(566)
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification Not supported
Block program areas Step program areas Subroutines Interrupt tasks
OK OK OK OK
15 0
to
to
Bs
Bs+Of
