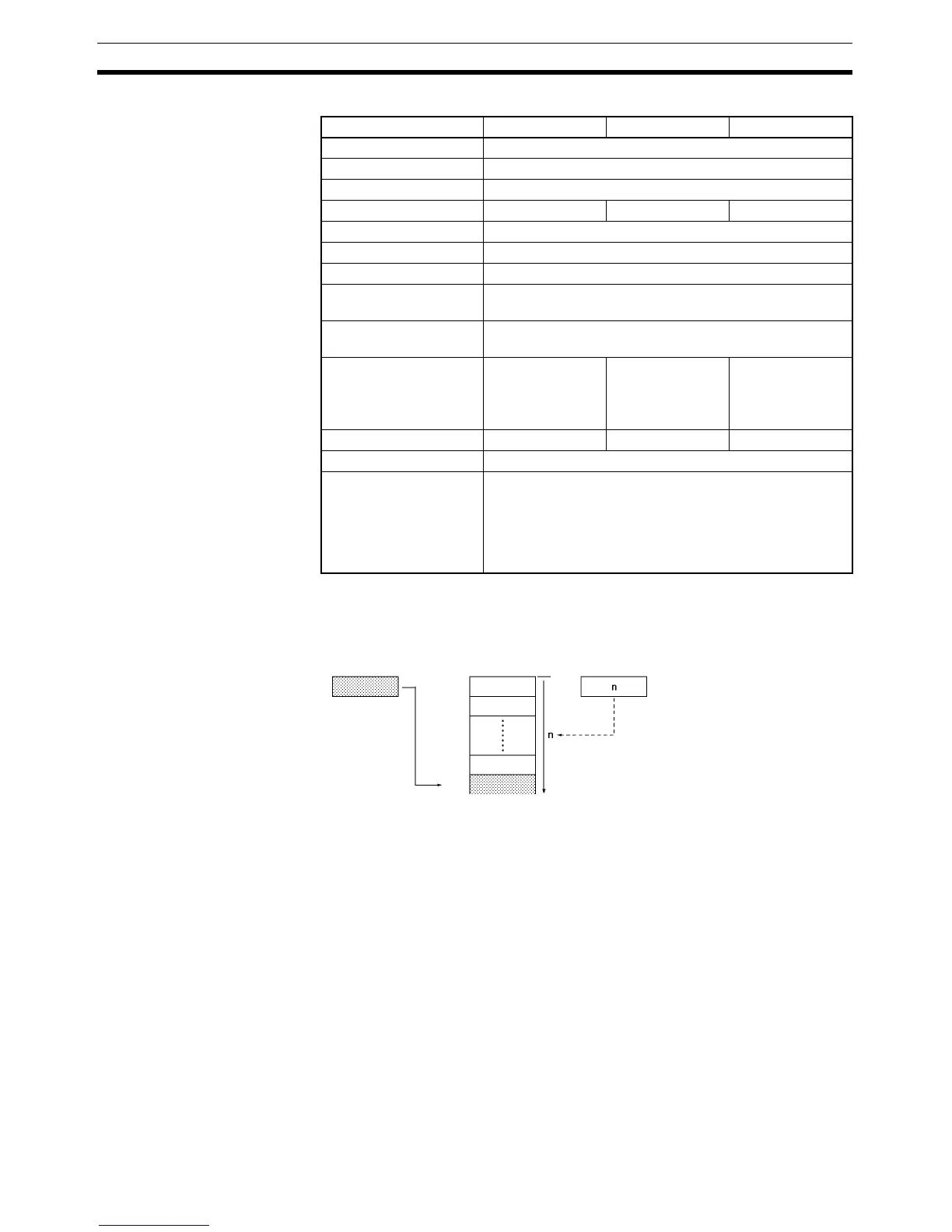

Model Conversion Instructions Section 3-33
Operand Specifications
Description Data Distribution Operation
DISTC(566) copies S to the destination word calculated by adding Of to Bs.
The same DISTC(566) instruction can be used to distribute the source word
to various words in the data area by changing the value of Of.
Area S Bs Of
CIO Area CIO 0 to CIO 6143
Work Area W0 to W511
Holding Bit Area H0 to H511
Auxiliary Bit Area A0 to A959 A448 to A959 A0 to A959
Timer Area T0000 to T4095
Counter Area C0000 to C4095
DM Area D0 to D32767
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants #0000 to #FFFF
(binary)
--- #0000 to #7999
for distribution
#9000 to #9999
for stack operation
Data Registers DR0 to DR15 --- DR0 to DR15
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, –(– –) IR15
S
Bs+n
OfBs
