128
Sequence Output Instructions Section 3-3

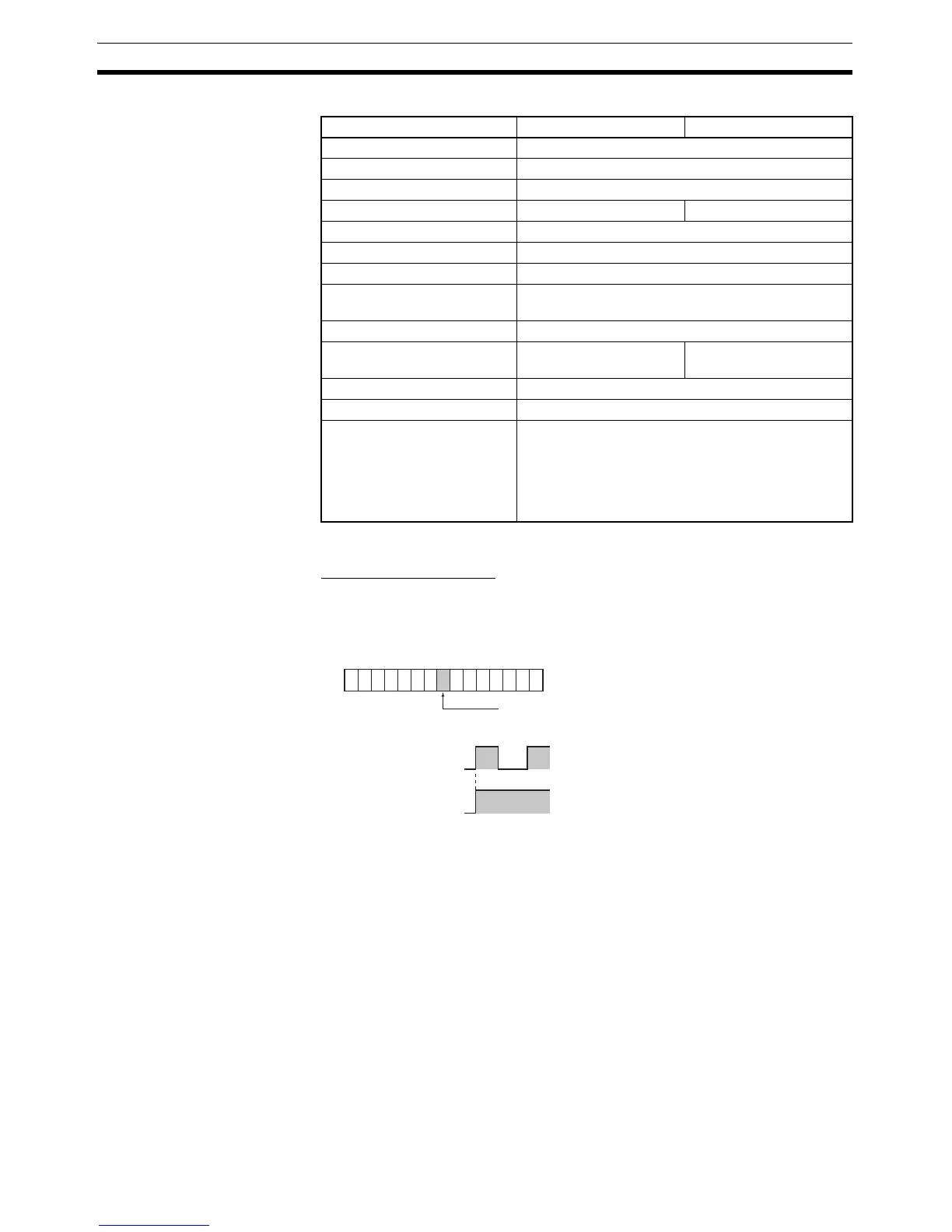

Operand Specifications
Description The functions of SETB(532) and RSTB(533) are described separately below.
Operation of SETB(532)
SETB(532) turns ON bit N of word D when the execution condition is ON. The
status of the bit is not affected when the execution condition is OFF. Unlike
SET, SETB(532) can turn ON a bit in the DM area.
Bits turned ON by SETB(532) can be turned OFF by any other instruction, not
just RSTB(533).
Area D N
CIO Area CIO 0 to CIO 6143
Work Area W0 to W511
Holding Bit Area H0 to H511
Auxiliary Bit Area A448 to A959 A0 to A959
Timer Area T0000 to T4095
Counter Area C0000 to C4095
DM Area D0 to D32767
Indirect DM addresses in
binary
@ D0 to @ D32767
Indirect DM addresses in BCD *D0 to *D32767
Constants --- #0000 to #000F (binary)
or &0 to &15
Data Registers DR0 to DR15
Index Registers ---
Indirect addressing using
Index Registers
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, –(– –) IR15
ON
OFF
ON
OFF
15
This bit is turned ON.
Execution condition
Bit N of word D
