187
Timer and Counter Instructions Section 3-5
Be sure that the words specified for the Completion Flag and PV (D1, D2, and
D2+1) are not used in other instructions. If these words are affected by other
instructions, the timer might not time out properly.

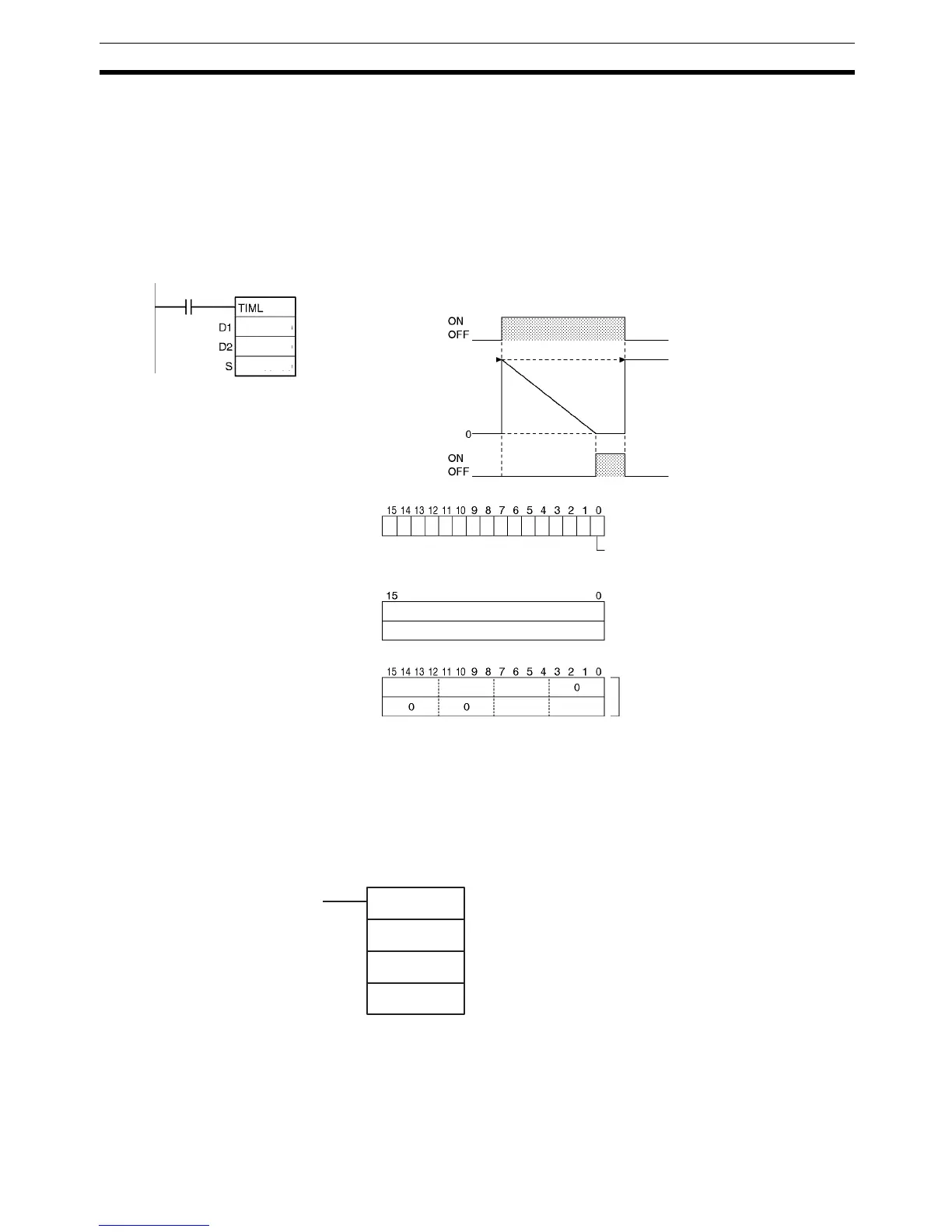

Example When timer input CIO 0.00 is ON in the following example, the timer PV (in
D101 and D100) will be set to the SV (in D201 and D200) and the PV will
begin counting down. The timer Completion Flag (CIO 200.00) will be turned
ON when the PV reaches 0000 0000.
When CIO 0.00 goes OFF, the timer PV will be reset to the SV and the Com-
pletion Flag will be turned OFF.
3-5-6 MULTI-OUTPUT TIMER: MTIM(543)/MTIMX(554)
Purpose MTIM(543)/MTIMX(554) operates a 0.1-s incrementing timer with eight inde-
pendent SVs and Completion Flags. The set value is 0 to 999.9 s for
MTIM(543) and 0 to 6,553.5 s for MTIMX(554), and the timer accuracy is 0 to
0.01 s.
Ladder Symbol BCD
D1: 200
D2: D100
S: D200
D101
D201
CIO 0.00
(CIO 200.00)
(CIO 200.00)
00
0
10
0.00
200
D100
D200
Timer input
Timer PV
(D101 and D100)
Timer SV:
(D201 and D200)
Timer SV:
(100,000 decimal= 10,000 s)
Timer's PV (LSB)
Timer's PV (MSB)
Timer Completion
Flag
Timer Completion
Flag
MTIM(543)
D1
D2
S
D1: Completion Flags
D2: PV word
S: First SV word
