Timer and Counter Instructions Section 3-5
The timer or counter instruction will not be executed if the PLC memory
address in the specified Index Register is not the address of a timer or counter
PV.
Using Index Registers to indirectly address timers and counters can reduce
the size of the program and increase flexibility. For example, common subrou-
tines can be created.

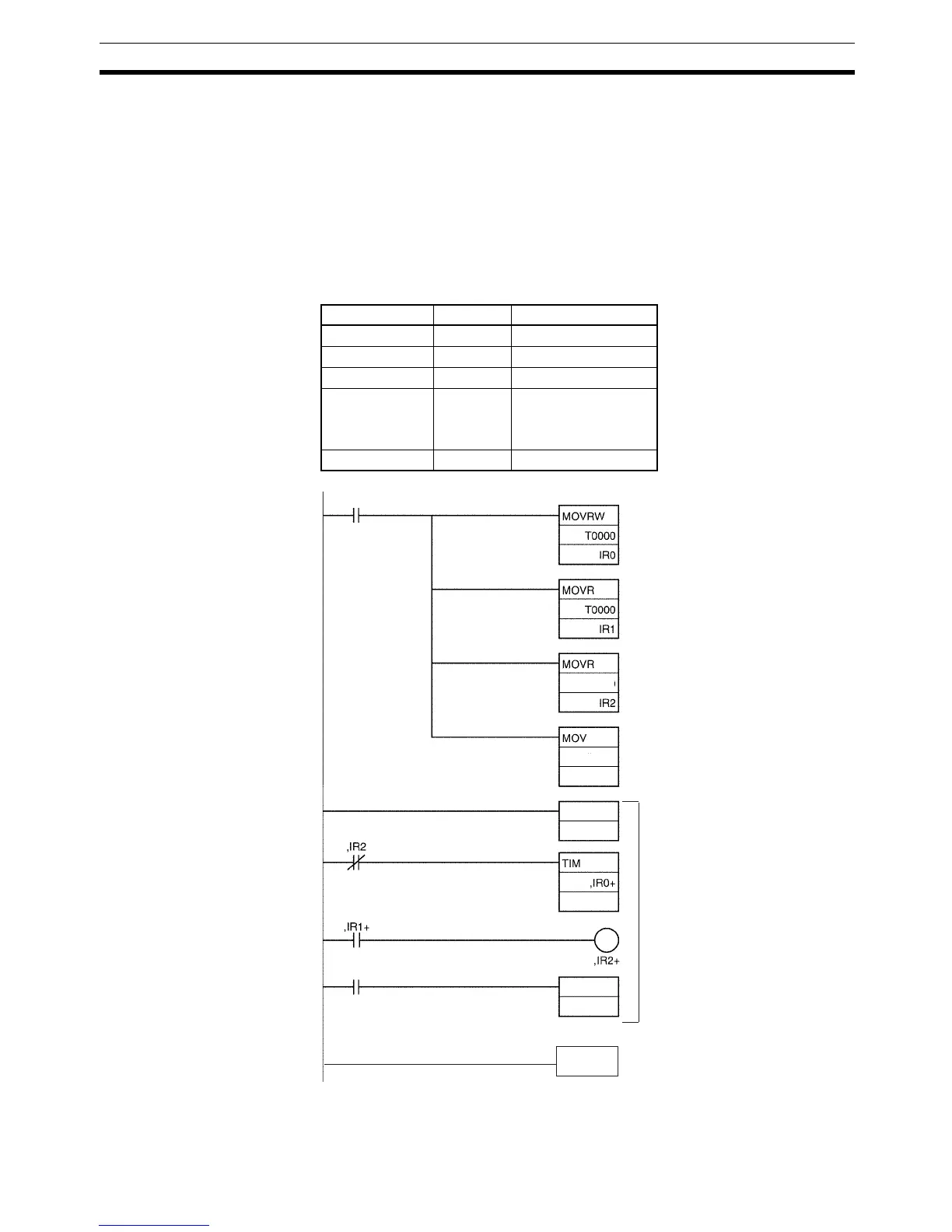

Example The following example shows a program section that uses indirect addressing
to define and start 100 timers with SVs contained in D100 through D199. IR0
contains the PLC memory address of the timer PV and IR1 contains the PLC
memory address of the timer Completion Flag.
1,2,3... 1. MOVRW(561) moves the PLC memory address of the PV for timer T0000
to IR0. Afterwards IR0 can be used in place of the timer number.
DM address Content Function
D100 0010 SV for T0000
D101 0100 SV for T0001
D102 0050 SV for T0002
.
.
.
.
.
.
.
.
.
D199 0999 SV for T0099
1
2
3
4
5
P
_
On
P
_
On
&100
FOR
&100
@D0
++
NEXT
2000.00
D0
D0
(Always ON
Flag)
(Always ON
Flag)
