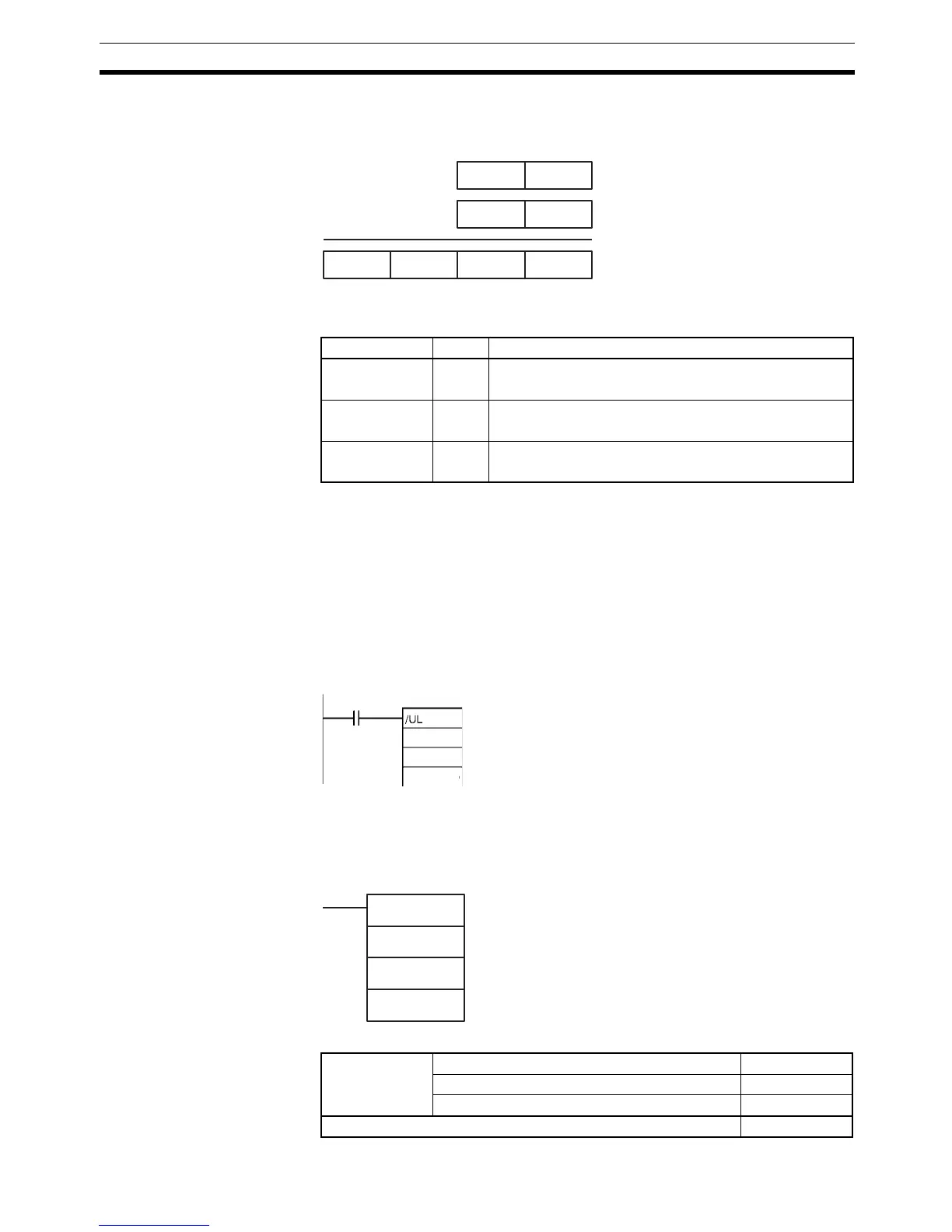

Symbol Math Instructions Section 3-10
Description /UL(433) divides the unsigned binary values in Dd and Dd+1 by those in Dr
and Dr+1 and outputs the quotient to R, R+1 and the remainder to R+2, and
R+3.
Flags
Precautions When the content of Dr, Dr+1 is 0, the Error Flag will turn ON.
If as a result of the division, the content of R, R+1, is 0000 hex, the Equals
Flag will turn ON.
If as a result of the division, the content of the leftmost bit of R+1 is 1, the Neg-
ative Flag will turn ON.
Examples When CIO 0.01 is ON in the following example, D201 and D200 will be
divided by D211 and D210 as 8-digit unsigned hexadecimal values, the quo-
tient will be output to D221 and D220, and the remainder will be output to
D223 and D222.
3-10-27 BCD DIVIDE: /B(434)
Purpose Divides 4-digit (single-word) BCD data and/or constants.
Ladder Symbol
Variations
R + 1 RR + 3 R + 2
÷
Dd + 1 Dd
Dr + 1 Dr
Remainder Quotient
(Unsigned binary)
(Unsigned binary)
(Unsigned binary)
Name Label Operation
Error Flag ER ON when the result is 0.
OFF in all other cases.
Equals Flag = ON when as a result of the division R+1, R is 0.
OFF in all other cases.
Negative Flag N ON when the leftmost bit of the R+1, R is 1.
OFF in all other cases.
0.01
D200
D210
D220
/B(434)
R
Dd
Dr
Dd: Dividend word
Dr: Divisor word
R: Result word
Variations Executed Each Cycle for ON Condition /B(434)
Executed Once for Upward Differentiation @/B(434)
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification Not supported.
