412
Conversion Instructions Section 3-11
Di: Digit Designator

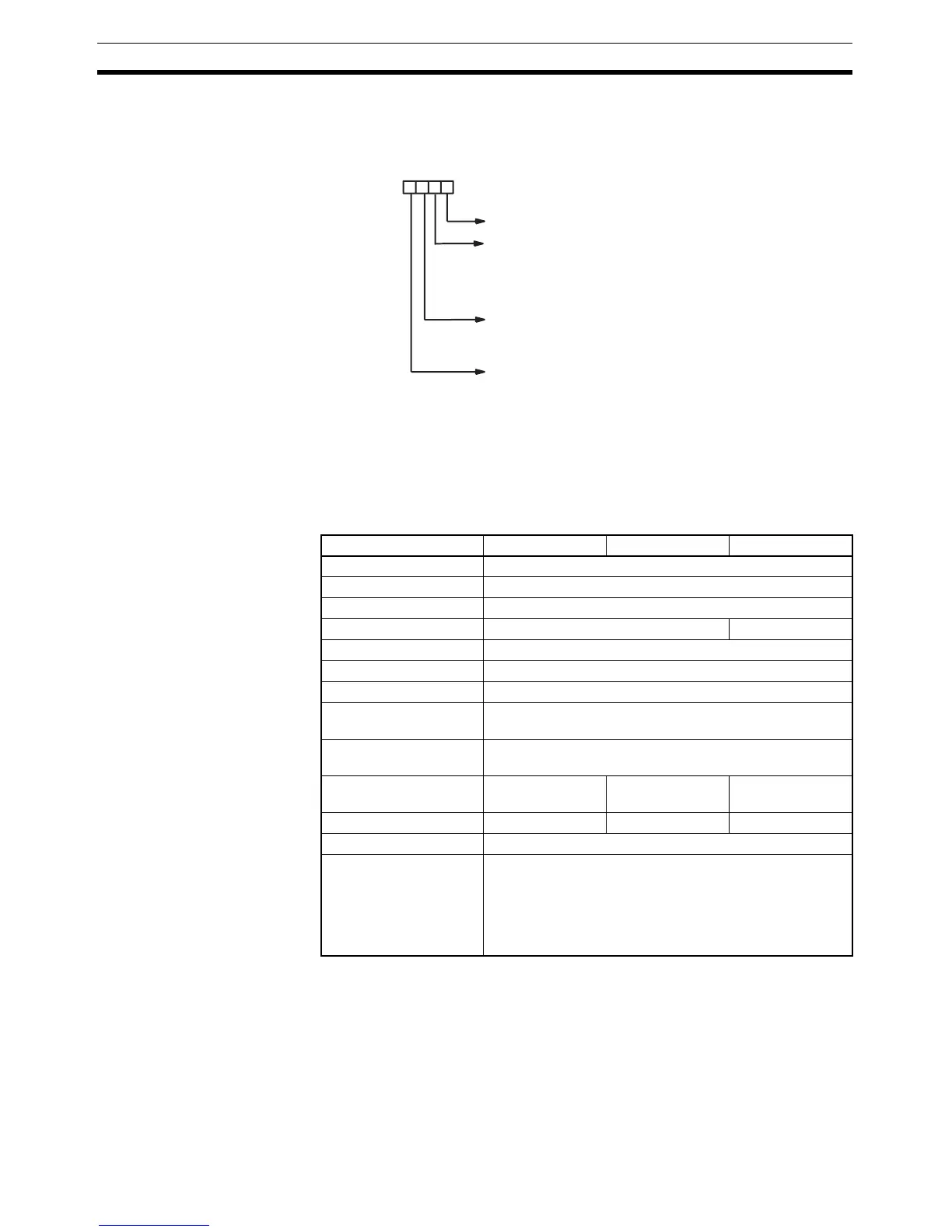

The digit designator specifies various parameters for the conversion, as
shown in the following diagram.
D: Destination word
The converted hexadecimal digits are written into D from right to left, begin-
ning with the specified first digit. Any digits in the destination word that are not
overwritten with the converted data will be left unchanged.
Operand Specifications
Description HEX(162) treats the contents of the source word(s) as ASCII data represent-
ing hexadecimal digits (0 to 9 and A to F), converts the specified number of
bytes to hexadecimal, and writes the hexadecimal data to the destination
word beginning at the specified digit.
An error will occur if the source words contain data which is not an ASCII
equivalent of hexadecimal digits. The following table shows hexadecimal dig-
its and their ASCII equivalents (excluding parity bits).
3 2 1 0Digit number:
Specifies the first digit in D to receive converted data (0 to 3).
Number of bytes to be converted (0 to 3)
0: 1 digit
1: 2 digits
2: 3 digits
3: 4 digits
0: Rightmost byte
1: Leftmost byte
Parity 0: None
1: Even
2: Odd
First byte of S to be converted.
Area S Di D
CIO Area CIO 0 to CIO 6143
Work Area W0 to W511
Holding Bit Area H0 to H511
Auxiliary Bit Area A0 to A959 A448 to A959
Timer Area T0000 to T4095
Counter Area C0000 to C4095
DM Area D0 to D32767
Indirect DM addresses
in binary
@ D0 to @ D32767
Indirect DM addresses
in BCD
*D0 to *D32767
Constants --- Specified values
only
---
Data Registers --- DR0 to DR15 ---
Index Registers ---
Indirect addressing
using Index Registers
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
