464
Special Math Instructions Section 3-13
In this case, the source word, CIO 1000, contains 0014, and f(0014) = 0726 is
output to R, CIO 1001.

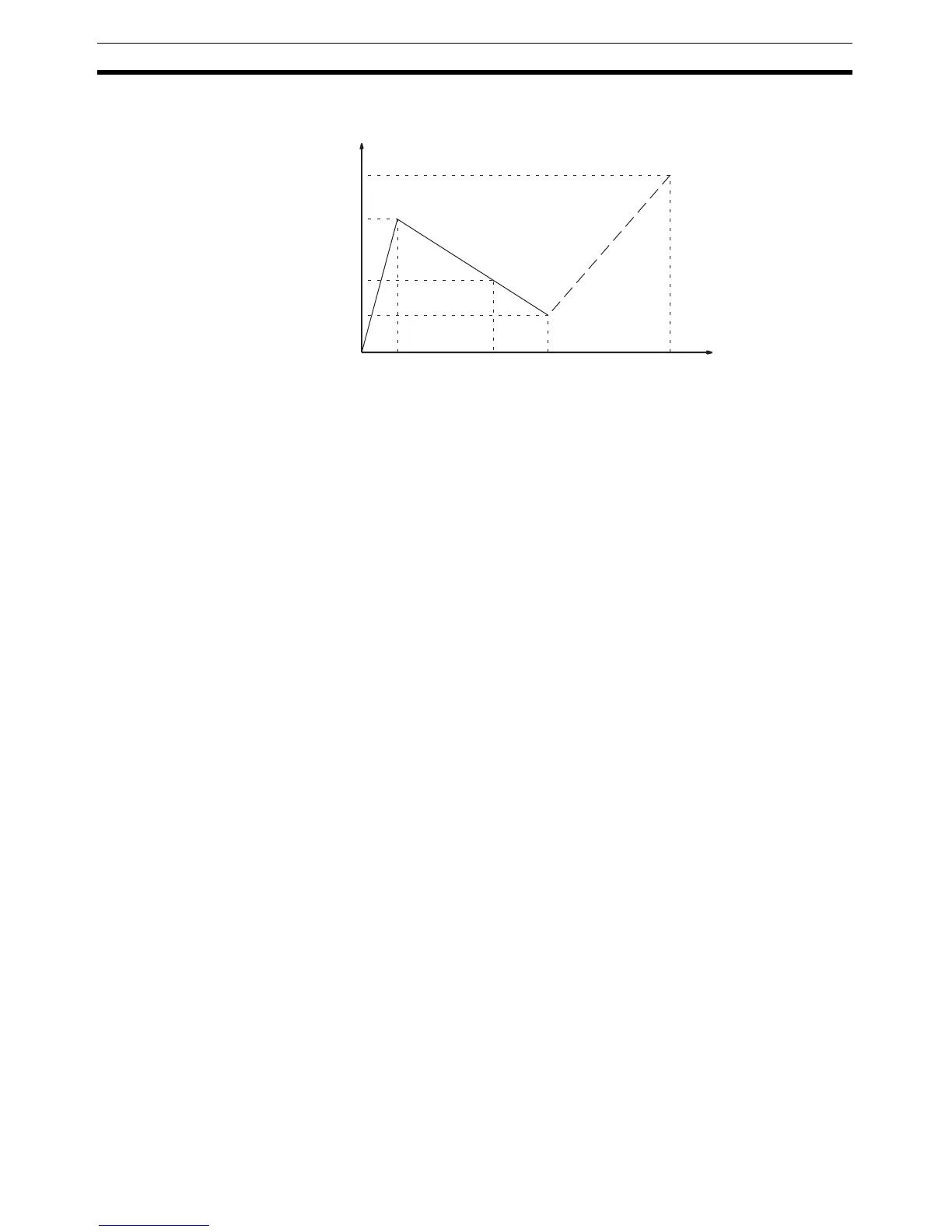

The linear-extrapolation calculation is shown below.
X
Y
$1F20
$0F00
$0726
$0402
(0,0)
$0005 $0014 $001A $05F0
(x,y)
Values are all hexadecimal (hex).
Y0F00
0402 0F00–
001A 0005–
---------------------------------
0014 0015–()×+=
0726=
0F00 0086 000F
)×(–=
