Data Control Instructions Section 3-17

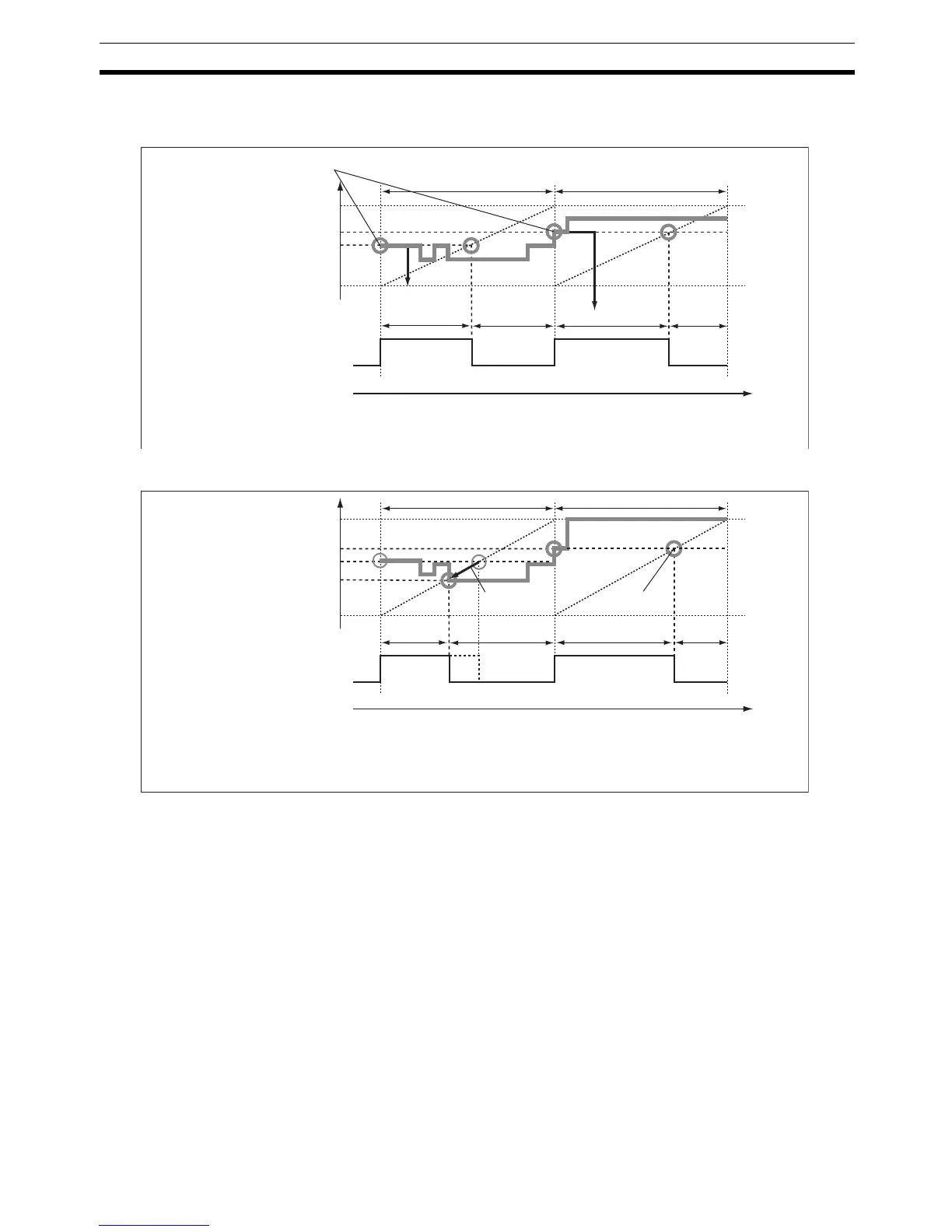

The following diagrams show the operation of each input read timing setting.
• Input time setting = 0 (Use the beginning value of the control period.)
• Input time setting = 1 (Use lower value.)
100%
a × 0.55 s a × 0.45 s a × 0.70 s
a × 0.30 s
70%
55%
0%
Control period (a)
Read only at the beginning of the control period.
Control period (a)
Time
Output
Duty ratio
(MV/MV range)
Each control period's output is determined by the duty ratio at the beginning of that period.
Use this setting for general applications.
100%
a × 0.35 s a × 0.65 s
a × 0.70 s
a × 0.30 s
70%
55%
35%
0%
Control period (a) Control period (a)
Time
Output
Duty ratio
(MV/MV range)
55% target
cut to 35%.
70% target
is kept.
If the duty ratio falls below the initial value early enough, the duty ratio will be
adjusted and the output will be turned OFF sooner.
Use this setting for applications such as avoiding overshooting when using time-
proportional control to control heating and using a relatively long control period.
