Interrupt Functions Section 5-1
Operation When execution condition W0.00 goes ON, MSKS(690) is executed to enable
CIO 0.00 as an up-differentiated input interrupt.
If CIO 0.00 goes from OFF to ON (up-differentiation), processing of the cyclic
task that is currently being executed will be interrupted and processing of
interrupt task 140 will start. When the interrupt task processing is completed,
processing of the interrupted ladder program will restart.
Restrictions Inputs cannot be used for input interrupts when they are being used as gen-
eral-purpose (normal) inputs or quick-response inputs.
5-1-3 Input Interrupts (Counter Mode)
Overview This function counts up-differentiated or down-differentiated input signals and
executes an interrupt task when the count reaches the set value.
• The counter-mode input interrupts use the same input terminals as the
direct-mode input interrupts. Refer to 5-1-2 Input Interrupts (Direct Mode)
for details.
• The counter input mode can be set to up or down (incrementing or decre-
menting) with MSKS(690).
• The counter-mode input interrupts start the same interrupt tasks (140 to
147) as the direct-mode input interrupts.
• The maximum input response frequency is 5 kHz total for all counter-
mode input interrupts.
Relationship of Input Bits,
Task Numbers, and
Counters
Note *Input interrupts 6 and 7 are not supported by the Y CPU Units.

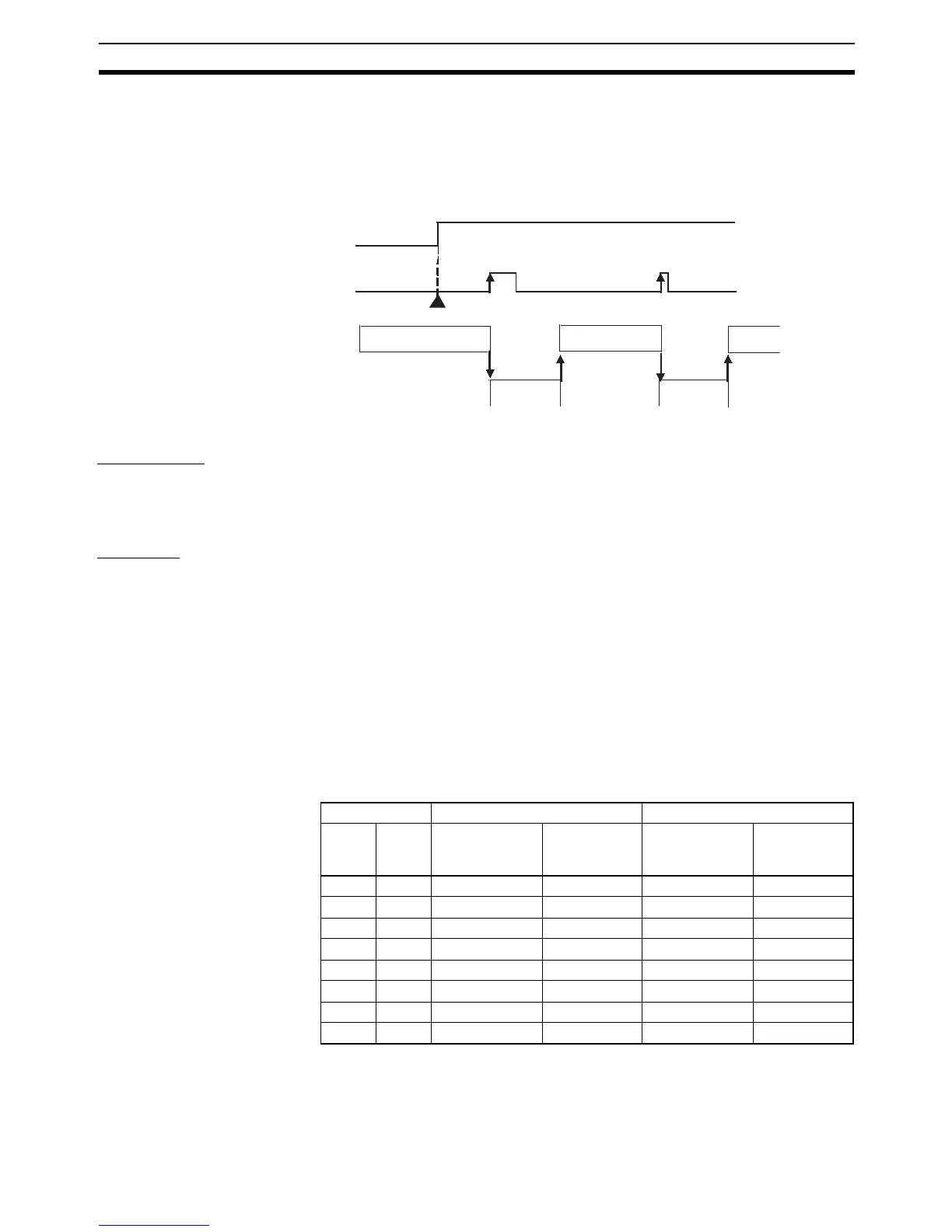

W0.00
0.00
MSKS(690) executed
Cyclic task processing
Interrupt
task 140
processing
Processing
interrupted
Cyclic task
processing
Processing
interrupted
Interrupt
task 140
processing
Input bits Function Counter words
X/XA
CPU
Unit
Y CPU
Unit
Input interrupt
number
Interrupt task
number
SV
(0000 to FFFF)
PV
0.00 0.00 Input interrupt 0 140 A532 A536
0.01 0.01 Input interrupt 1 141 A533 A537
0.02 1.00 Input interrupt 2 142 A534 A538
0.03 1.01 Input interrupt 3 143 A535 A539
1.00 1.02 Input interrupt 4 144 A544 A548
1.01 1.03 Input interrupt 5 145 A545 A549
1.02 --- Input interrupt 6 146 (see note) A546 A550
1.03 --- Input interrupt 7 147 (see note) A547 A551
