Omron CP1H CPU User Manual

21
System Configuration Section 1-2

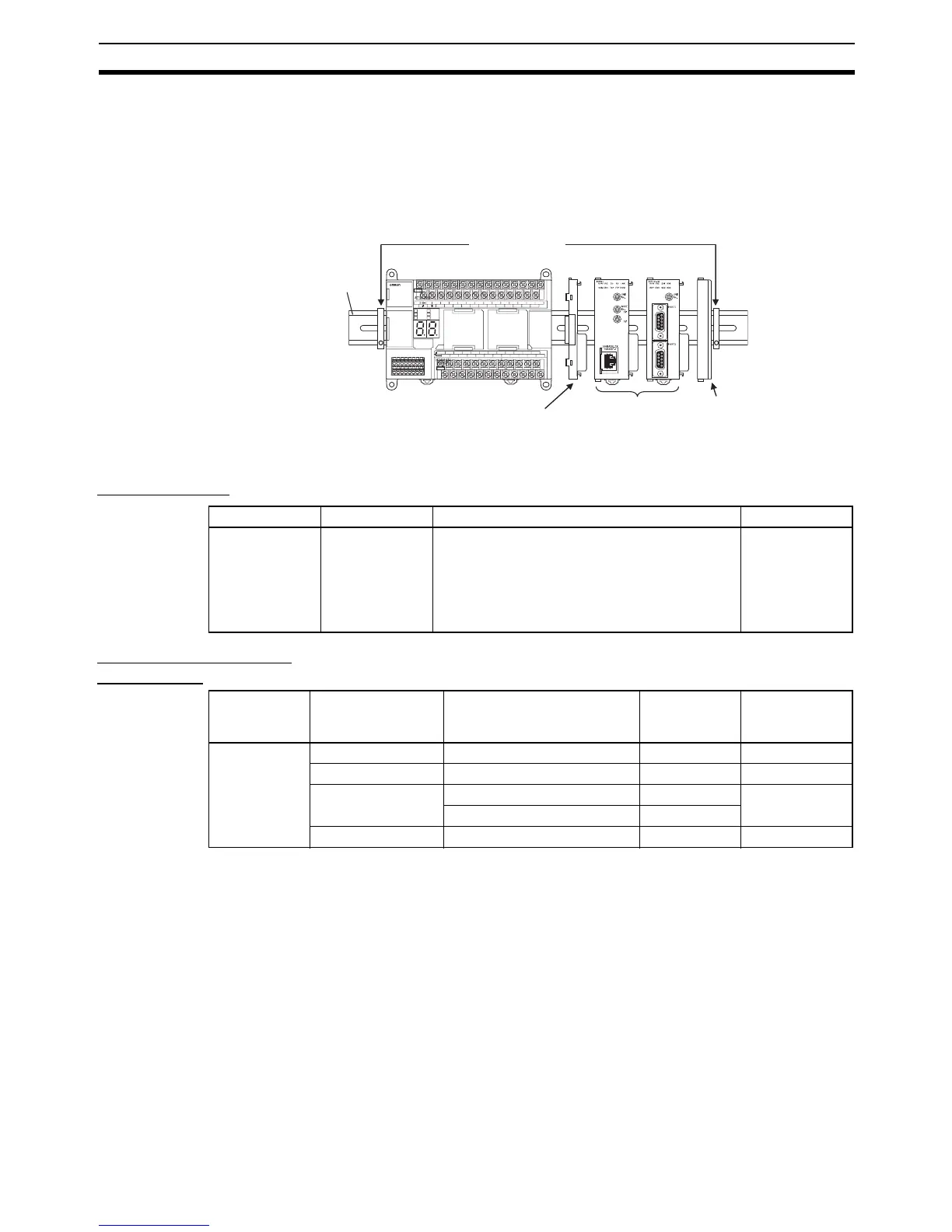

1-2-3 System Expansion with CJ-series Units
A maximum of two CJ-series Special I/O Units or CPU Bus Units can be con-
nected. In order to connect them, a CP1W-EXT01 CJ Unit Adapter and a
CJ1W-TER01 End Cover are required. These Units make it possible to add
serial communication functions, such as network communications or protocol
macros.
Required Units
Main Connectable CJ-
series Units
The main CPU Bus Units and Special I/O Units that can be connected are
listed in the following table.
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
DIN Track
PFP-M
End Plates
CP1W-EXT01
CJ Unit Adapter
CJ-series
CPU Bus Units
Special I/O Units
CJ-series
CJ1W-TER01 End Cover
(Included with CJ Unit
Adapter.)
Name Model Description Weight
CJ Unit Adapter CP1W-EXT01 Mounting a CJ Unit Adapter to the right of the
CP1H CPU Unit makes it possible to connect up
to two CJ-series Special I/O Units or CPU Bus
Units.
Note The CJ Unit Adapter comes packaged
with one CJ1W-TER01 End Cover.
40 g max.
Classification Unit name Model Current
consumption
(5 VDC)
Weight
CPU Bus
Units
Ethernet Units CJ1W-ETN11/21 0.38 A 100 g max.
Controller Link Unit CJ1W-CLK21-V1 0.35 A 110 g max.
Serial Communica-
tions Units
CJ1W-SCU21-V1 0.28 A 110 g max.
CJ1W-SCU41-V1 0.38 A
DeviceNet Unit CJ1W-DRM21 0.29 A 118 g max.
