Omron CP1H CPU User Manual

15
System Configuration Section 1-2
Expansion Capability
for CJ-series Special
I/O Units and CPU
Bus Units (All
Models)
A maximum of two CJ-series Special I/O Units or CPU Bus Units can be con-
nected via a CJ Unit Adapter. It is also possible to connect to upper level and
lower level networks, and to expand the system by using analog I/O.

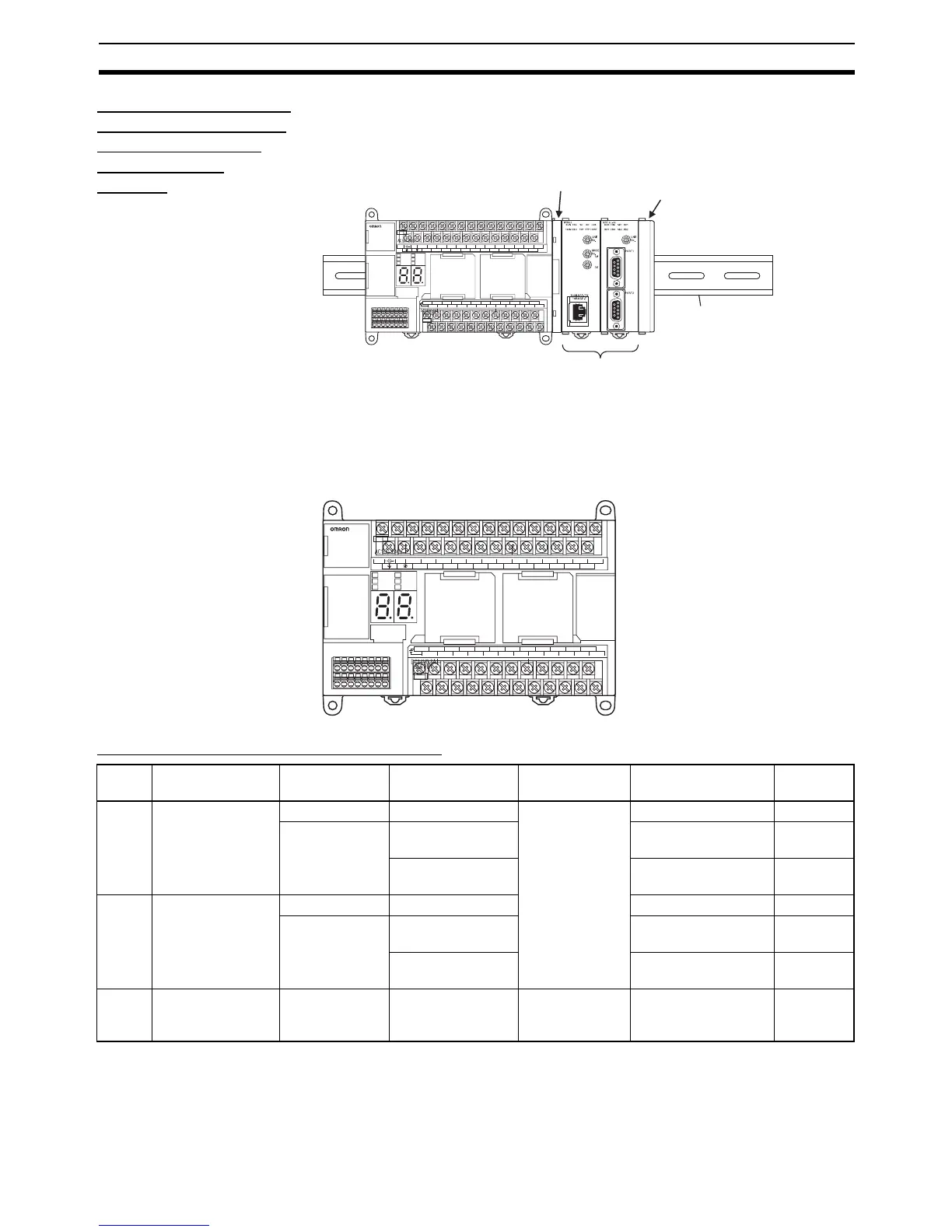

1-2 System Configuration
1-2-1 Basic System
Maximum Number of Normal I/O Points
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
CP1W-EXT01
CJ Unit Adapter
CJ1W-TER01 CJ-series End Cover
(Included with CJ Unit Adapter.)
DIN Track
Can be expanded by connecting two CJ-series
CPU Bus Units and/or Special I/O Units.
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
RUN
INH
PRPHL
100CH 101CH
EXP
L1 L2/N COM
0CH 1CH
01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
Type Description Power supply
voltage
Model Normal built-in
inputs
Normal built-in
outputs
Weight
X Basic CPU Units 100 to 240 VAC CP1H-X40DR-A 24 DC inputs 16 relay outputs 740 g max.
24 VDC CP1H-X40DT-D 16 transistor (sink-
ing) outputs
590 g max.
CP1H-X40DT1-D 16 transistor (sourc-
ing) outputs
590 g max.
XA CPU Units with
built-in analog I/O
terminals
100 to 240 VAC CP1H-XA40DR-A 16 relay outputs 740 g max.
24 VDC CP1H-XA40DT-D 16 transistor (sink-
ing) outputs
590 g max.
CP1H-XA40DT1-D 16 transistor (sourc-
ing) outputs
590 g max.
Y CPU Unit with ded-
icated pulse I/O
terminals
24 VDC CP1H-Y20DT-D 12 DC inputs 8 transistor (sinking)
outputs
560 g max.
