Omron CP1H CPU User Manual

601

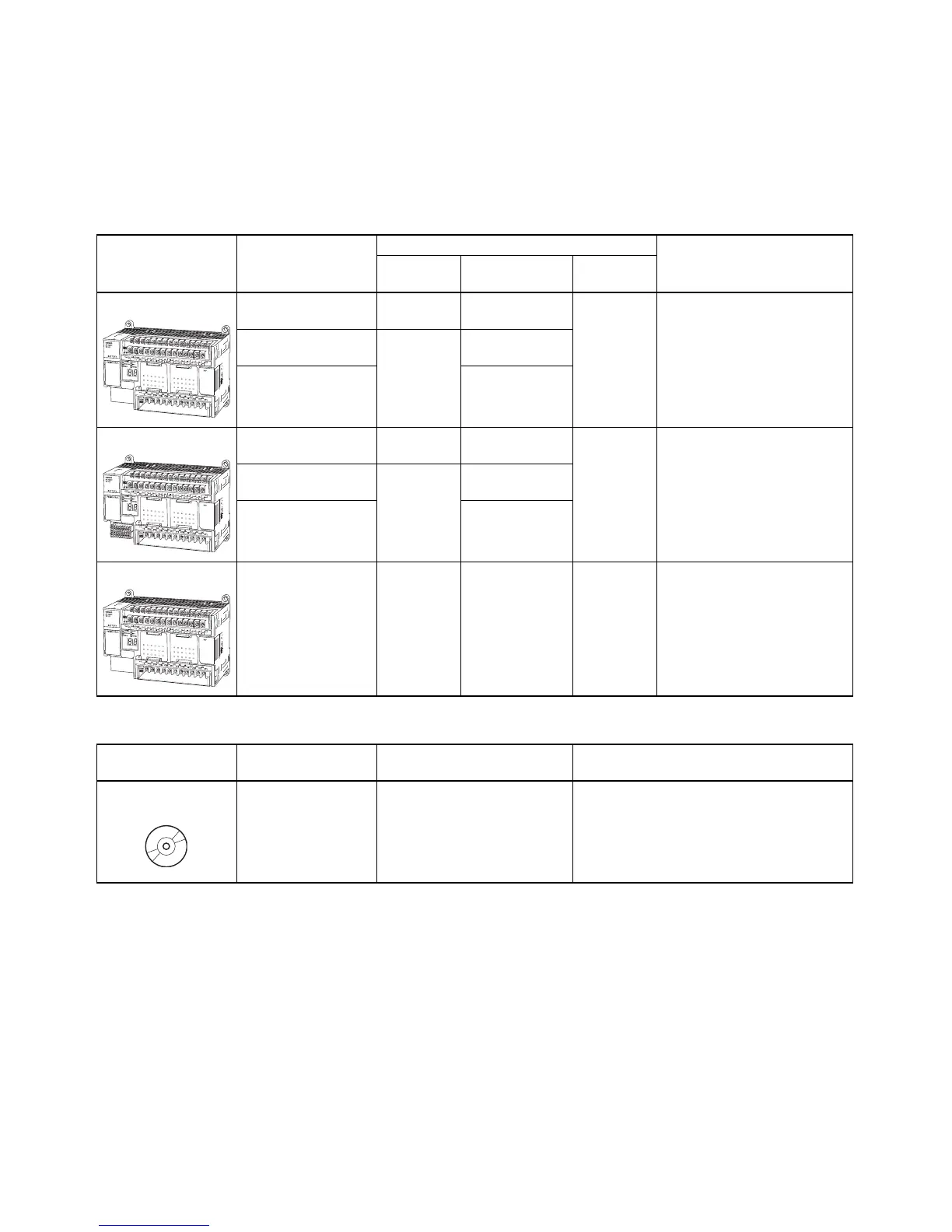

Appendix A
Standard Models
CPU Units
Programming Devices
Name and
appearance
Model Specifications Remarks
Power
supply
Outputs Inputs
CP1H X CPU Units CP1H-X40DR-A 100 to
240 VAC
16 relay outputs 24 VDC
24 inputs
Memory capacity: 20 Ksteps
High-speed counters:
100 kHz, 4 counters
Pulse outputs: 2 outputs at
100 kHz, 2 outputs at 30 kHz
CP1H-X40DT-D 24 VDC 16 transistor
outputs, sinking
CP1H-X40DT1-D 16 transistor
outputs, sourc-
ing
CP1H XA CPU Units CP1H-XA40DR-A 100 to
240 VAC
16 relay outputs 24 VDC
24 inputs
Memory capacity: 20 Ksteps
High-speed counters:
100 kHz, 4 counters
Pulse outputs: 2 outputs at
100 kHz, 2 outputs at 30 kHz
Analog inputs: 4
Analog outputs: 4
CP1H-XA40DT-D 24 VDC 16 transistor
outputs, sinking
CP1H-XA40DT1-D 16 transistor
outputs, sourc-
ing
CP1H Y CPU Unit CP1H-Y20DT-D 24 VDC 8 transistor out-
puts, sinking
24 VDC
12 inputs
Memory capacity: 20 Ksteps
High-speed counters: 2
counters at 1 MHz, 2 counters
at 100 kHz
Pulse outputs: 2 outputs at
1 MHz, 2 outputs at 30 kHz
Name and
appearance
Model Application Remarks
CX-Programmer
Ver. 6.1
WS02-CXPC1-E-
V61
Programming and monitoring
from a Windows environment
• The CP1H is supported by CX-Program-
mer version 6.1 or higher.
• Use an off-the-shelf USB cable to connect
the computer running the CX-Program-
mer to the USB port on the CP1H CPU
Unit.
