LCD Option Board Function Section 8-6

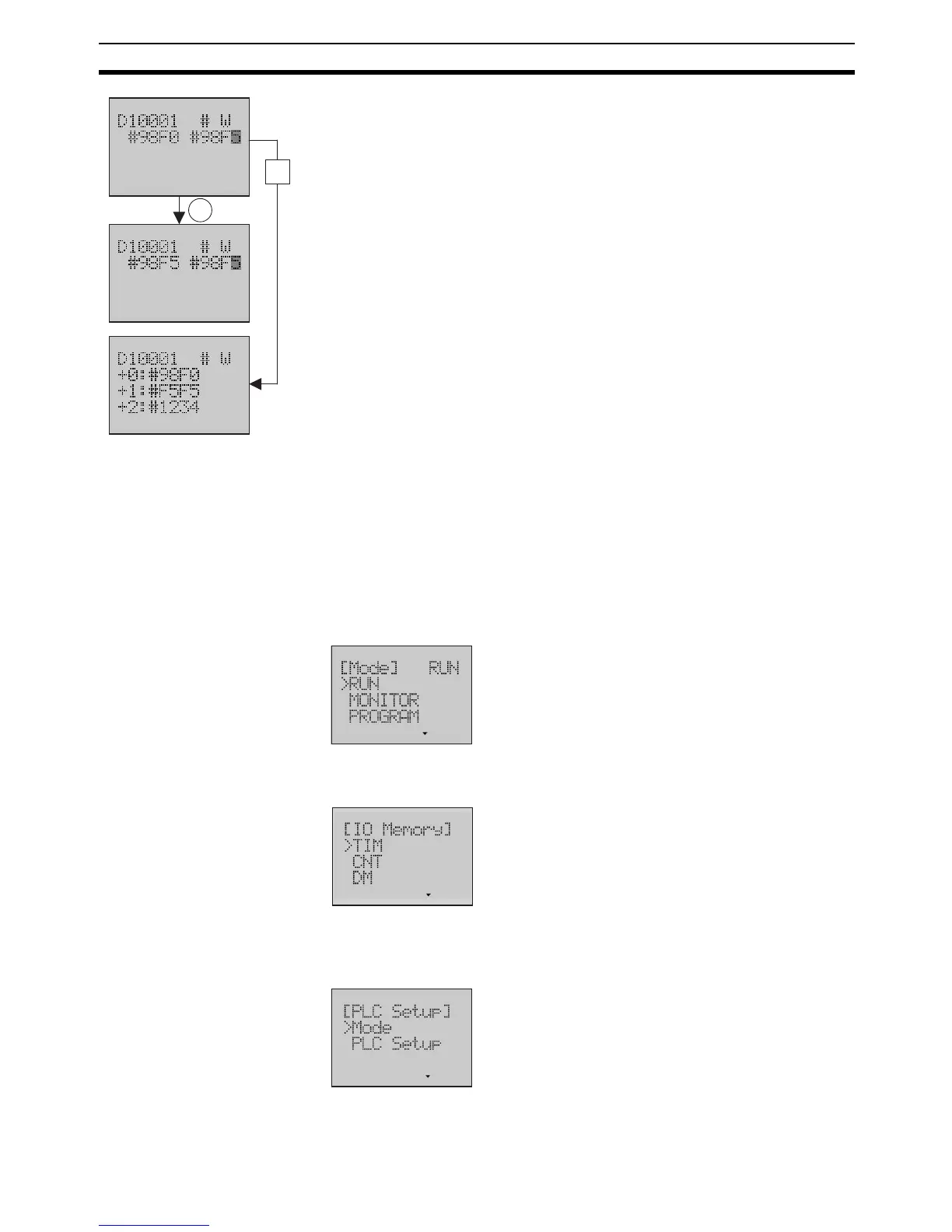

3. Use the Forward button to move the column cursor to the data of I/O memory.
Use the Down or Up button to change the value of each digit.
4. Press the OK button to save the setting.
Press the ESC button to return to the previous screen.
The data displayed in the Monitor Screen will be changed.
Press the
ESC button to cancel the setting and return to the previous screen.
8-6 LCD Option Board Function
This section describes the functions of the LCD Option Board including how to
monitor and make settings for the PLC.
8-6-1 Function Overview
PLC Mode Display the present PLC mode and change the PLC mode.
Refer to Page 470 for details.
I/O Memory Setting Monitor and change the data of I/O Memory.
Refer to Page 471 for details.
PLC Setup Monitor and change the PLC Setup, especially fast access the CPU Unit Operating
Mode.
Refer to Page 476 for details.
ESC
OK
To Next Page
