535
Installation and Initial Setup Section 9-8
9-8-4 Web Browser Setting Function
The Ethernet Option Board’s system settings can be set using the Web
browser of a personal computer or other device. The Ethernet Option Board’s
Web window is displayed by accessing the following URL from the Web
browser.
English page: http://(Ethernet Option Board’s IP address)/E00.htm
Japanese page: http://(Ethernet Option Board’s IP address)/J00.htm
Chinese page: http://(Ethernet Option Board’s IP address)/C00.htm
In this example, use the following procedure to set the IP address using Inter-
net Explorer version 6.0 and the Ethernet Option Board’s English Web pages.

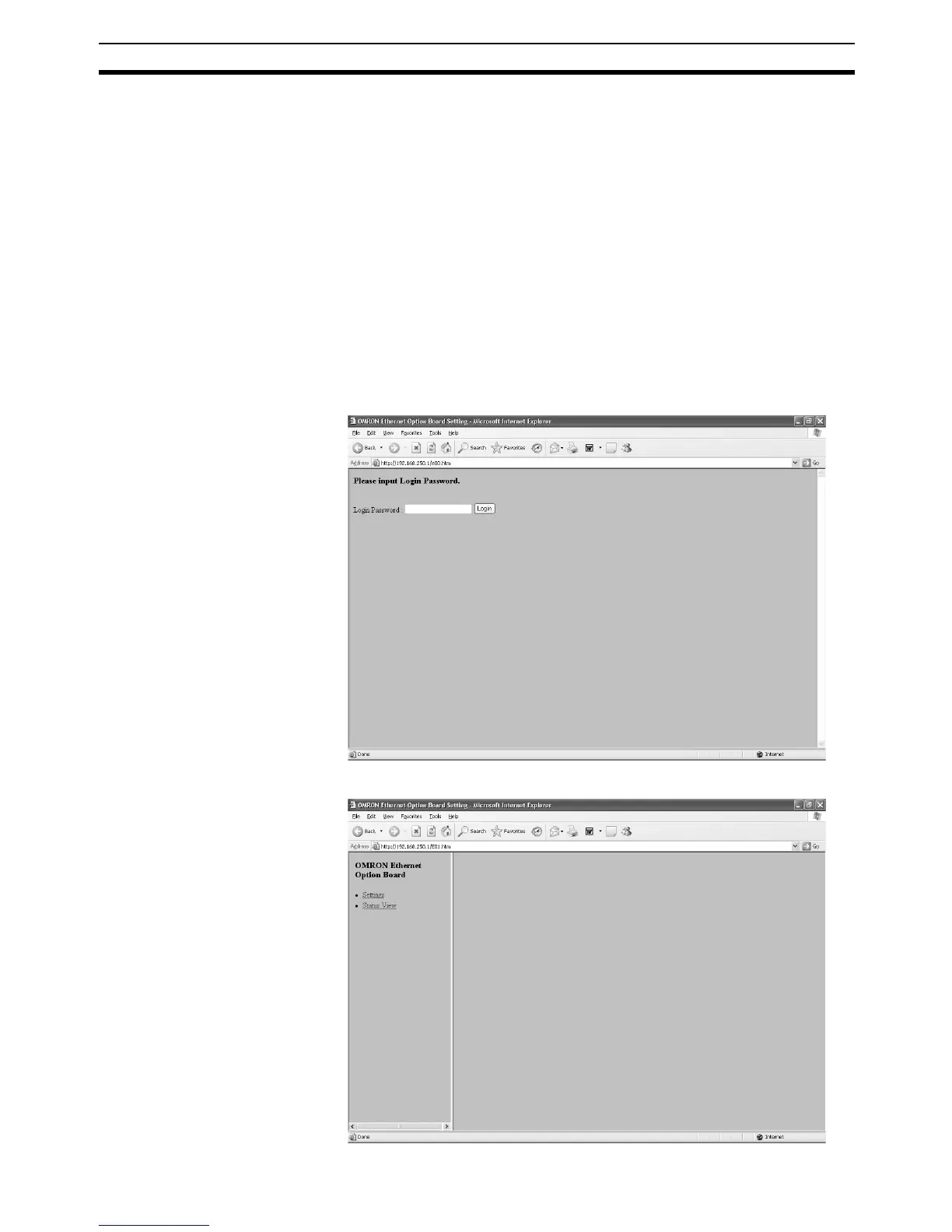

1,2,3... 1. Connect to the Ethernet Option Board from the Web browser using the
Ethernet Option Board’s default IP address.
http://192.168.250.1/E00.htm
2. Input the default password “ETHERNET” and click the Login Button.
To Next Page
