LCD Option Board Function Section 8-6

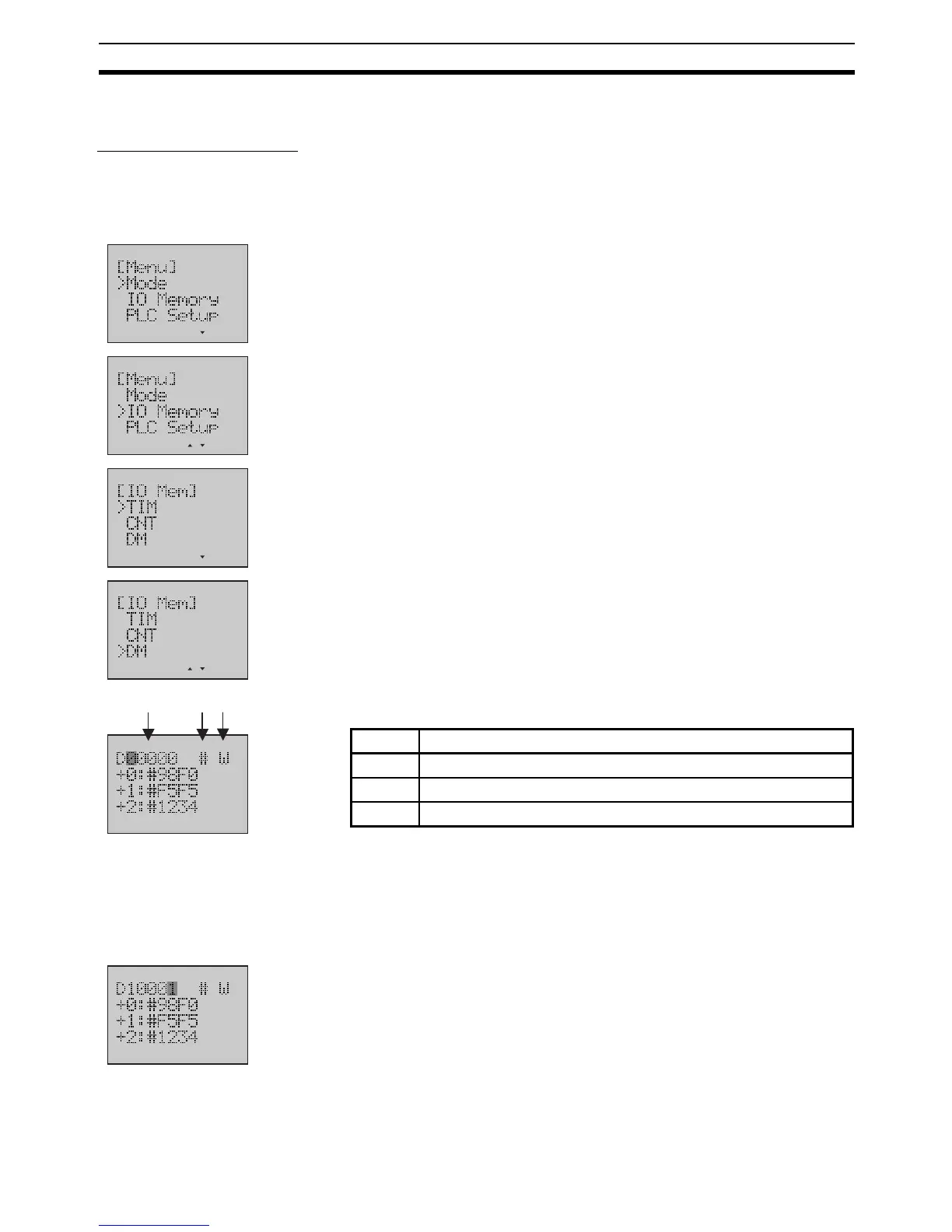

8-6-3 I/O Memory Setting
Displaying I/O Memory
Example Monitor two word data on D10001 to D10002, D10003 to D10004 with
unsigned decimal number.
1,2,3...
1. Switch to the Setup Mode.
2. Press the Down button to select IO Memory.
3. Press the OK button to enter the I/O Memory menu.
4. Press the Down button to select DM.
5. Press the OK button to enter the Monitor Screen of I/O memory DM.
The following table shows the setting items.
The first digit of the leading word address will be flashing.
The present setting is the default address.
Line 2 to 4 will display one word data on D00000, D00001, D00002 with
hex number.
6. Use the Forward button to move the column cursor to the digit to be set.
Use the Up button to change the leading word address to 10001.
ab
c
No. Description
a Leading word address
b Display format
c Data length
To Next Page
