Installation and Removing Section 8-4
8-4 Installation and Removing
Installation
The following processing explains how to install and remove a LCD Option Board.
!Caution Always turn OFF the power supply to the CPU Unit and wait until all the oper-
ation indicators go out before installing or removing the LCD Option Board.

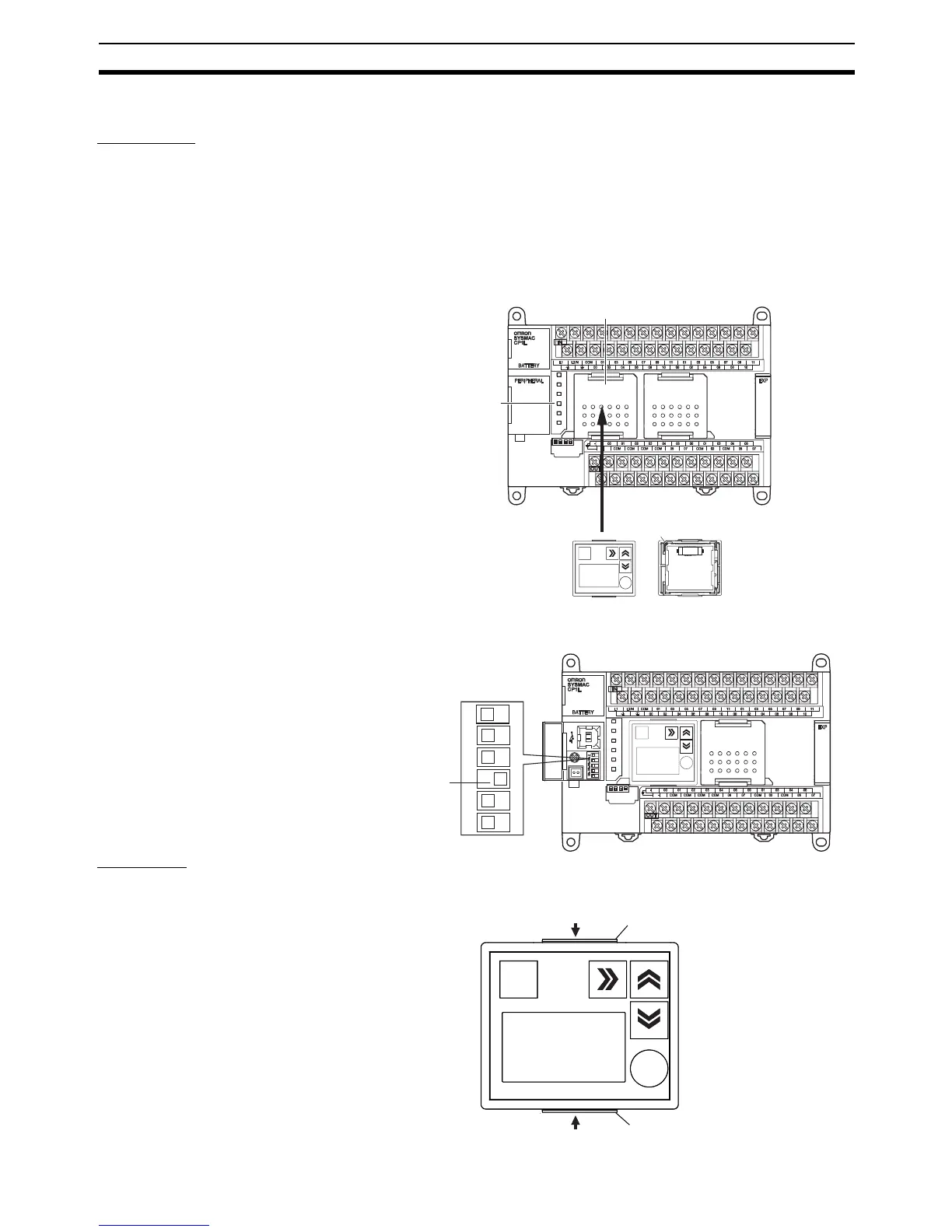

1,2,3... 1. Press the up/down lock levers on both sides of the Option Board slot cover
1 at the same time to unlock the cover, and then pull the cover out.
2. Check the alignment to make the corner cut of the LCD Option Board fit in
the Option Board slot 1, and firmly press the LCD Option Board in until it
snaps into place.
3. Switch DipSW4 of the CPU Unit to ON.
Note DipSW4 is OFF at shipment
Removing
Press the up/down lock levers on both sides of the LCD Option Board at the
same time to unlock the Option Board, and then pull it out.
