Basic Operation Section 8-5

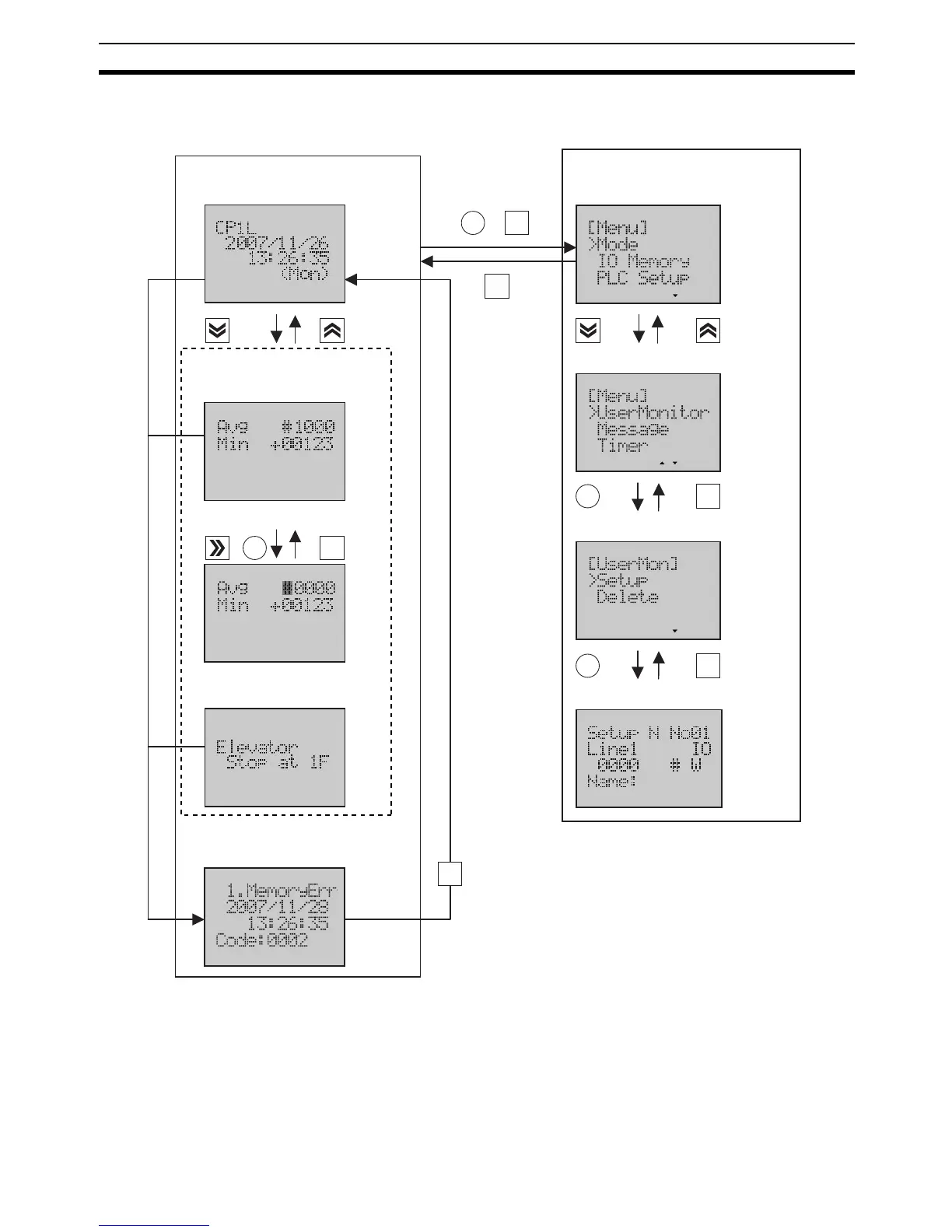

8-5-2 Screen Transitions
The screen transition of the LCD Option Board as shown in the following diagram.
Note 1. The screen will be displayed after making settings in the Setup Mode.
2. The Message Screen will disappeared automatically after control bit is
OFF.
3. In the Setup Mode, if there is no operation for 10 minutes, LCD will auto-
matically switch to the Monitor Mode.
Monitor Mode
Power to the CPU Unit turns ON
Display User Monitor Screen
(See note1)
Enter Data Change Screen
Setup Mode
Display main menu
Select the menu
Enter the submenu
Display Setup Screen
When control bit is ON
(See note1, 2)
When PLC error occurs
+
ESC
ESC
ESC
ESC
ESC
OK
OK
OK
+
ESC
OK
To Next Page
