14
Features and Main Functions Section 1-1
• Displays the progress of transfers between the CPU Unit and Memory
Cassette.
• Displays changes in values when using the analog control.
• Displays user-defined codes from special display instructions in the lad-
der program.

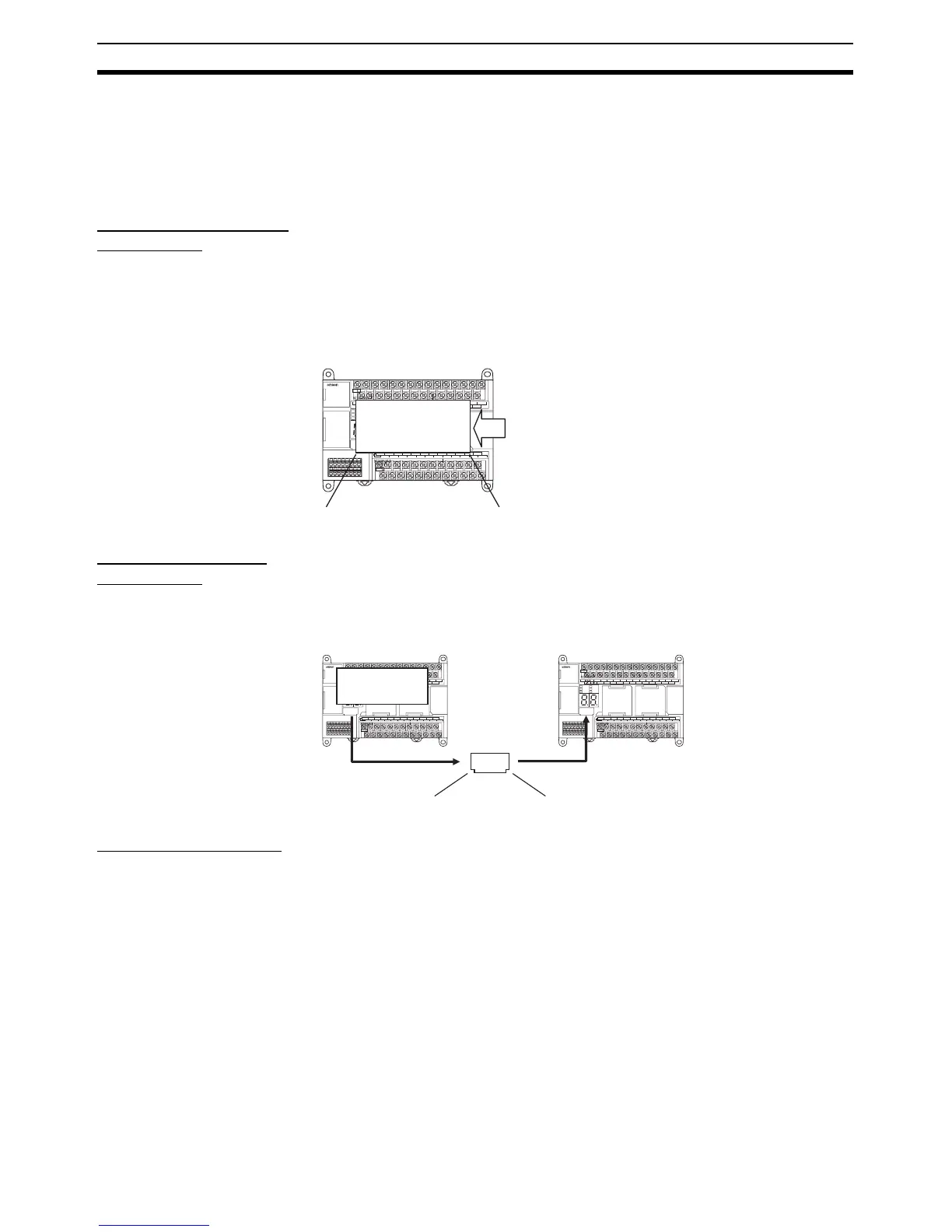

No-battery Operation
(All Models)
Programs, the PLC Setup, and other data can be automatically saved to the
CPU Unit's built-in flash memory. Moreover, DM Area data can be saved to
the flash memory and then used as initial data when the power is turned ON.
This allows programs and initial values (such as recipe setup data) in the DM
Area to be saved in the CPU Unit without the need to maintain a backup bat-
tery.
Memory Cassettes
(All Models)
Built-in flash memory data, such as programs and DM initial-value data, can
be stored on a Memory Cassette (optional) as backup data. In addition, pro-
grams and initial-value data can be easily copied to another CPU Unit using
the Memory Cassette to recreate the same system.
Security (All Models) A password registration function is provided for the CPU Unit to prevent unau-
thorized copy of ladder programs. If an attempt is made to read a ladder pro-
gram from a CX-Programmer, access to the program is denied if the password
that is entered does not match the registered password. If incorrect pass-
words are entered for five consecutive attempts, the CPU Unit does not
accept any more passwords for two hours.
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
RUN
INH
PRPHL
100CH 101CH
EXP
L1 L2/N COM
0CH 1CH
01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
CP1H CPU Unit
Built-in flash
memory
Data saving capability
without a battery
Pro
rams, DM initial values, etc.
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
RUN
INH
PRPHL
100CH 101CH
EXP
L1 L2/N COM
0CH 1CH
01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
MEMORY
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
RUN
INH
PRPHL
100CH 101CH
EXP
L1 L2/N COM
0CH 1CH
01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
CP1H CPU Unit Another CP1H CPU Unit
Built-in flash
memory
Memory
Cassette
Can be automatically
transferred at startup.
Programs, DM initial values, etc.
To Next Page
