System Configuration Section 1-2
Simultaneously
Connecting
Expansion I/O Units
and CJ-series Units
When Expansion Units or Expansion I/O Units are connected simultaneously
with CJ-series Special I/O Units or CPU Bus Units, they cannot be connected
in a straight line with the CP1H CPU Unit.

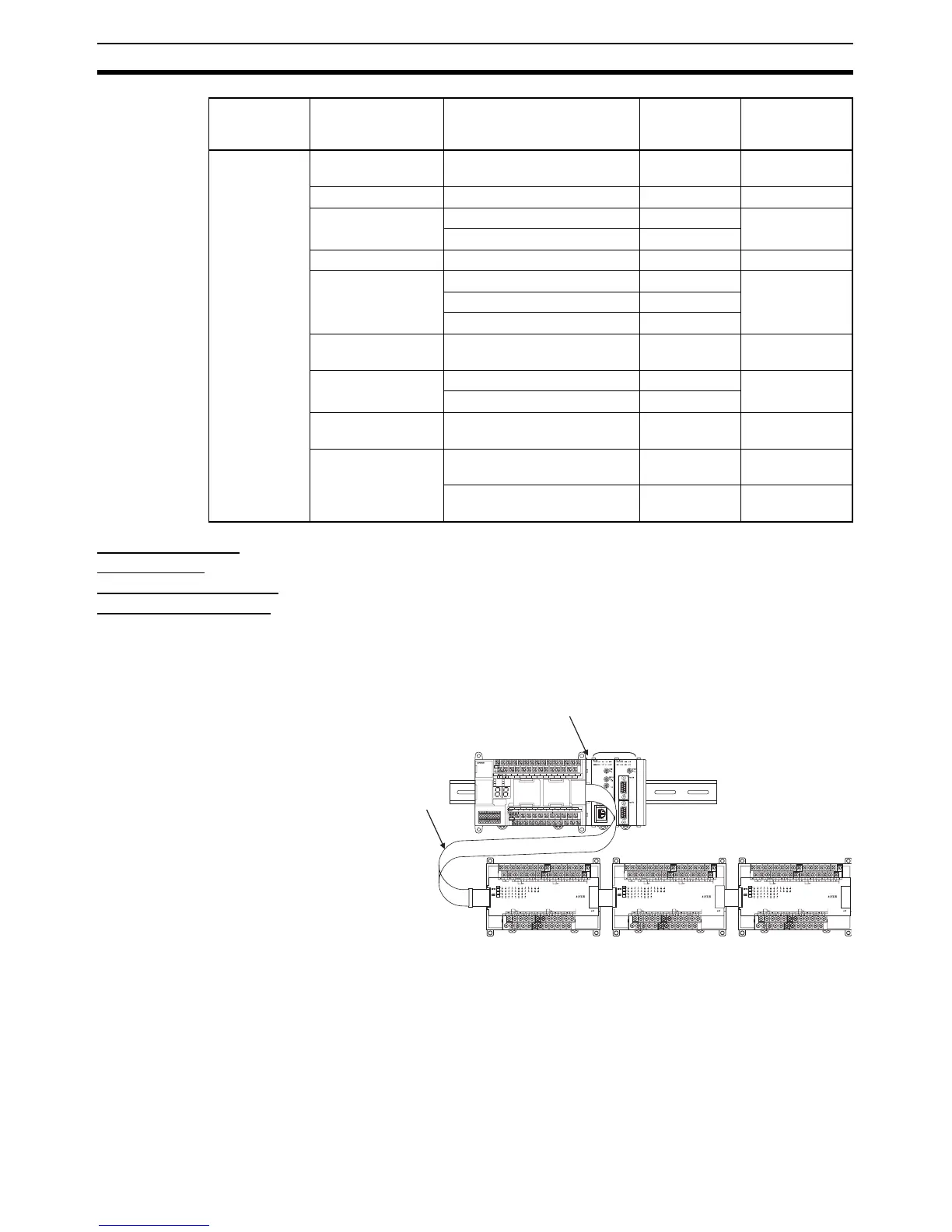

As shown in the diagram below, use a DIN Track to mount the CP1H CPU Unit
and CJ-series Units, and use CP1W-CN811 I/O Connecting Cable to connect
the Expansion Units or Expansion I/O Units.
Note Only one I/O Connecting Cable can be used per System.
Special I/O
Units
CompoBus/S Mas-
ter Unit
CJ1W-SRM21 0.15 A 66 g max.
Analog Input Units CJ1W-AD081/081-V1/041-V1 0.42 A 140 g max.
Analog Output Units CJ1W-DA041/021 0.12 A 150 g max.
CJ1W-DA08V 0.14 A
Analog I/O Unit CJ1W-MAD42 0.58 A 150 g max.
Process Input Units CJ1W-PTS51/52 0.25 A 150 g max.
CJ1W-PTS15/16 0.18 A
CJ1W-PDC15 0.18 A
Temperature Con-
trol Units
CJ1W-TC@@@ 0.25 A 150 g max.
Position Control
Units
CJ1W-NC113/133/213/233 0.25 A 150 g max.
CJ1W-NC413/433 0.36 A
High-speed Counter
Unit
CJ1W-CT021 0.28 A 100 g max.
ID Sensor Units CJ1W-V600C11 0.26 A (0.12 A
at 24 VDC)
100 g max.
CJ1W-V600C12 0.32 A (0.24 A
at 24 VDC)
130 g max.
Classification Unit name Model Current
consumption
(5 VDC)
Weight
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
CP1H
CJ Unit Adapter
CJ-series Units
CP1W-CN811
I/O Connecting Cable
(0.8 m)
