Omron CP1H CPU

250
Pulse Outputs Section 5-3

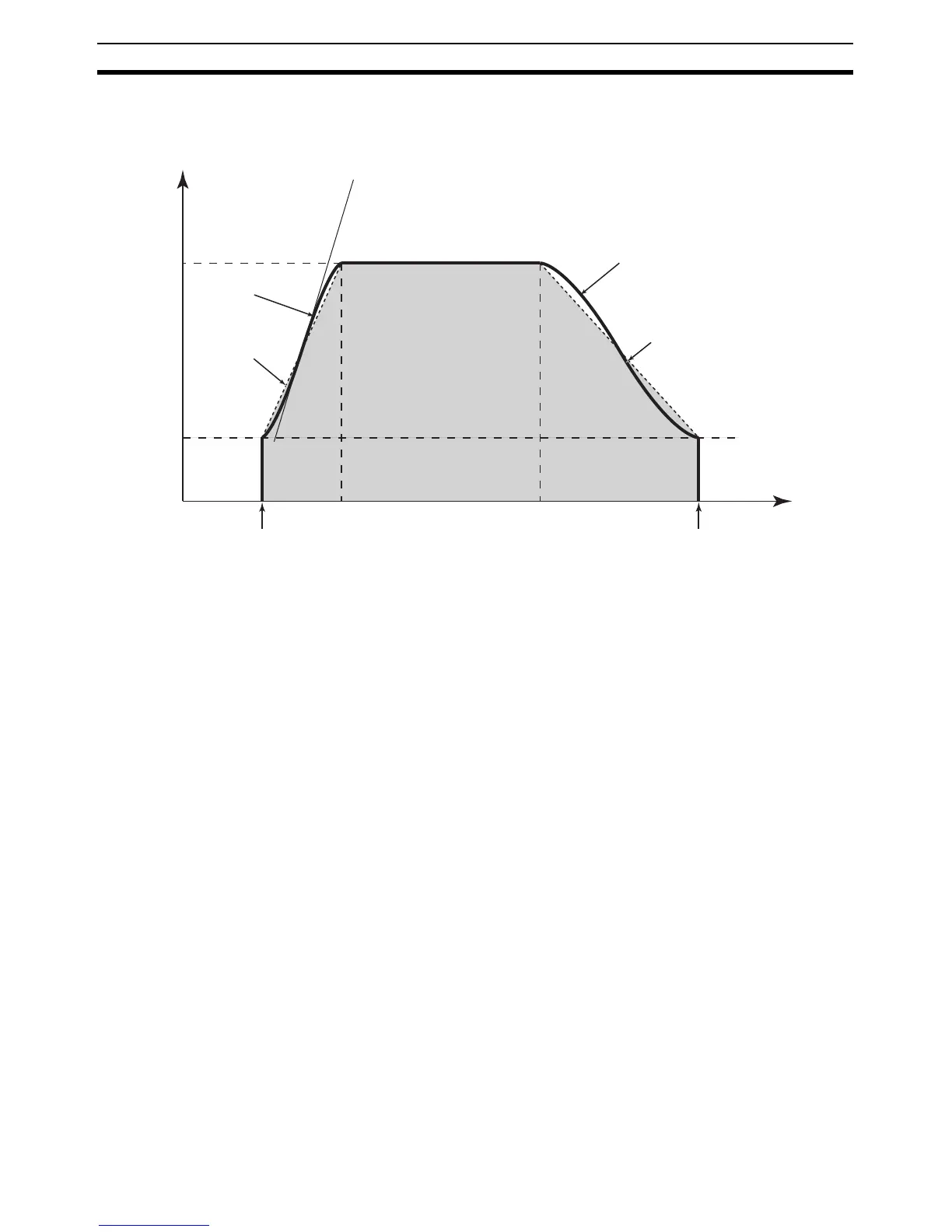

Output Pattern The output pattern for S-curve acceleration/deceleration is shown below.
Example for PLS2(887)
The same type of S-curve acceleration/deceleration can be used for
ACC(888) as well.
Note The curve for S-curve acceleration/deceleration is formed by applying a cubic
equation to the straight line of the set acceleration/deceleration rates (a cubic
polynomial approximation). The curve’s parameters cannot be changed.
The maximum acceleration will be 1.5 times that of trapezoidal acceleration/
deceleration for the same acceleration/deceleration rate.
Stop frequenc
y
Time
Starting
frequency
Target
frequency
Pulse frequency
Set
acceleration
Specified
number of
pulses
PLS2
executed
Target frequency
reached
Deceleration point
Set
deceleration
Output stops
Acceleration
specified
for S-curve
acceleration
Deceleration
specified
for S-curve
deceleration
Max. acceleration
is 1.5 times
set acceleration
