318
Pulse Outputs Section 5-3
Preparation

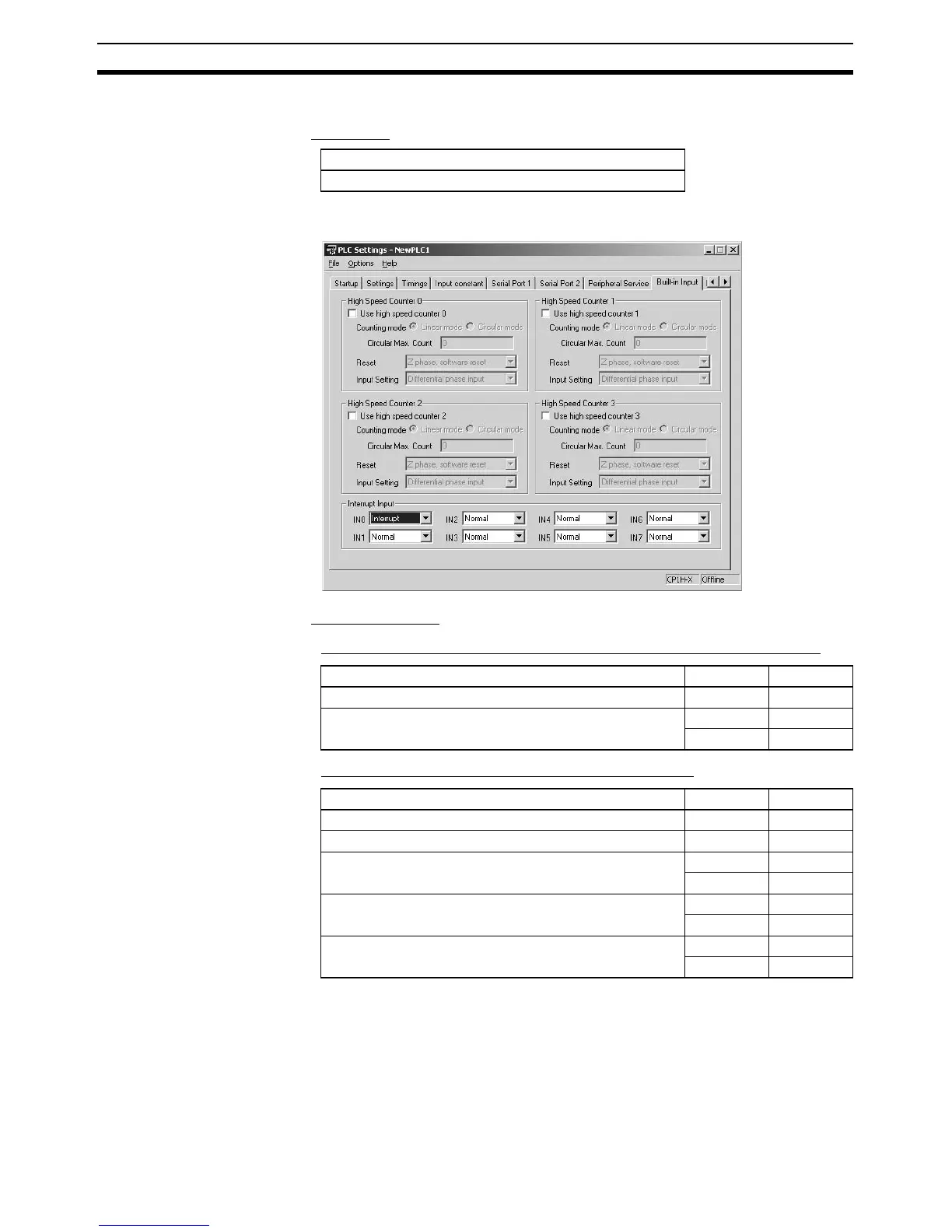

â– PLC Setup
Note The interrupt input setting is read when the power supply is turned ON.
â– DM Area Settings
Speed Control Settings to Feed Wrapping Material to Initial Position
Positioning Control Settings for Wrapping Material
Setting details
Enable using built-in input IN0 as an interrupt input.
Setting details Address Data
Acceleration rate: 1,000 Hz/4 ms D0 #03E8
Target frequency: 10,000 Hz D1 #2710
D2 #0000
Setting details Address Data
Acceleration rate: 500 Hz/4 ms D10 #01F4
Deceleration rate: 500 Hz/4 ms D11 #01F4
Target frequency: 10,000 Hz D12 #2710
D13 #0000
Number of output pulses: 5,000 pulses D14 #1388
D15 #0000
Starting frequency: 0 Hz D16 #0000
D17 #0000
To Next Page
