Analog Output Units Section 7-3

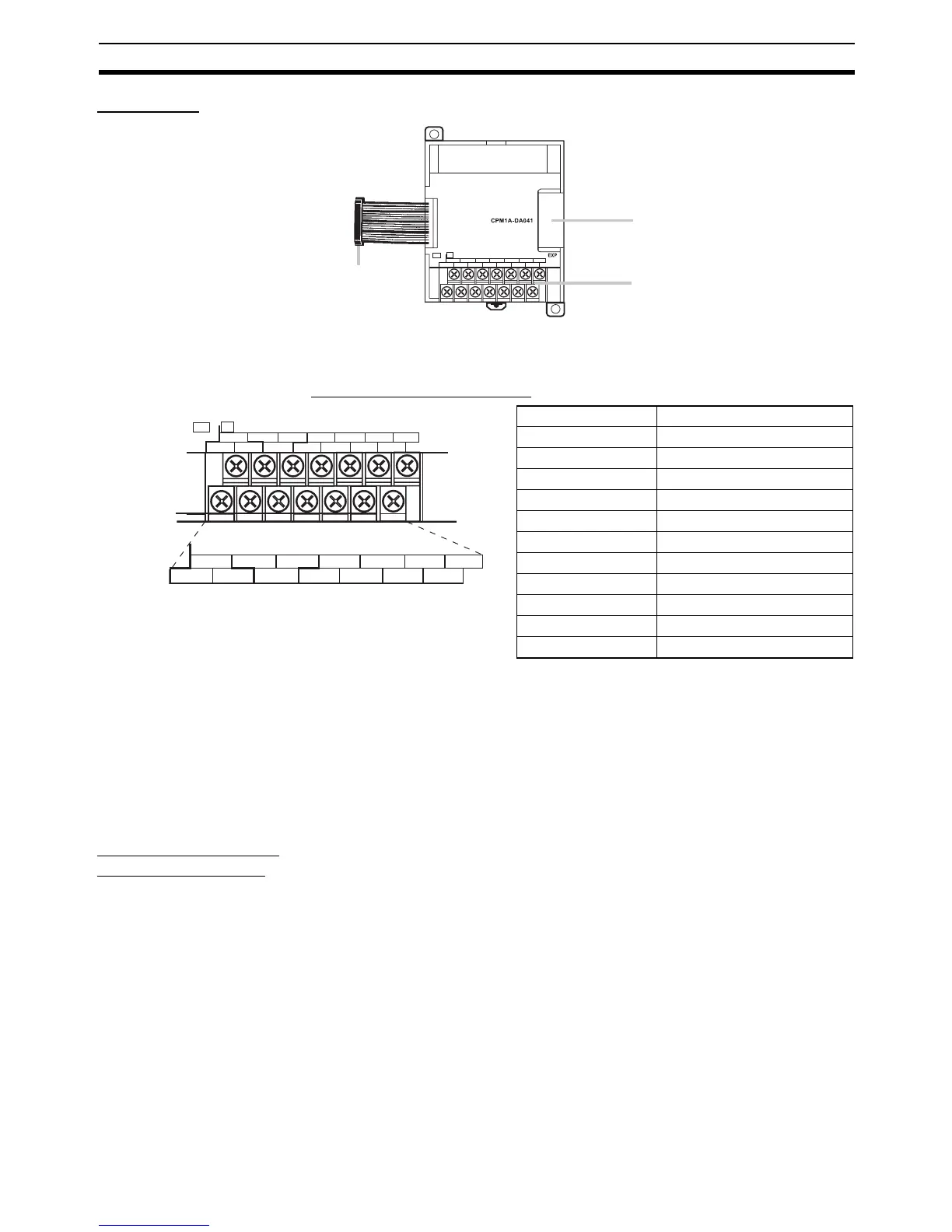

Part Names CP1W-DA041/CPM1A-DA041
1. Analog Output Terminals
Connected to analog input devices.
■ Output Terminal Arrangement
2. Expansion I/O Connecting Cable
Connected to the CPU Unit or previous Expansion Unit. The cable is pro-
vided with the Unit and cannot be removed.
Note Do not touch the cables during operation. Static electricity may cause operat-
ing errors.
3. Expansion Connector
Connected to the next Expansion Unit or Expansion I/O Unit.
Main Analog Output
Unit Specifications
Analog Output Units are connected to a CP1H CPU Unit. A maximum of
seven Units can be connected, including other Expansion Units and Expan-
sion I/O Units.
(3) Expansion connector
(1) Analog output terminals
CH
I OUT1 I OUT3
I OUT2
VOUT1
VOUT2
VOUT3
COM1
COM2
I OUT4
VOUT4
COM4
NC
AG
COM3
OUT
(2) Expansion I/O
connecting cable
V OUT1 Voltage output 1
I OUT1 Current output 1
COM1 Output common 1
V OUT2 Voltage output 2
I OUT2 Current output 2
COM2 Output common 2
V OUT3 Voltage output 3
I OUT3 Current output 3
COM3 Output common 3
V OUT4 Voltage output 4
I OUT4 Current output 4
COM4 Output common 4
CH
I OUT1 I OUT3
I OUT2
VOUT1
VOUT2
VOUT3
COM1
COM2
I OUT4
VOUT4
COM4
NC
AG
COM3
I OUT1 I OUT3
I OUT2
VOUT1
VOUT2
VOUT3
COM1
COM2
I OUT4
VOUT4
COM4
NC
AG
COM3
OUT
