12
Features and Main Functions Section 1-1

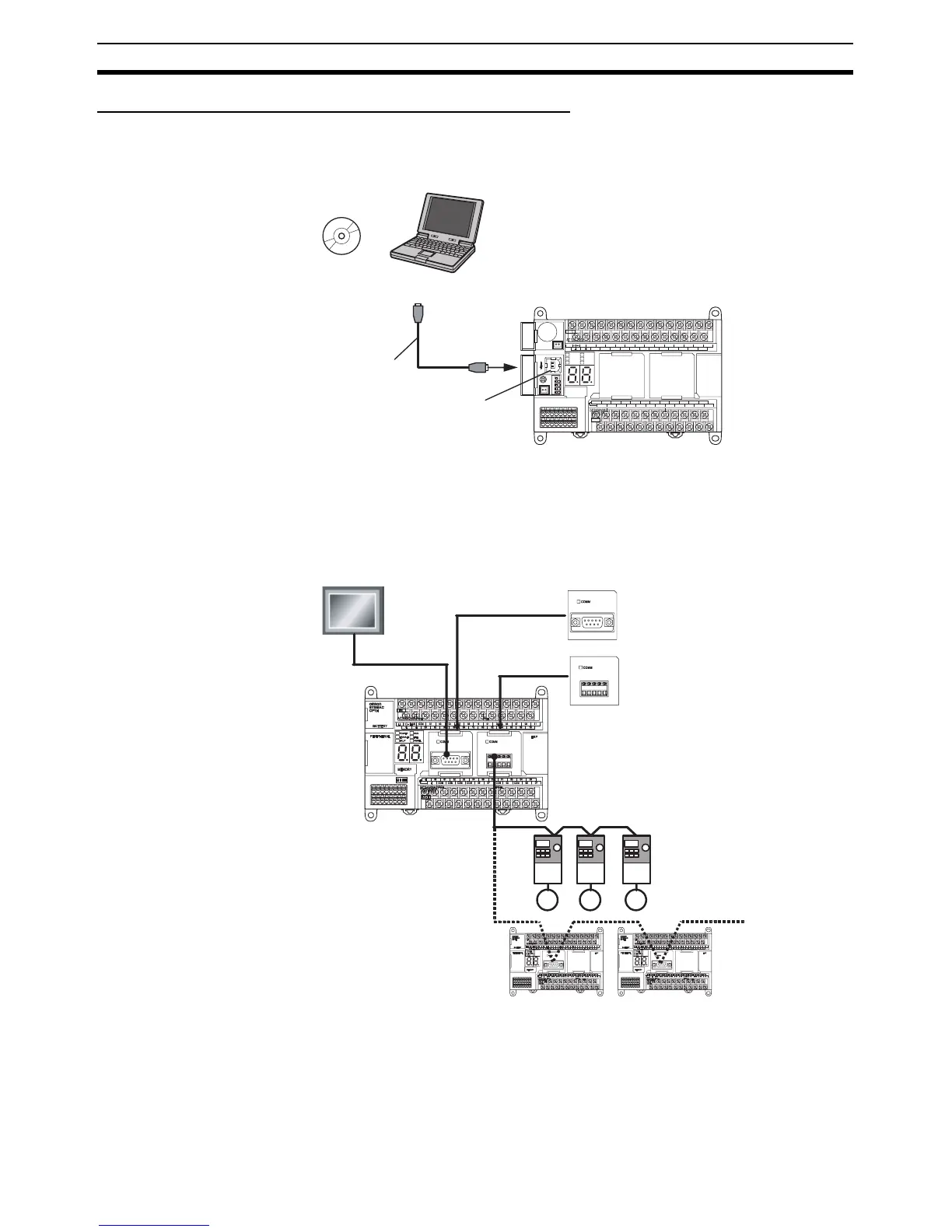

Connectability with Various Components (All Models)
USB Port for
Programming Devices
CX-One Support Software, such as the CX-Programmer, connects from the
USB port on a computer to the CP1H built-in peripheral USB port via commer-
cially available USB cable.
Expansion Capability for
Two Serial Ports (All
Models)
A maximum of two Serial Communications Boards each with one RS-232C
port or one RS-422A/485 port can be added. With a total of up to three ports,
including the USB port, this makes it possible to simultaneously connect a
computer, PT, CP1H, and/or various components, such as an Inverter, Tem-
perature Controller, or Smart Sensor.
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
Personal computer
CX-One (ver. 1.1 or higher)
(e.g., CX-Programmer ver. 6.1 or higher)
USB port
USB cable
Peripheral
USB port
RS-232C
RS-422A
CP1H
NS-series PT, personal computer, bar code reader, etc.
CP1W-CIF01 RS-232C
Option Board
CP1W-CIF11/CIF12
RS-422A/485 Option Board
Inverter, etc. (See note 1.)
CP1H (or CJ1M)
(See note 2.)
1
2
3
4
ON
To Next Page
