LCD Option Board Function Section 8-6

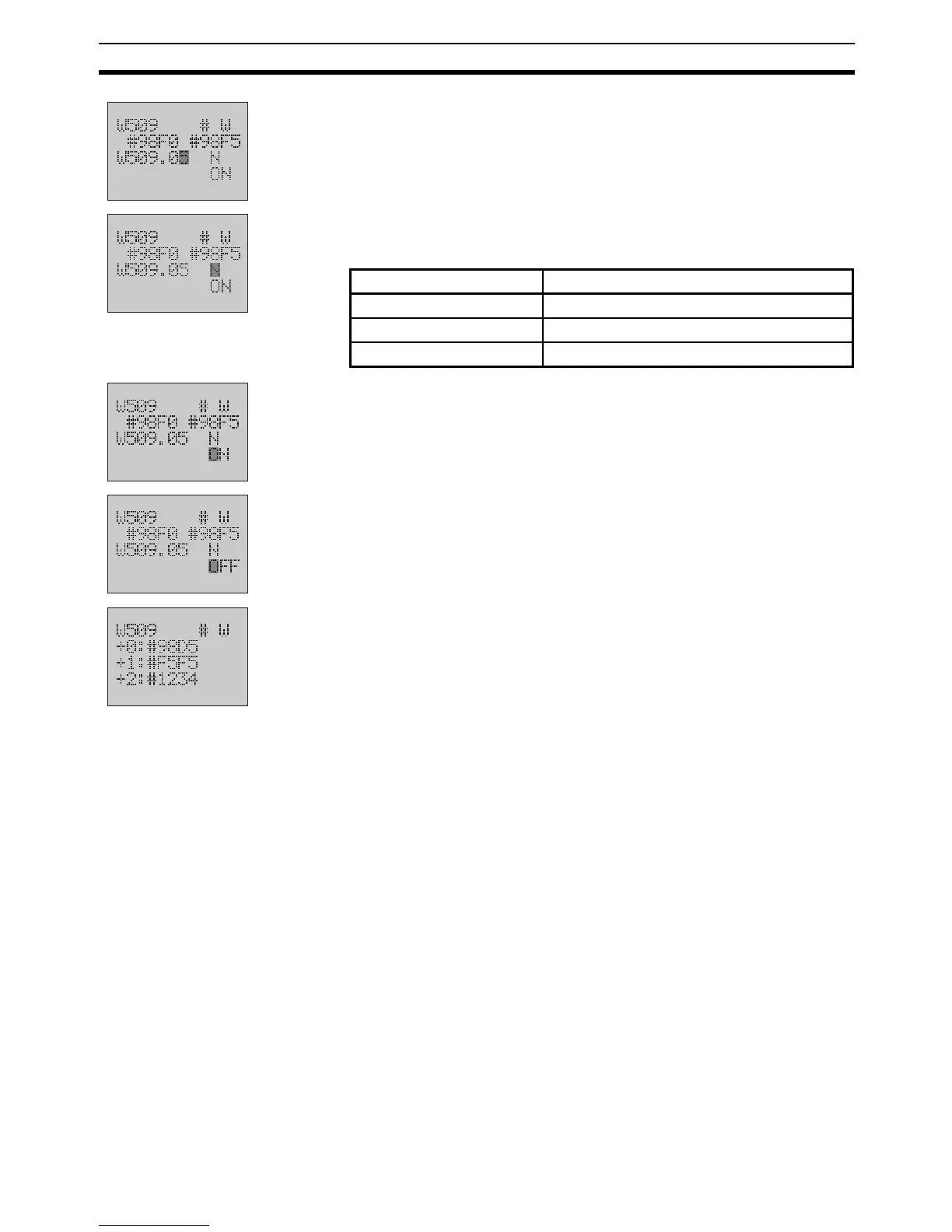

14. Use the Up button to change the bit address to 05.
15. Use the Forward button to move the column cursor to the bit flag position.
The present setting is the default setting.
Select the bit flag in the following table.
16. Use the Forward button to move the column cursor to the bit state position.
The present state is ON. The state ON or OFF is according to PLC.
17. Press the Down or Up button to select the bit state OFF.
Note If bit flag is S or R, the setting of bit state is invalid.
18. Press the OK button to save the setting.
Press the ESC button to return to the previous screen.
Then the data on W509 displayed in the Monitor Screen will be 98D5.
Bit flag Meaning
NNormal
S Force to SET
R Force to RESET
